P0116





4GR-FSE ENGINE CONTROL: SFI SYSTEM: P0116: Engine Coolant Temperature Circuit Range / Performance Problem
P0116 - Engine Coolant Temperature Circuit Range / Performance Problem

DESCRIPTION

A thermistor, whose resistance value varies according to the engine coolant temperature, is built into the engine coolant temperature sensor.

The structure of the sensor and its connection to the ECM are similar to those of the intake air temperature sensor.

HINT
When any of DTCs P0115, P0117 or P0118 are set, the ECM enters fail-safe mode. During fail-safe mode, the engine coolant temperature is estimated to be 80°C (176°F) by the ECM. Fail-safe mode continues until a pass condition is detected.

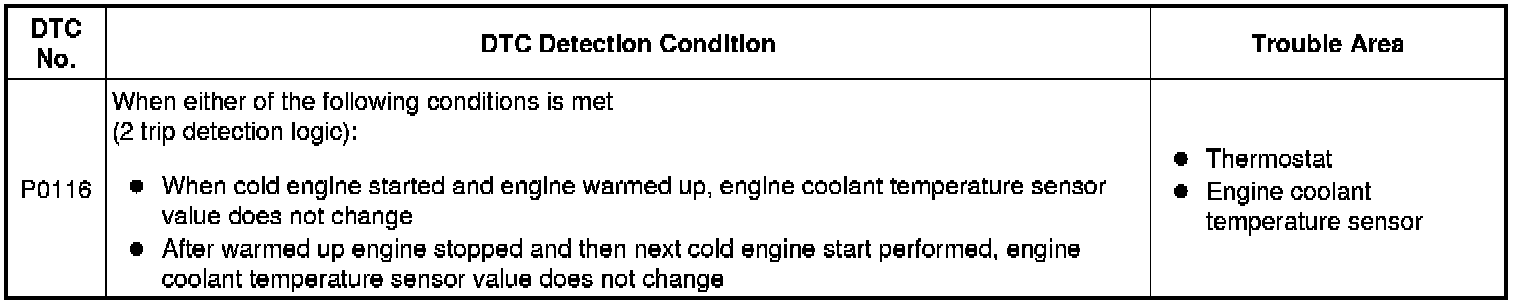

MONITOR DESCRIPTION

Engine Coolant Temperature Sensor Cold Start Monitor

When a cold engine start is performed and then the engine is warmed up, if the engine coolant temperature sensor value does not change, it is determined that a malfunction has occurred. If this is detected in 2 consecutive driving cycles, the MIL is illuminated and a DTC is set.

Engine Coolant Temperature Sensor Soak Monitor

If the engine coolant temperature sensor value does not change after the warmed up engine is stopped and then the next cold engine start is performed, it is determined that a malfunction has occurred. If this is detected in 2 consecutive driving cycles, the MIL is illuminated and a DTC is set.

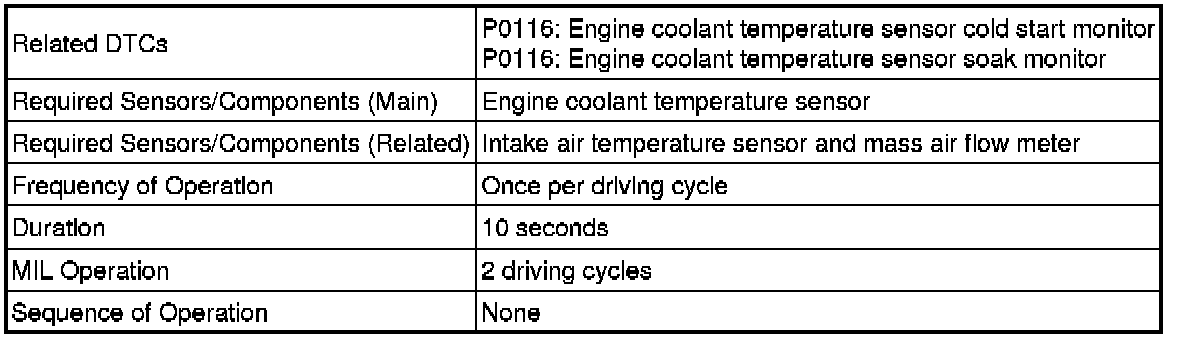

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS

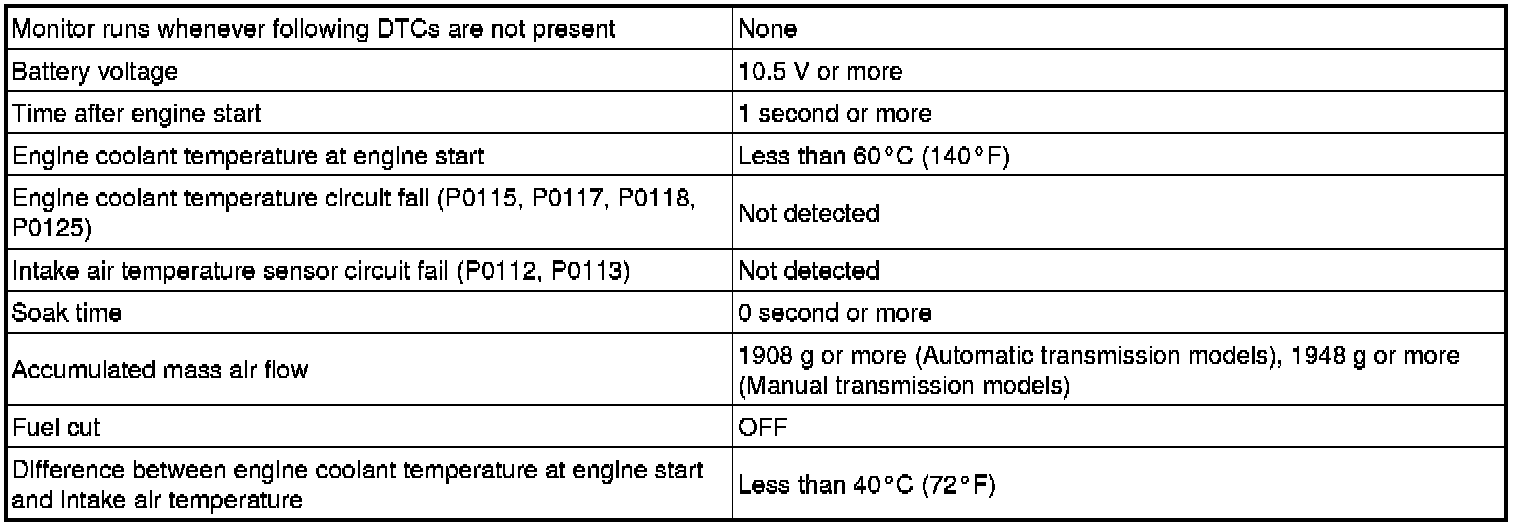

Engine Coolant Temperature Sensor Cold Start Monitor

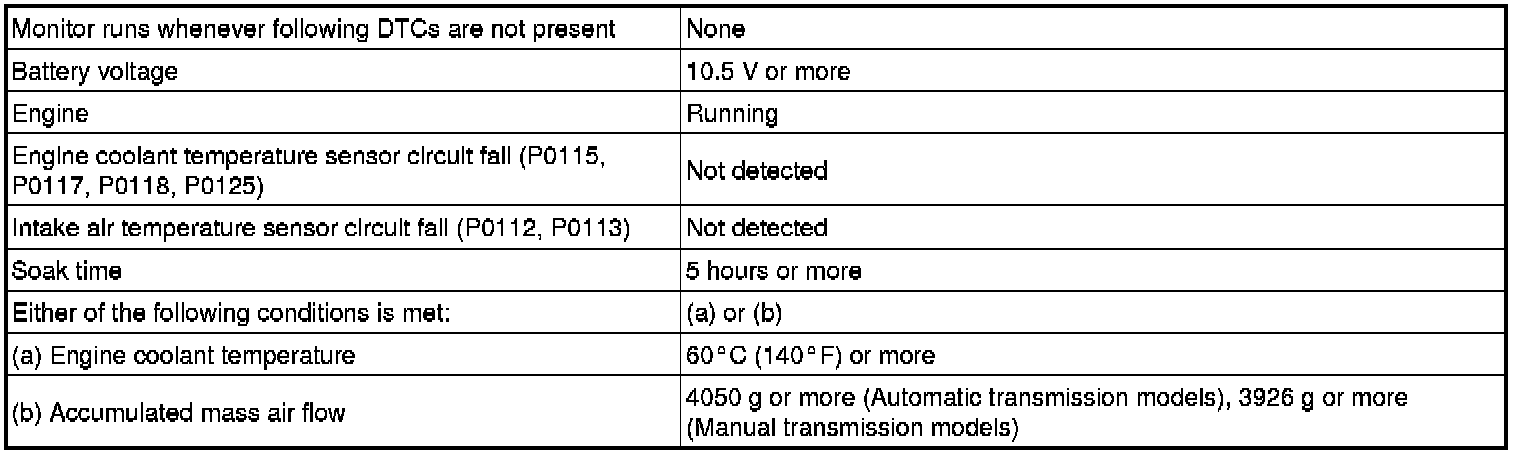

Engine Coolant Temperature Sensor Soak Monitor





TYPICAL MALFUNCTION THRESHOLDS

Engine Coolant Temperature Sensor Cold Start Monitor





Engine Coolant Temperature Sensor Soak Monitor





COMPONENT OPERATING RANGE





CONFIRMATION DRIVING PATTERN





- Connect the Techstream to the DLC3.

- Turn the engine switch on (IG) and turn the Techstream on.

- Enter the following menus: Powertrain / Engine / Data List / Coolant Temp.

- Check that the coolant temperature is 60°C (140°F) or less.

- Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure) DTC Check / Clear.

- Turn the engine switch off.

- Turn the engine switch on (IG) and turn the Techstream on [A].

- Start the engine and idle it for 5 minutes or more [B].

HINT
If the engine coolant temperature does not change by 5°C (9°F) or more, the engine coolant temperature sensor is malfunctioning. It is not necessary to continue this procedure.

- Enter the following menus: Powertrain / Engine / Utility / All Readiness.

- Input the DTC: P0116.

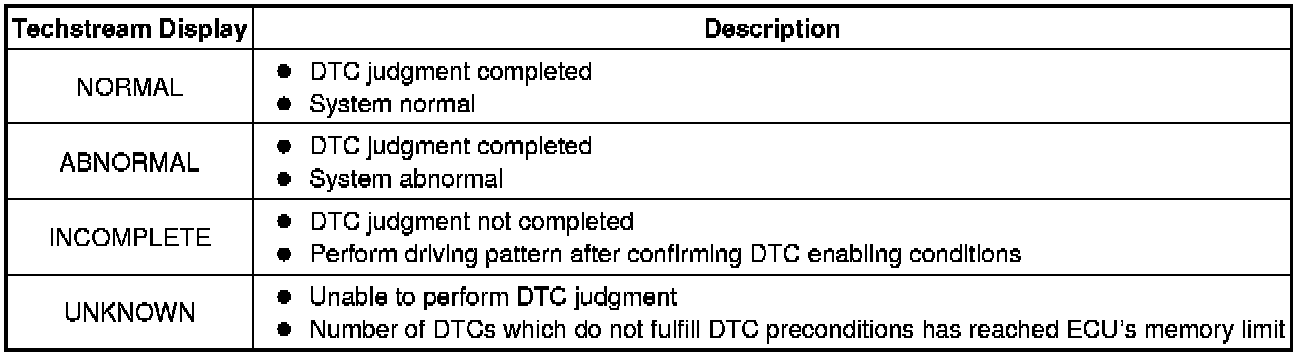

- Check the DTC judgment result [C].





CAUTION:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.

HINT
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [D] and [E].
- Drive the vehicle at 25 mph (40 km/h) or more for a total of 5 minutes or more [D].

HINT
In the event of the drive pattern being interrupted (possibly due to factors such as traffic conditions), the drive pattern can be resumed.

- Check the DTC judgment result again [E].

HINT
If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [D] and [E] again.

- If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.

- Read Pending DTCs.

HINT
If a pending DTC is output, the system is malfunctioning.

- If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs DTC Check / Clear.

HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.
INSPECTION PROCEDURE

HINT
- If any of DTCs P0115, P0117 and P0118 are set simultaneously with DTC P0116, the engine coolant temperature sensor may have an open or a short circuit. Troubleshoot those DTCs first.
- Read freeze frame data using the Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.
PROCEDURE

1. CHECK ANY OTHER DTC OUTPUT (IN ADDITION TO DTC P0116)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Trouble Codes.

(e) Read the DTCs.

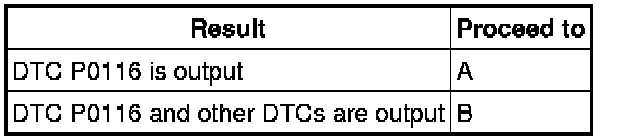

Result:





HINT
If any DTCs other than P0116 are output, troubleshoot those DTCs first.

B -- GO TO DTC CHART SFI System
A -- Continue to next step.

2. INSPECT WATER INLET SUB-ASSEMBLY WITH THERMOSTAT

(a) Remove the thermostat Removal.

(b) Check the valve opening temperature of the thermostat.

Standard:

80 to 84°C (176 to 183°F)

HINT
In addition to the above check, confirm that the valve is completely closed when the temperature is below the standard.

(c) Reinstall the thermostat Installation.

NG -- REPLACE WATER INLET SUB-ASSEMBLY WITH THERMOSTAT Removal

OK -- REPLACE ENGINE COOLANT TEMPERATURE SENSOR
