4GR-FSE ENGINE CONTROL: SFI SYSTEM: P0016,P0018: Crankshaft Position - Camshaft Position Correlation (Bank 1 Sensor A)
P0018 - Crankshaft Position - Camshaft Position Correlation (Bank 2 Sensor A)

DESCRIPTION

The Variable Valve Timing (VVT) system includes the ECM, camshaft timing oil control valve assembly and VVT controller. The ECM sends a target duty-cycle control signal to the camshaft timing oil control valve assembly. This control signal regulates the oil pressure supplied to the VVT controller. Camshaft timing control is performed according to engine operating conditions such as intake air volume, throttle valve position and engine coolant temperature. The ECM controls the camshaft timing oil control valve assembly, based on the signals transmitted from several sensors. The VVT controller regulates the intake camshaft angle using oil pressure through the camshaft timing oil control valve assembly. As a result, the relative positions of the camshaft and crankshaft are optimized, the engine torque and fuel economy improve, and the exhaust emissions decrease under overall driving conditions. The ECM detects the actual intake valve timing using signals from the camshaft and crankshaft position sensors, and performs feedback control. This is how the target intake valve timing is verified by the ECM.

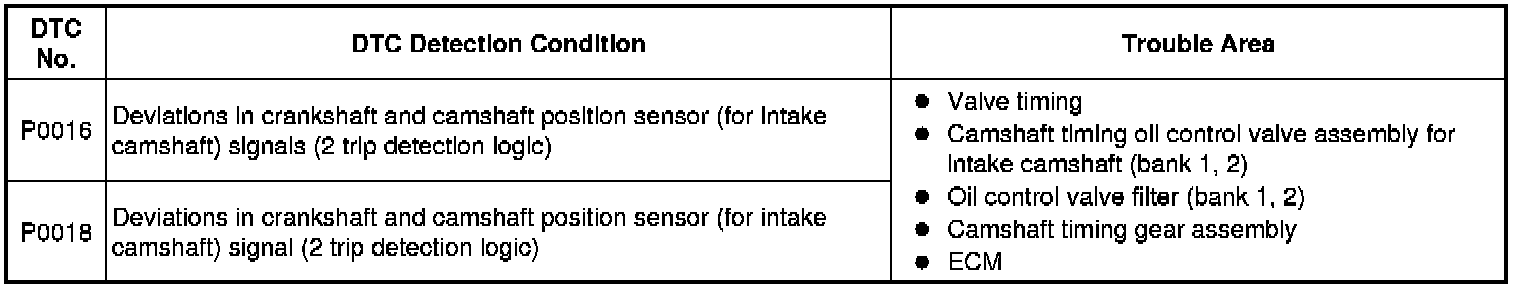

MONITOR DESCRIPTION

The ECM optimizes the valve timing by using the Variable Valve Timing (VVT) system to control the intake camshaft. The VVT system includes the ECM, the camshaft timing oil control valve assembly and the VVT controller.

The ECM sends a target duty-cycle control signal to the camshaft timing oil control valve assembly. This control signal regulates the oil pressure applied to the VVT controller. The VVT controller can advance or retard the intake camshaft. The ECM calibrates the intake valve timing by setting the intake camshaft to the most retarded angle while the engine is idling. The ECM closes the camshaft timing oil control valve assembly to retard the cam. The ECM stores this value as the VVT learning value. When the difference between the target and actual intake valve timing is 5°CA (crankshaft angle) or less, the ECM stores it.

If the VVT learning value matches the following conditions, the ECM determines the existence of a malfunction in the VVT system, and sets the DTC.

- The VVT learning value: Less than 18.5°CA, or more than 43.5°CA.

- The above condition continues for 18 seconds or more.

This DTC indicates that the intake camshaft has been installed toward the crankshaft at an incorrect angle, caused by factors such as the timing chain having jumped a tooth.

This monitor begins to run after the engine has idled for 5 minutes.

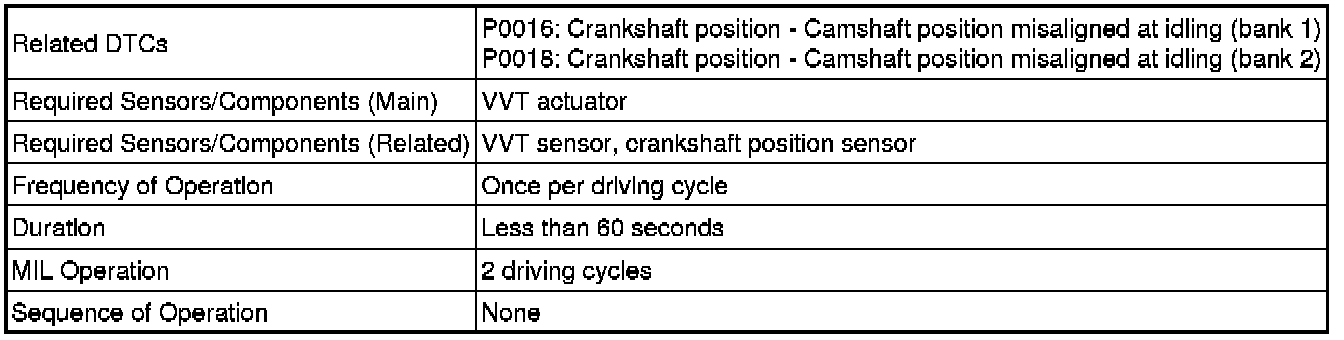

MONITOR STRATEGY

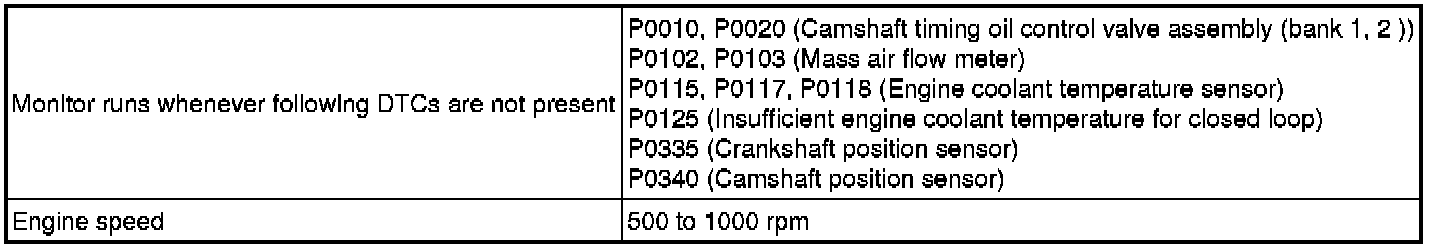

TYPICAL ENABLING CONDITIONS

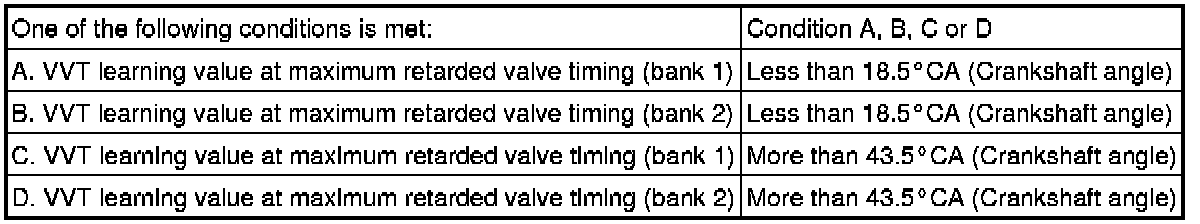

TYPICAL MALFUNCTION THRESHOLDS





MONITOR RESULT

Refer to Checking Monitor Status Mode 6 Data.

WIRING DIAGRAM





CONFIRMATION DRIVING PATTERN





- Connect the Techstream to the DLC3.

- Turn the engine switch on (IG) and turn the Techstream on.

- Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure) DTC Check / Clear.

- Turn the engine switch off.

- Turn the engine switch on (IG) and turn the Techstream on [A].

- Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or more [B].

- Idle the engine for 5 minutes or more [C].

- Enter the following menus: Powertrain / Engine / Utility / All Readiness.

- Input the DTC: P0016 or P0018.

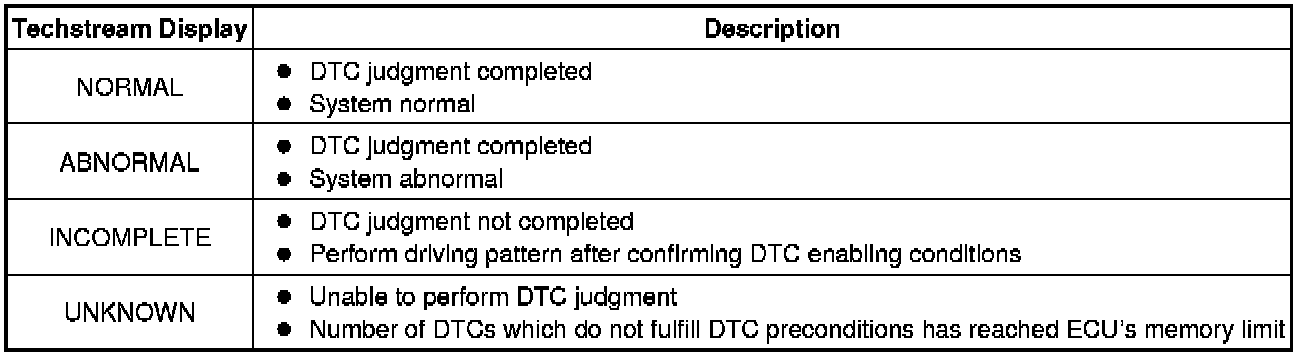

- Check the DTC judgment result [D].





CAUTION:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.

HINT
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [E] through [G].
- Drive the vehicle for 2 to 3 minutes [E].

- Idle the engine for 5 minutes or more [F].

- Enter the following menus: Powertrain / Engine / Utility / All Readiness.

- Input the DTC: P0016 or P0018.

- Check the DTC judgment result [G].

- If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.

- Read Pending DTCs [G].

HINT
If a pending DTC is output, the system is malfunctioning.

- If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs DTC Check / Clear.

HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.
INSPECTION PROCEDURE

HINT
Read freeze frame data using the Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P0016 OR P0018)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Trouble Codes.

(e) Read the DTCs.

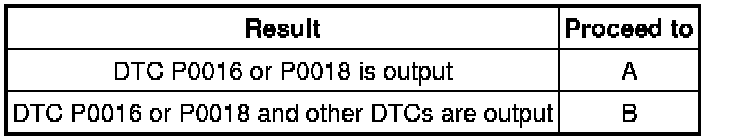

Result:





HINT
If any DTCs other than P0016 or P0018 are output, troubleshoot those DTCs first.

B -- GO TO DTC CHART SFI System
A -- Continue to next step.

2. PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE VVT SYSTEM (BANK 1 OR 2)) P0011

NG -- CHECK VALVE TIMING (CHECK FOR LOOSE OR JUMPED TEETH ON TIMING CHAIN)
OK -- Continue to next step.

3. CHECK WHETHER DTC OUTPUT RECURS (P0016 OR P0018)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Clear the DTCs DTC Check / Clear.

(e) Turn the engine switch off.

(f) Turn the engine switch on (IG) and turn the Techstream on.

(g) Start the engine and warm it up.

(h) Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern.

(i) Enter the following menus: Powertrain / Engine / Utility / All Readiness.

(j) Input the DTC: P0016 or P0018.

(k) Check the DTC judgment result.

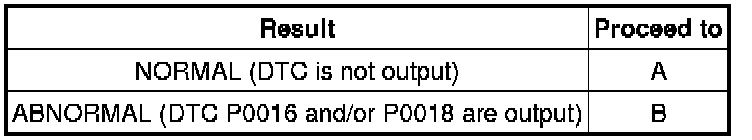

Result:





HINT
DTC P0016 or P0018 may be stored when foreign objects in the engine oil are caught in some parts of the system. The DTC will remain set even if the system returns to normal after a short time. Those foreign objects may then be captured by the oil filter.

B -- CHECK VALVE TIMING (CHECK FOR LOOSE OR JUMPED TEETH ON TIMING CHAIN)

A -- CHECK FOR INTERMITTENT PROBLEMS

4. CHECK VALVE TIMING (CHECK FOR LOOSE OR JUMPED TEETH ON TIMING CHAIN) P0011

NG -- ADJUST VALVE TIMING
OK -- Continue to next step.

5. INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (FOR INTAKE CAMSHAFT) P0010

NG -- REPLACE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (FOR INTAKE CAMSHAFT) Removal
OK -- Continue to next step.

6. INSPECT OIL CONTROL VALVE FILTER AND OIL PIPE P0011

NG -- REPLACE OIL PIPE OR OIL CONTROL VALVE FILTER
OK -- Continue to next step.

7. REPLACE CAMSHAFT TIMING GEAR ASSEMBLY

(a) Replace the camshaft timing gear assembly (bank 1 or bank 2) Removal.

NEXT -- Continue to next step.

8. CHECK WHETHER DTC OUTPUT RECURS

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Clear the DTCs DTC Check / Clear.

(e) Turn the engine switch off.

(f) Turn the engine switch on (IG) and turn the Techstream on.

(g) Start the engine and warm it up.

(h) Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern.

(i) Enter the following menus: Powertrain / Engine / Utility / All Readiness.

(j) Input the DTC: P0016 or P0018.

(k) Check the DTC judgment result.

Result:





B -- REPLACE ECM Removal

A -- END
