C1428

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VEHICLE STABILITY CONTROL SYSTEM: C1428: Motor Circuit Malfunction
C1428 - Motor Circuit Malfunction

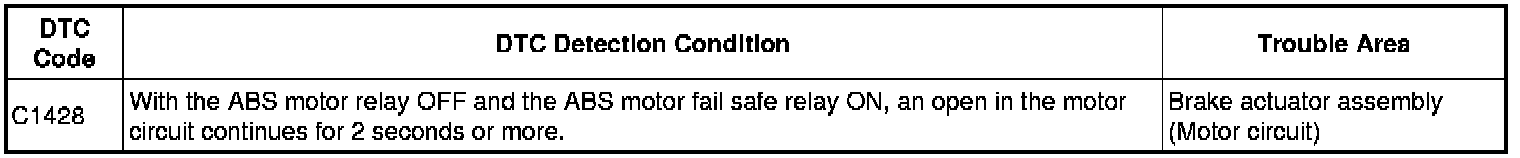

DESCRIPTION





WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
When replacing the brake actuator assembly, perform zero point calibration and store system information Programming and Relearning.

PROCEDURE

1. REPLACE BRAKE ACTUATOR ASSEMBLY

(a) Replace the brake actuator assembly Removal.

NEXT -- END
