B2555

SLIDING ROOF / CONVERTIBLE: RETRACTABLE HARDTOP SYSTEM: B2555: A/C ECU Communication Stop
B2555 - A/C ECU Communication Stop

DESCRIPTION

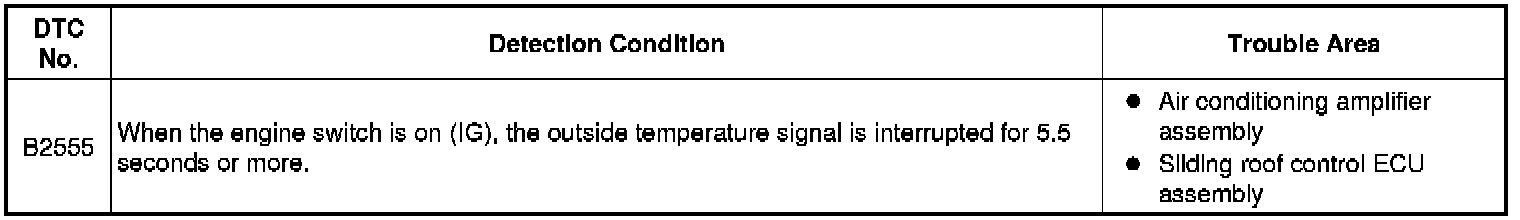

The sliding roof control ECU assembly receives outside temperature signal via BEAN communication from the air conditioning amplifier assembly and changes operation permission condition of the metal top system.





WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY

(a) Replace the air conditioning amplifier assembly.

NEXT -- Continue to next step.

2. CLEAR DTC

(a) Clear the DTC Reading and Clearing Diagnostic Trouble Codes.

NEXT -- Continue to next step.

3. CHECK FOR DTC

(a) Recheck for DTCs Reading and Clearing Diagnostic Trouble Codes.

OK:

DTC B2555 is not output.

NG -- REPLACE SLIDING ROOF CONTROL ECU ASSEMBLY

OK -- END (AIR CONDITIONING AMPLIFIER ASSEMBLY WAS DEFECTIVE)
