B2550

SLIDING ROOF / CONVERTIBLE: RETRACTABLE HARDTOP SYSTEM: B2550: Passenger Door ECU Communication Stop
B2550 - Passenger Door ECU Communication Stop

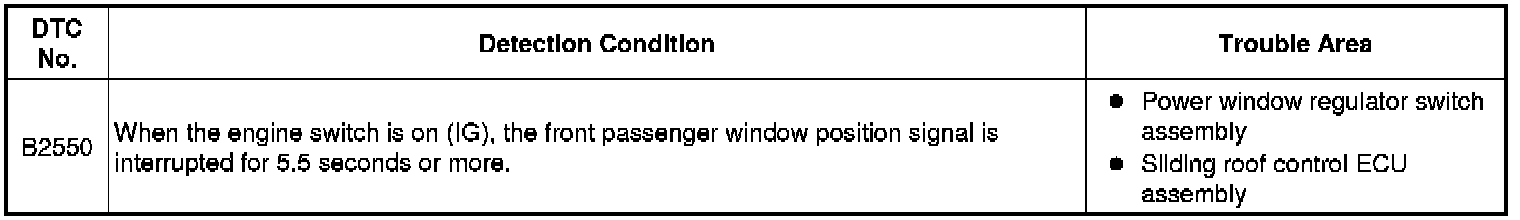

DESCRIPTION

The sliding roof control ECU assembly receives a front passenger window position signal from the power window regulator switch assembly via BEAN communication. The sliding roof control ECU assembly prohibits metal top system operation when the front passenger window does not open to the specified position.

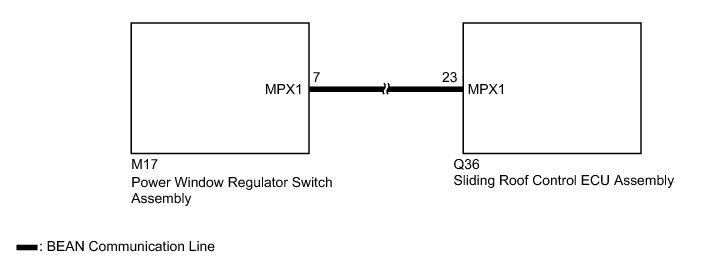

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY

(a) Replace the power window regulator switch assembly.

NEXT -- Continue to next step.

2. CLEAR DTC

(a) Clear the DTC Reading and Clearing Diagnostic Trouble Codes.

NEXT -- Continue to next step.

3. CHECK DTC OUTPUT

(a) Recheck for DTCs Reading and Clearing Diagnostic Trouble Codes.

OK:

DTC B2550 is not output.

NG -- REPLACE SLIDING ROOF CONTROL ECU ASSEMBLY

OK -- END (POWER WINDOW REGULATOR SWITCH ASSEMBLY WAS DEFECTIVE)
