SLIDING ROOF / CONVERTIBLE: RETRACTABLE HARDTOP SYSTEM: B2549: Driver Door ECU Communication Stop
B2549 - Driver Door ECU Communication Stop

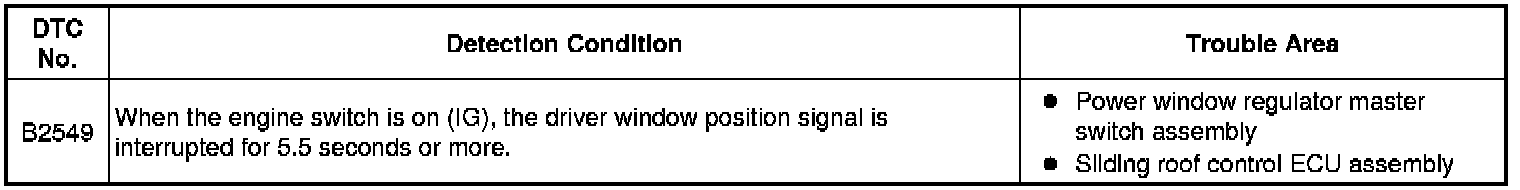

DESCRIPTION

The sliding roof control ECU assembly receives a driver window position signal from the power window regulator master switch assembly via BEAN communication. The sliding roof control ECU assembly prohibits metal top system operation when the driver window does not open to the specified position.

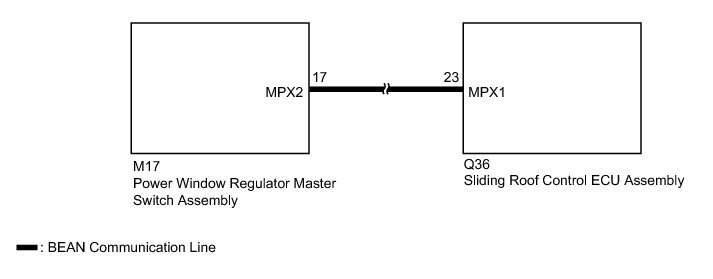

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

(a) Replace the power window regulator master switch assembly.

NEXT -- Continue to next step.

2. CLEAR DTC

(a) Clear the DTC Reading and Clearing Diagnostic Trouble Codes.

NEXT -- Continue to next step.

3. CHECK FOR DTC

(a) Recheck for DTCs Reading and Clearing Diagnostic Trouble Codes.

OK:

DTC B2549 is not output.

NG -- REPLACE SLIDING ROOF CONTROL ECU ASSEMBLY

OK -- END (POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WAS DEFECTIVE)
