Home >> Lexus >> 2010 >> IS 250 RWD V6-2.5L (4GR-FSE) >> Repair and Diagnosis >> Windows and Glass >> Relays and Modules - Windows and Glass >> Heated Glass Element Relay >> Locations

Heated Glass Element Relay: Locations

WINDSHIELD / WINDOWGLASS: WINDOW DEFOGGER SYSTEM: PARTS LOCATION

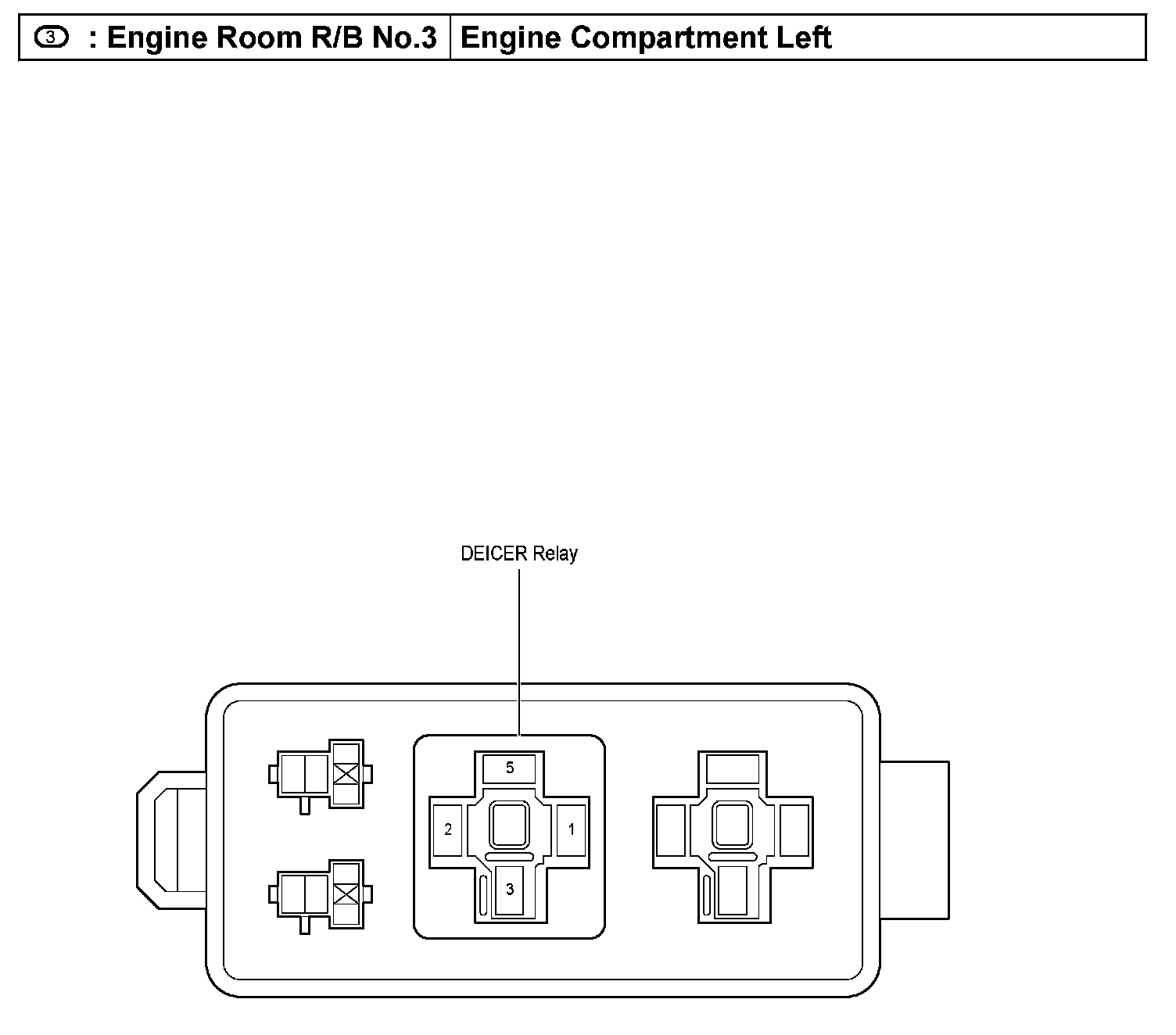

Engine Room R/B No.3 - Engine Compartment Left:

Engine Room R/B, J/B No.1 - Near the Battery:
