Symptom Related Diagnostic Procedures

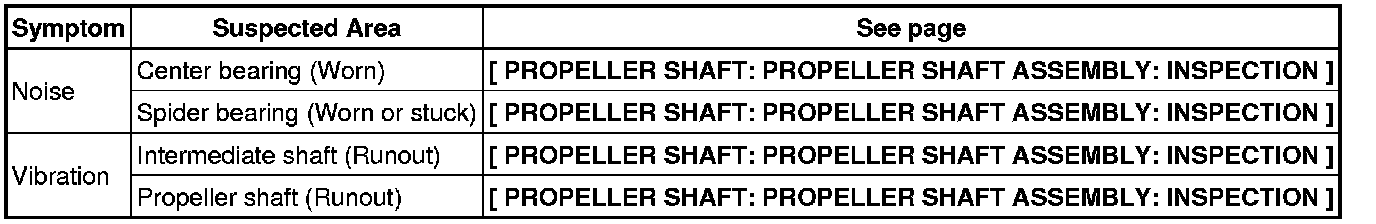

PROPELLER SHAFT: PROPELLER SHAFT SYSTEM: PROBLEM SYMPTOMS TABLE

Use the table below to help find the cause of the problem. Check each part. If necessary, replace these parts.

FRONT PROPELLER SHAFT ASSEMBLY (for 4WD):





REAR PROPELLER SHAFT ASSEMBLY (2GR-FSE):





REAR PROPELLER SHAFT ASSEMBLY (4GR-FSE):
