Replacement
DIFFERENTIAL: DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL: REPLACEMENT
1. REMOVE REAR WHEEL
2. REMOVE NO. 2 DIFFERENTIAL SUPPORT PROTECTOR Removal
3. DRAIN DIFFERENTIAL OIL
(a) Using a hexagon wrench (10 mm), remove the differential filler plug and gasket.
(b) Using a hexagon wrench (10 mm), remove the differential drain plug and gasket, and drain the oil.
(c) Using a hexagon wrench (10 mm), install the differential drain plug and a new gasket.
Torque : 49 Nm (500 kgf-cm, 36 ft-lbf)
4. REMOVE PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY
2GR-FSE: Removal
4GR-FSE: Removal
5. REMOVE REAR SUSPENSION MEMBER BRACE LH

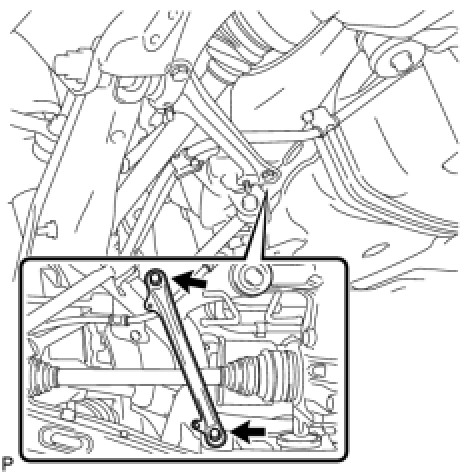

(a) Remove the 2 bolts and rear suspension member brace LH.
6. SEPARATE NO. 3 PARKING BRAKE CABLE ASSEMBLY

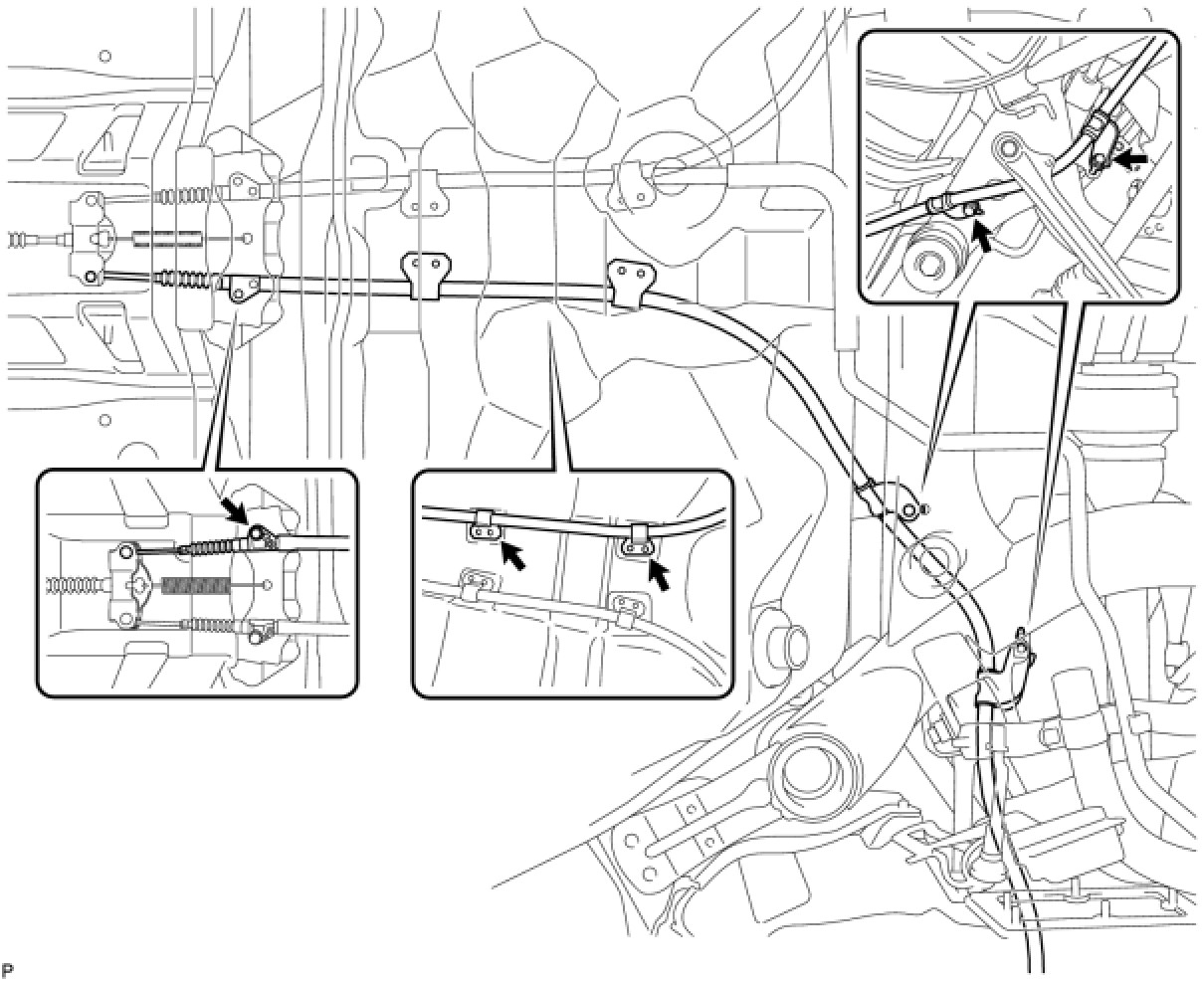

(a) Remove the 3 bolts and disengage the 2 clamps and No. 3 parking brake cable assembly.
(b) Separate the No. 3 parking brake cable assembly from the parking brake equalizer.
7. SEPARATE REAR STABILIZER LINK ASSEMBLY LH Removal
8. REMOVE REAR AXLE SHAFT NUT Removal
9. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY Removal
10. SEPARATE REAR SPEED SENSOR Removal
11. SEPARATE NO. 2 REAR UPPER CONTROL ARM ASSEMBLY Removal
12. SEPARATE NO. 1 REAR UPPER CONTROL ARM ASSEMBLY Removal
13. SEPARATE NO. 1 REAR SUSPENSION ARM ASSEMBLY Removal
14. SEPARATE NO. 2 REAR SUSPENSION ARM ASSEMBLY Removal
15. SEPARATE TOE CONTROL LINK SUB-ASSEMBLY Removal
16. REMOVE REAR AXLE ASSEMBLY Removal
17. REMOVE REAR DRIVE SHAFT ASSEMBLY Removal
18. REMOVE REAR DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL

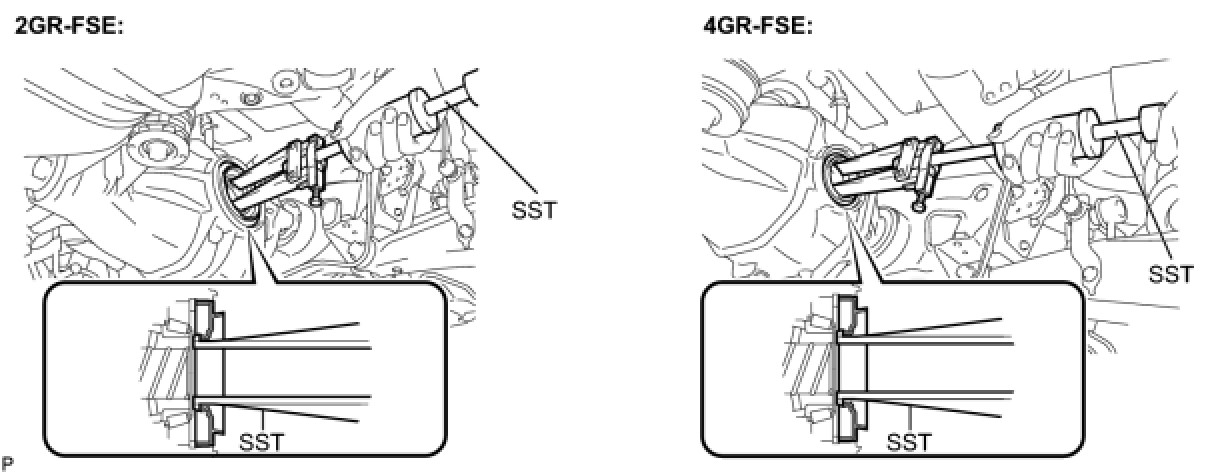

(a) Using SST, remove the oil seal.
SST : 09308-10010
19. INSTALL REAR DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL (for 2GR-FSE)

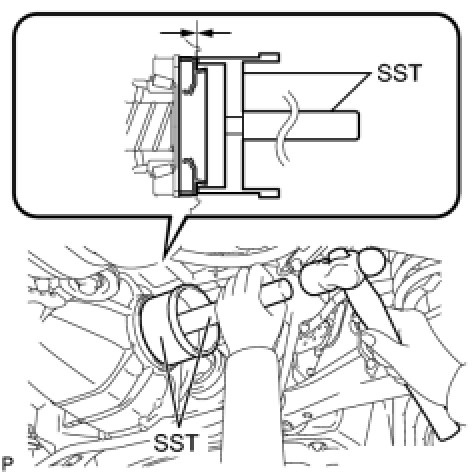

(a) Using SST and a hammer, install a new oil seal.
SST : 09223-15030
SST : 09950-70010
09951-07200
Oil seal installation depth:
-0.5 to 0.5 mm (-0.020 to 0.020 in.)
NOTICE:
* Make sure to check the identification marks on the oil seals before installation because the parts numbers differ between the left and right sides.
* To ensure a proper seal, evenly tap in the rear differential side gear shaft oil seal.
* After installing oil seal, tap it in until surface is flush with the rear differential carrier.
(b) Apply MP grease to the oil seal lip.
20. INSTALL REAR DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL (for 4GR-FSE)

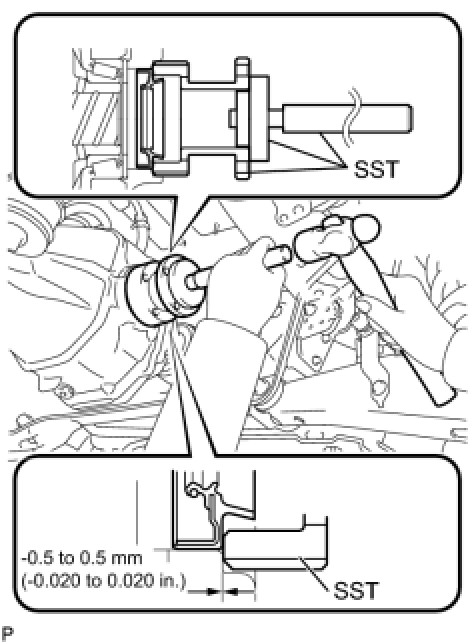

(a) Using SST and a hammer, install a new oil seal.
SST : 09213-70011
SST : 09950-60010
09951-00410
09951-00620
09952-06010
SST : 09950-70010
09951-07100
Oil seal installation depth:
-0.5 to 0.5 mm (-0.020 to 0.020 in.)
(b) Apply MP grease to the oil seal lip.
21. INSTALL REAR DRIVE SHAFT ASSEMBLY Installation
22. INSTALL REAR AXLE ASSEMBLY Installation
23. INSTALL NO. 2 REAR UPPER CONTROL ARM ASSEMBLY Installation
24. TEMPORARILY TIGHTEN NO. 1 REAR UPPER CONTROL ARM ASSEMBLY Installation
25. TEMPORARILY TIGHTEN NO. 1 REAR SUSPENSION ARM ASSEMBLY Installation
26. TEMPORARILY TIGHTEN NO. 2 REAR SUSPENSION ARM ASSEMBLY Installation
27. INSTALL TOE CONTROL LINK SUB-ASSEMBLY Installation
28. INSTALL REAR STABILIZER LINK ASSEMBLY LH Installation
29. INSTALL REAR SPEED SENSOR Installation
30. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY Installation
31. INSTALL REAR AXLE SHAFT NUT Installation
32. STABILIZE SUSPENSION Installation
33. FULLY TIGHTEN NO. 1 REAR UPPER CONTROL ARM ASSEMBLY Installation
34. FULLY TIGHTEN NO. 1 REAR SUSPENSION ARM ASSEMBLY Installation
35. FULLY TIGHTEN NO. 2 REAR SUSPENSION ARM ASSEMBLY Installation
36. INSTALL NO. 3 PARKING BRAKE CABLE ASSEMBLY
(a) Connect the No. 3 parking brake cable assembly to the parking brake equalizer.
(b) Install the No. 3 parking brake cable assembly to the body with the 3 bolts and 2 clamps.
Bolt (A) - Torque : 6.0 Nm (61 kgf-cm, 53 in-lbf)
Bolt (B) - Torque : 19 Nm (194 kgf-cm, 14 ft-lbf)
37. INSTALL REAR SUSPENSION MEMBER BRACE LH
(a) Install the rear suspension member brace LH with the 2 bolts.
Torque : 50 Nm (510 kgf-cm, 37 ft-lbf)
38. INSTALL PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY
2GR-FSE: Installation
4GR-FSE: Installation
39. ADD DIFFERENTIAL OIL Adjustments
40. INSPECT DIFFERENTIAL OIL Adjustments
41. INSTALL NO. 2 DIFFERENTIAL SUPPORT PROTECTOR Installation
42. INSTALL REAR WHEEL
Torque : 103 Nm (1,050 kgf-cm, 76 ft-lbf)
43. INSPECT PARKING BRAKE PEDAL TRAVEL (for Automatic Transmission) Adjustments
44. ADJUST PARKING BRAKE PEDAL TRAVEL (for Automatic Transmission) Adjustments
45. INSPECT PARKING BRAKE LEVER TRAVEL (for Manual Transmission) Adjustments
46. ADJUST PARKING BRAKE LEVER TRAVEL (for Manual Transmission) Adjustments
47. INSPECT AND ADJUST REAR WHEEL ALIGNMENT
Rear Wheel Alignment
48. CHECK ABS SPEED SENSOR SIGNAL
Test Mode Procedure
