Wiring Harness: Testing and Inspection

A960E AUTOMATIC TRANSMISSION: TRANSMISSION WIRE: INSPECTION

1. INSPECT TRANSMISSION WIRE

(a) Using an ohmmeter, measure the resistance between the terminals.

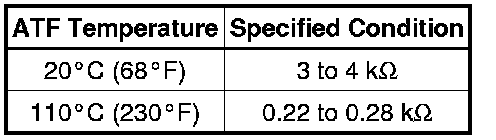

Standard resistance:





(b) If the resistance value is not as specified, replace the transmission wire.
