Home >> Lexus >> 2010 >> IS 250 RWD V6-2.5L (4GR-FSE) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Locations >> Wire and Wire In Engine Compartment

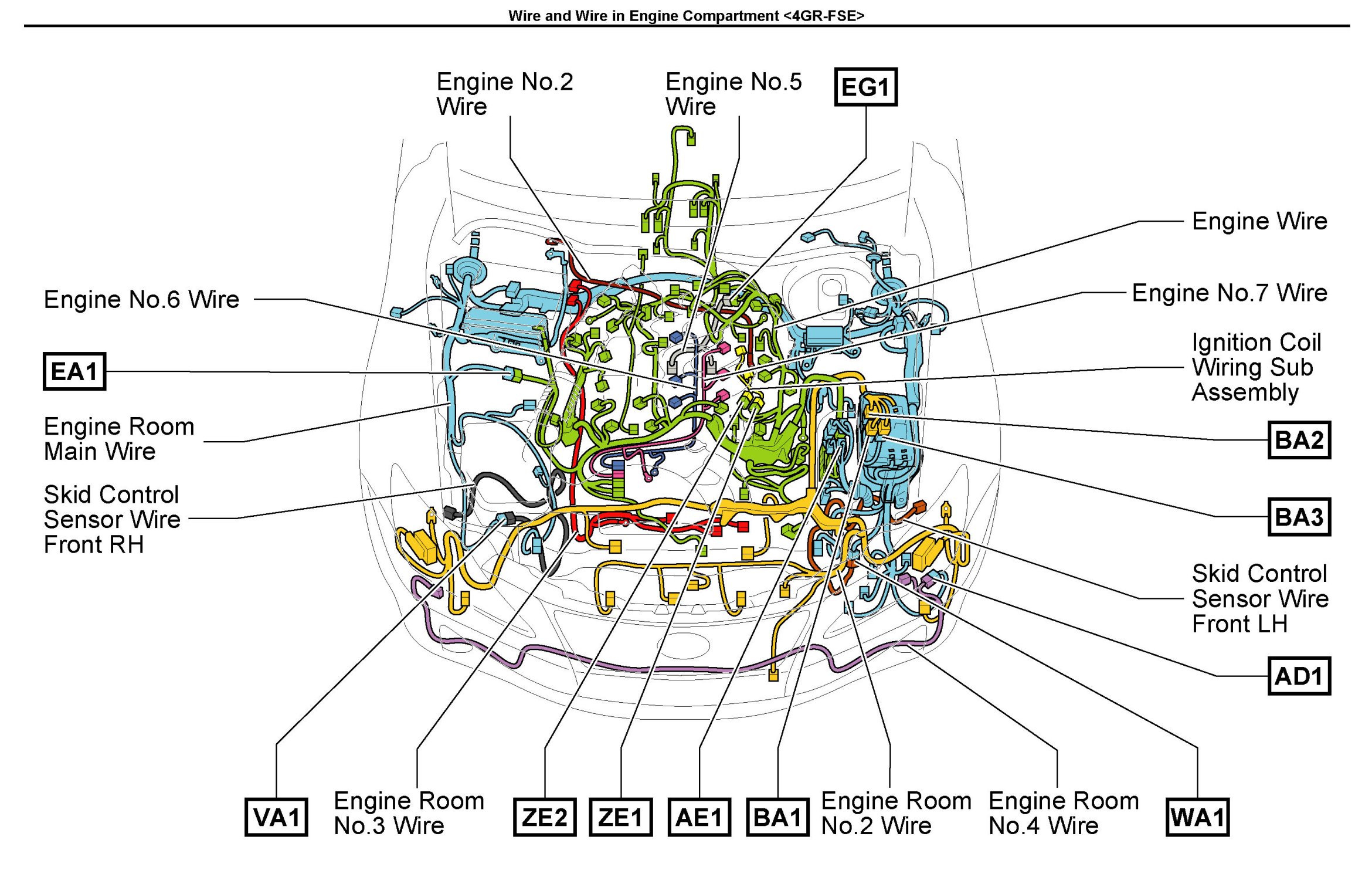

Wire and Wire In Engine Compartment

AD1-ZE2 Position:

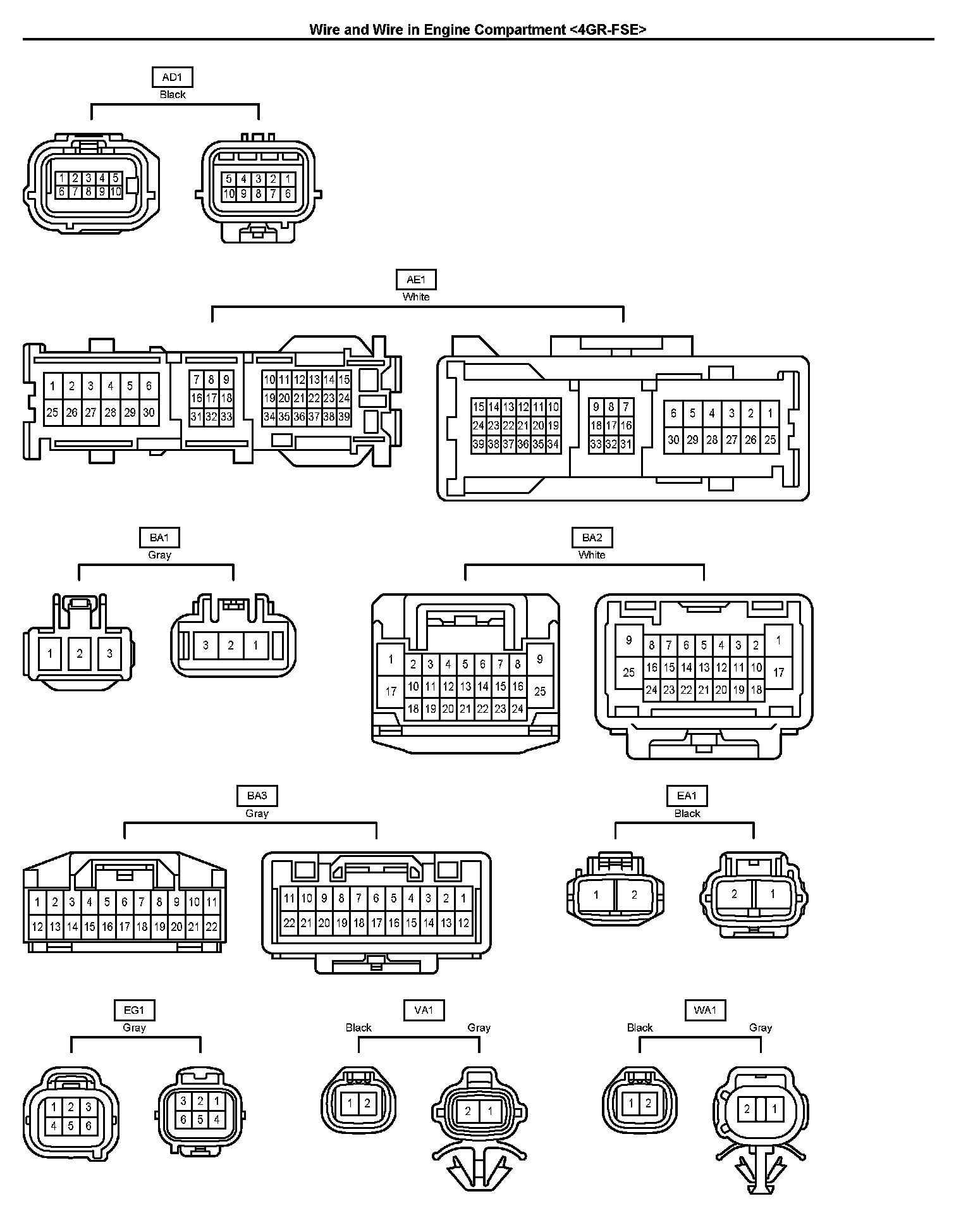

AD1-WA1 Connector Views:

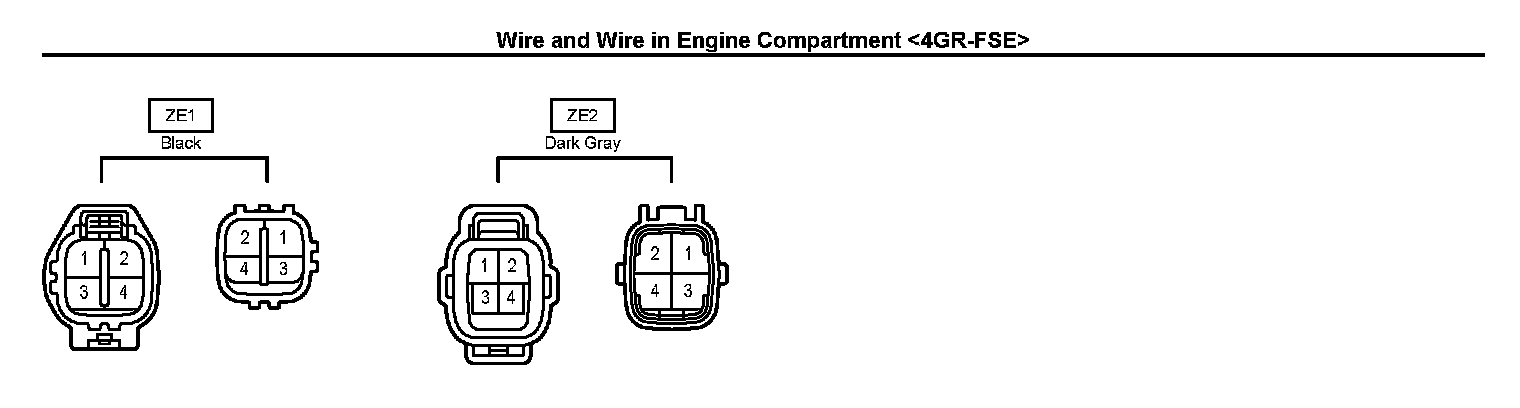

ZE1-ZE2 Connector Views:
