Removal

OTHER SYSTEM: CENTER POWER OUTLET SOCKET: REMOVAL

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission) Removal

2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission) Removal

3. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission) Removal

4. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission) Removal

5. REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) Removal

6. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) Removal

7. REMOVE FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) Removal

8. REMOVE FRONT ASH RECEPTACLE SUB-ASSEMBLY Removal

9. REMOVE CONSOLE BOX REGISTER ASSEMBLY Removal

10. REMOVE CONSOLE BOX Removal

11. REMOVE POWER OUTLET SOCKET ASSEMBLY

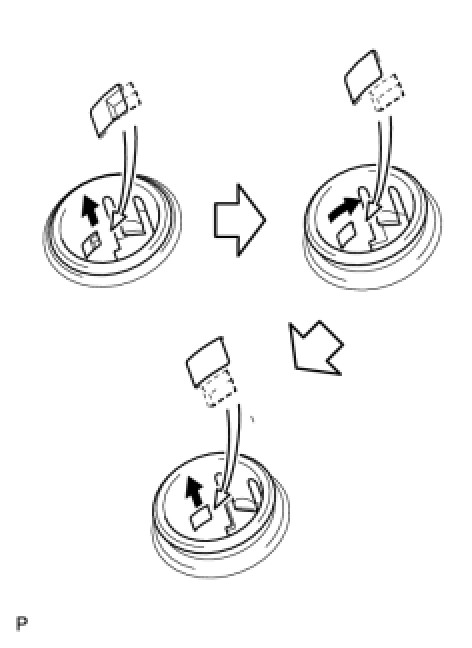

(a) Rotate the socket to disengage the notch.

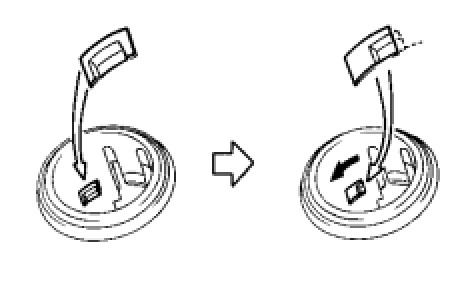

(b) Pull out the socket halfway and rotate the socket until its protrusion is aligned with the groove of the cover.
