Service Data

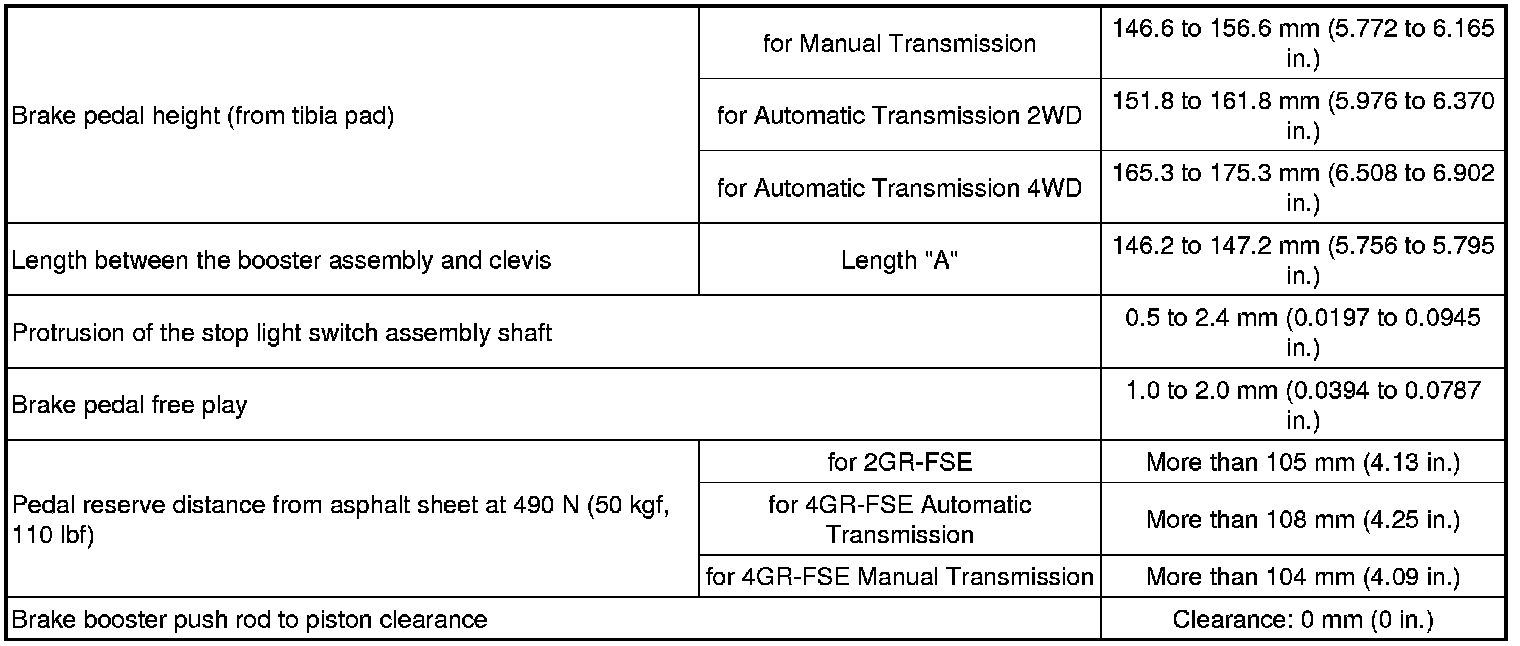

SERVICE SPECIFICATIONS: BRAKE: SERVICE DATA

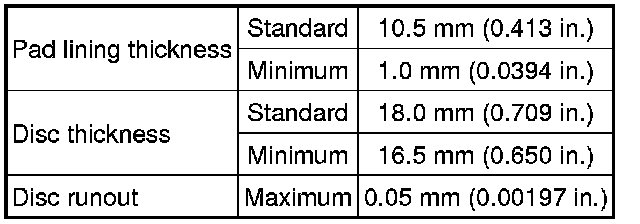

Front Brake (for 2GR-FSE):

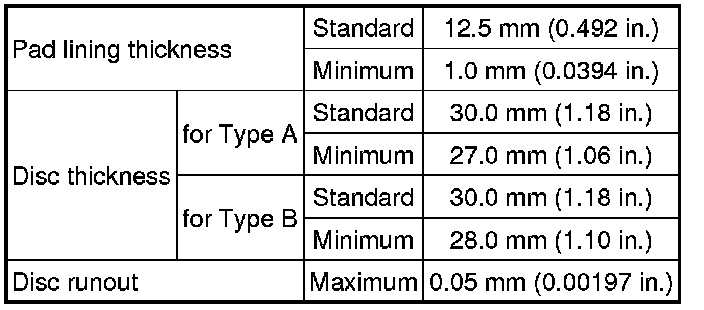

Front Brake (for 4GR-FSE):

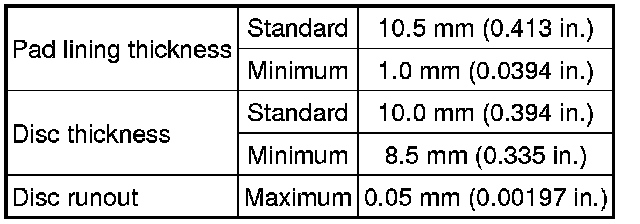

Rear Brake (for 2GR-FSE):

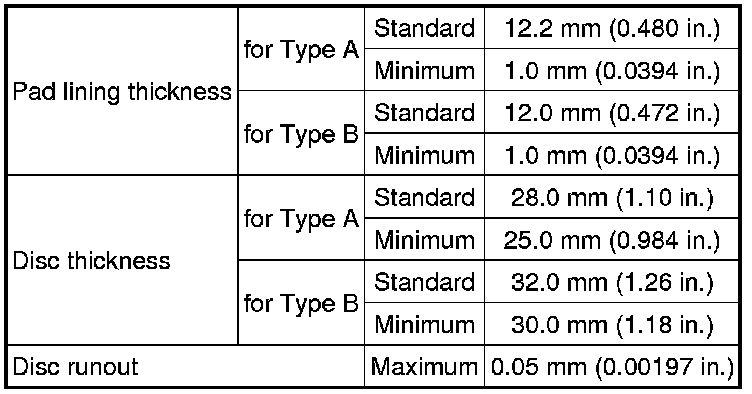

Rear Brake (for 4GR-FSE):
