Torque Specifications





SERVICE SPECIFICATIONS: A960E AUTOMATIC TRANSMISSION: TORQUE SPECIFICATIONS

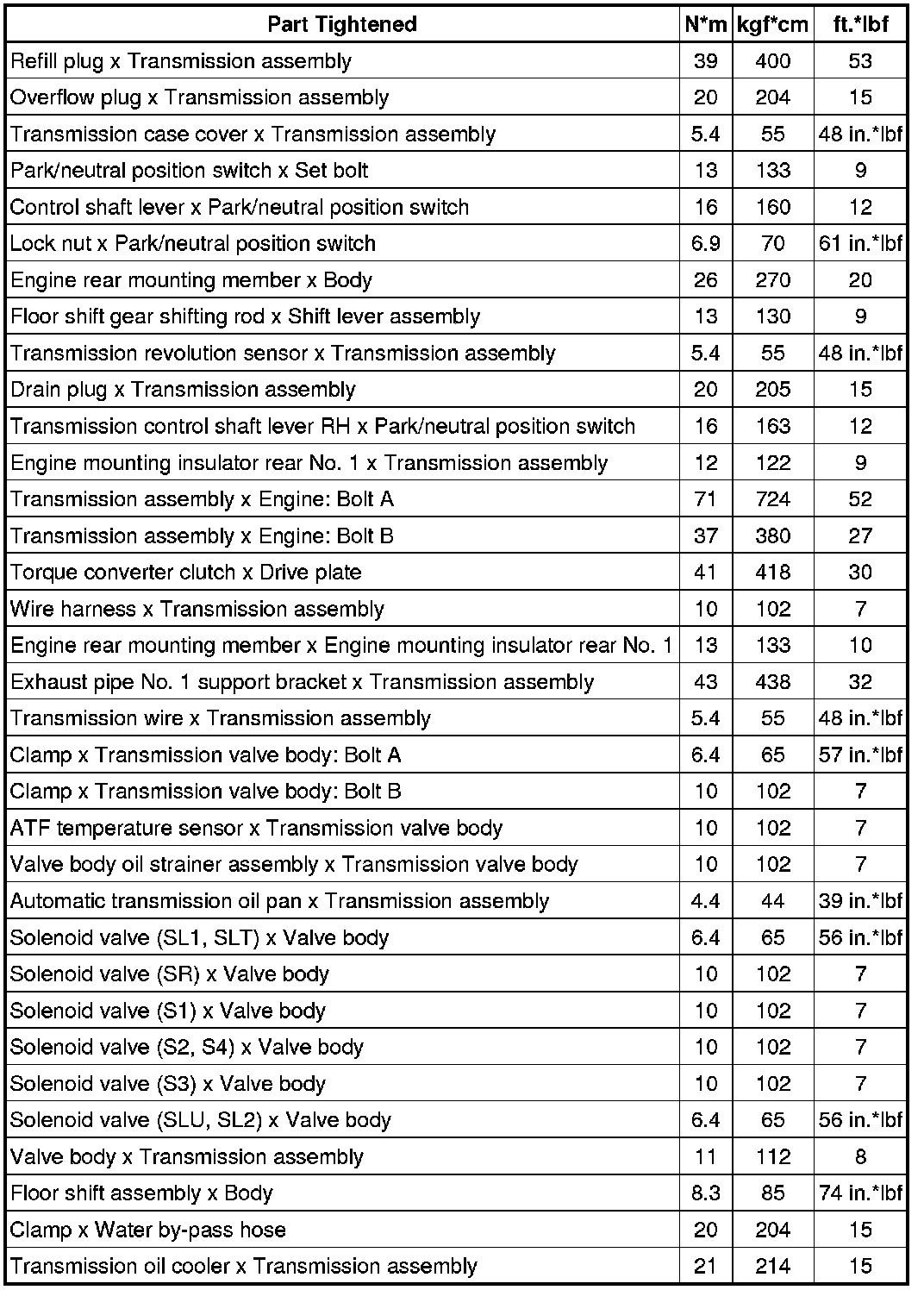

Automatic Transmission Assembly::

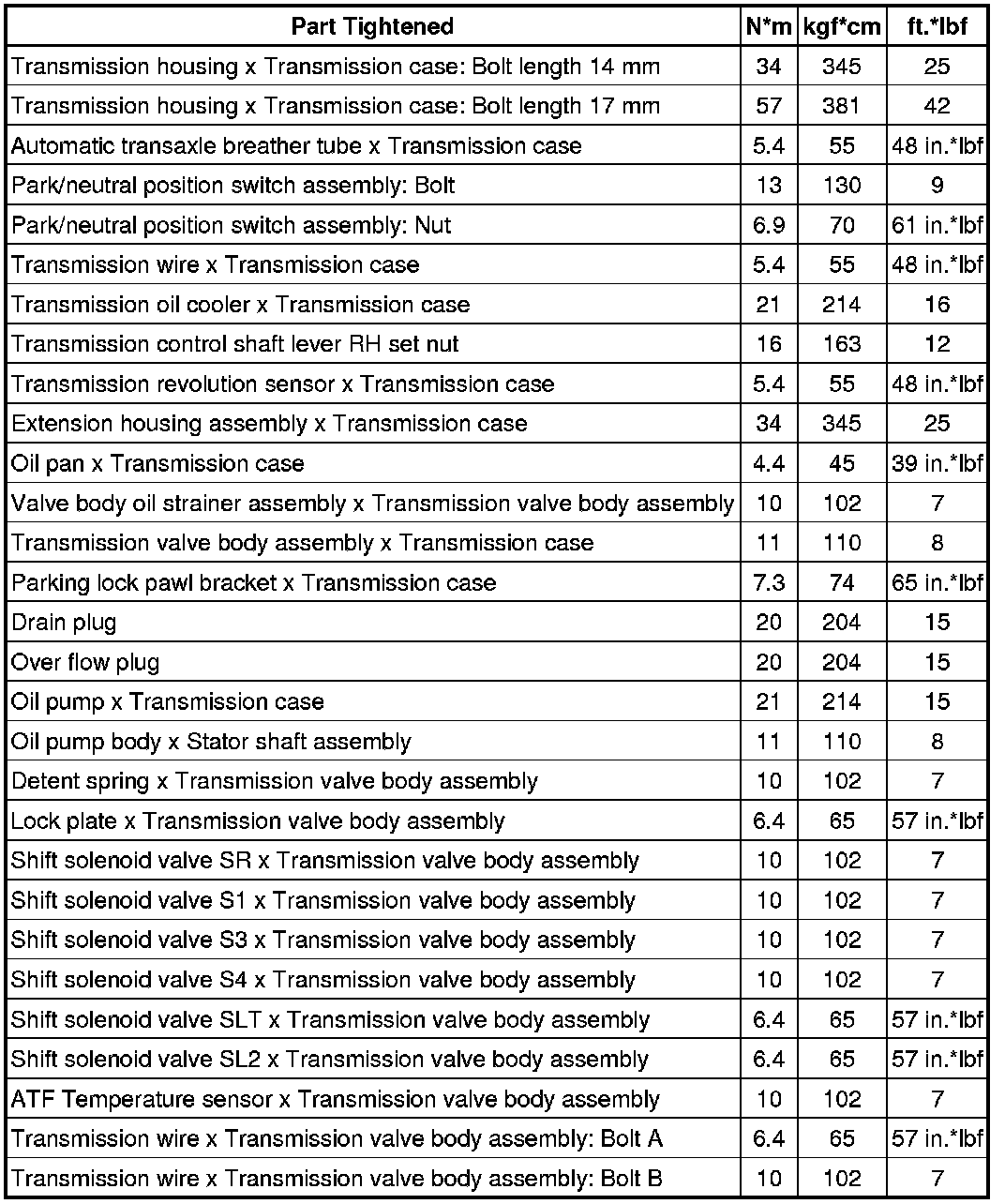

Automatic Transmission Unit::
