Headlamp Dimmer Switch: Testing and Inspection

LIGHTING: HEADLIGHT DIMMER SWITCH: INSPECTION

1. REMOVE HEADLIGHT DIMMER SWITCH ASSEMBLY

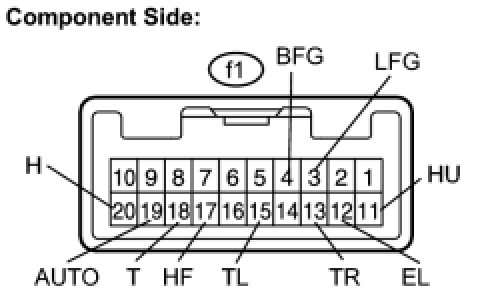

(a) Measure the resistance according to the value(s) in the tables below.





Standard resistance:

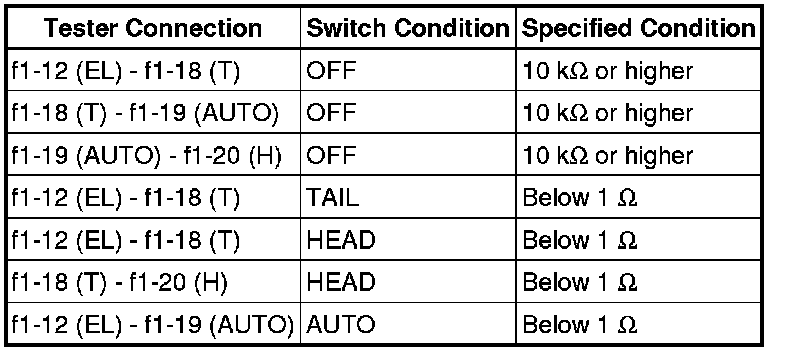

Light Control Switch

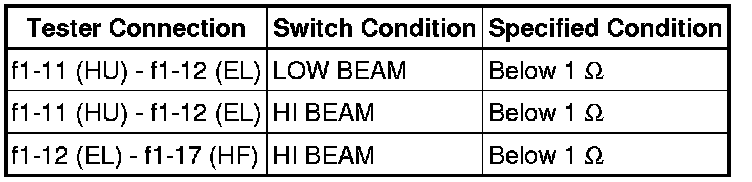

Headlight Dimmer Switch

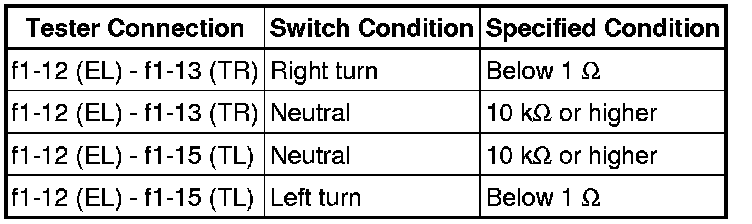

Turn Signal Switch

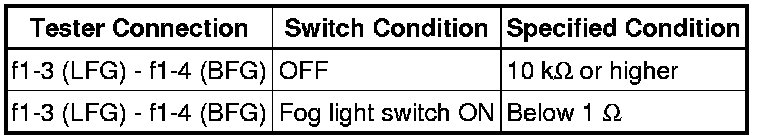

Fog Light Switch





(b) If the result is not as specified, replace the headlight dimmer switch assembly.
