Cruise Control Switch: Testing and Inspection

CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: INSPECTION

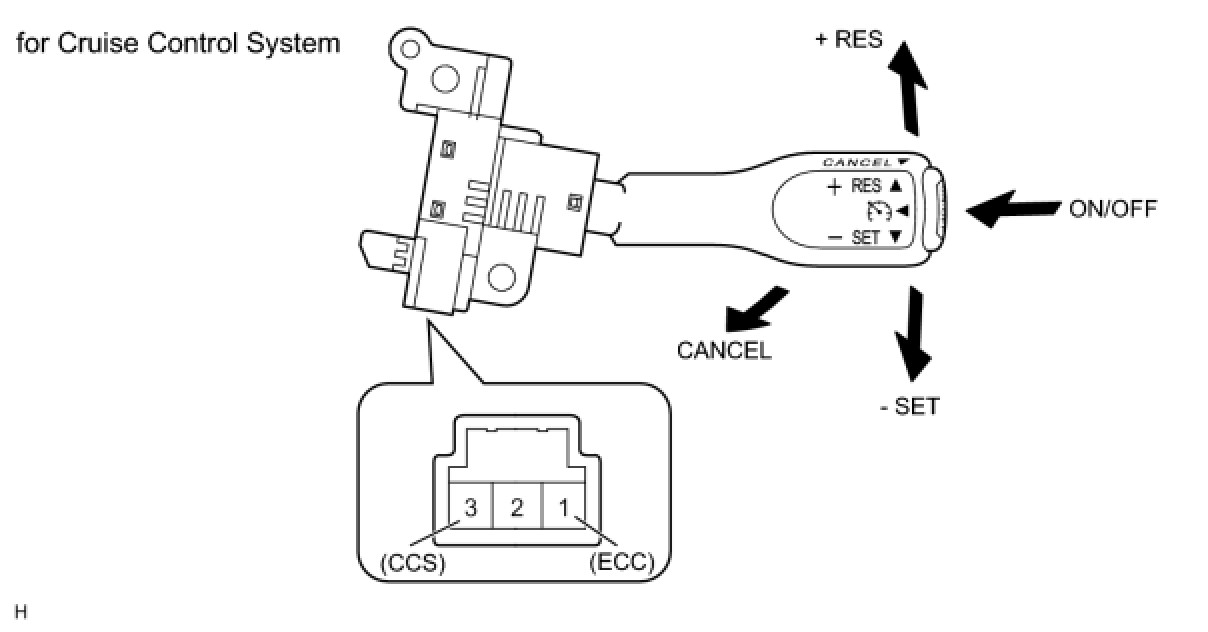

1. INSPECT CRUISE CONTROL MAIN SWITCH

(a) Measure the resistance according to the value(s) in the table below.

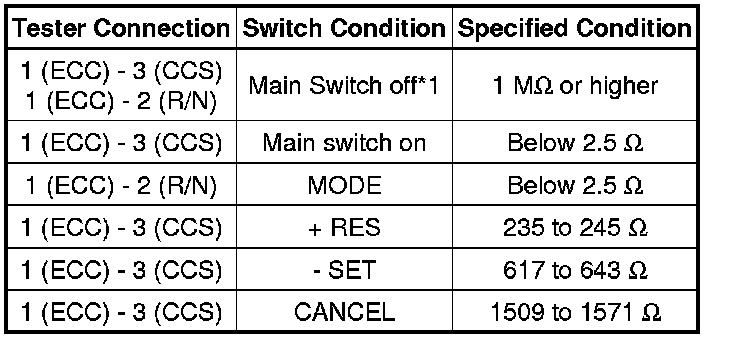

Standard Resistance (for Cruise Control System):

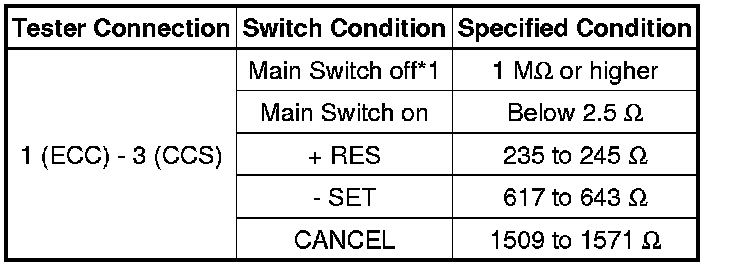

Standard Resistance (for Dynamic Radar Cruise Control System):





(b) *1: Lever is in the neutral position

If the result is not as specified, replace the cruise control main switch
