Traction Control Switch: Testing and Inspection

BRAKE CONTROL: VSC OFF SWITCH: INSPECTION

1. INSPECT VSC OFF SWITCH

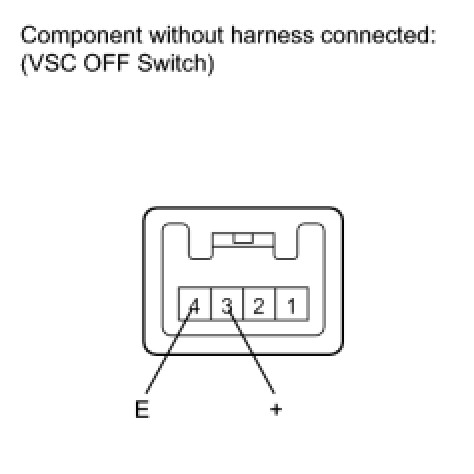

(a) Disconnect the VSC OFF switch connector.

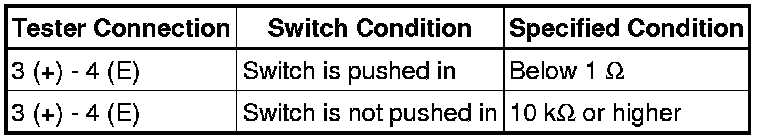

(b) Measure the resistance according to the value(s) in the table below.





Standard resistance:





(c) If the value is not as specified, replace the vsc off switch.
