Installation





DOOR LOCK: DOOR CONTROL SWITCH: INSTALLATION

1. INSTALL DOOR CONTROL SWITCH ASSEMBLY

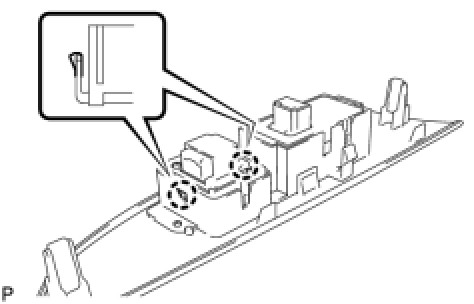

(a) Engage the 2 claws to install the door control switch assembly.





2. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL Installation
