Removal

PRE-COLLISION: SEAT BELT CONTROL ECU: REMOVAL

1. REMOVE NO. 2 LUGGAGE COMPARTMENT TRIM COVER

2. REMOVE DECK SIDE TRIM BOX LH

3. REMOVE DECK SIDE TRIM BOX RH

4. REMOVE ROPE HOOK ASSEMBLY Removal

5. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER Removal

6. REMOVE NO. 2 ROOM LIGHT ASSEMBLY Removal

7. REMOVE ROPE HOOK Removal

8. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER Removal

9. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK Removal

10. REMOVE SIDE LUGGAGE COMPARTMENT TRIM COVER LH Removal

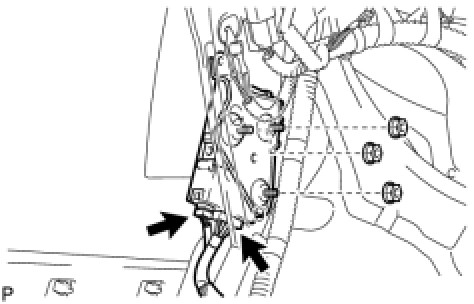

11. REMOVE SEAT BELT CONTROL ECU (w/o Intuitive Parking Assist System)

(a) Disconnect each connector.





(b) Remove the 3 nuts and seat belt control ECU.

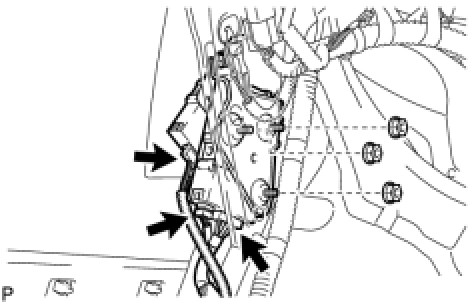

12. REMOVE SEAT BELT CONTROL ECU (w/ Intuitive Parking Assist System)

(a) Disconnect each connector.





(b) Remove the 3 nuts and remover the seat belt control ECU and the clearance warning ECU as a unit.

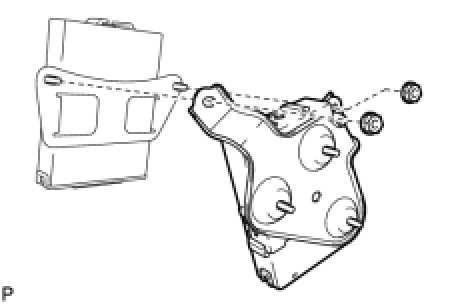

(c) Remove the 2 nuts and seat belt control ECU.
