Headlamp Relay
>>
Locations
Headlamp Relay: Locations
LIGHTING: LIGHTING SYSTEM: PARTS LOCATION

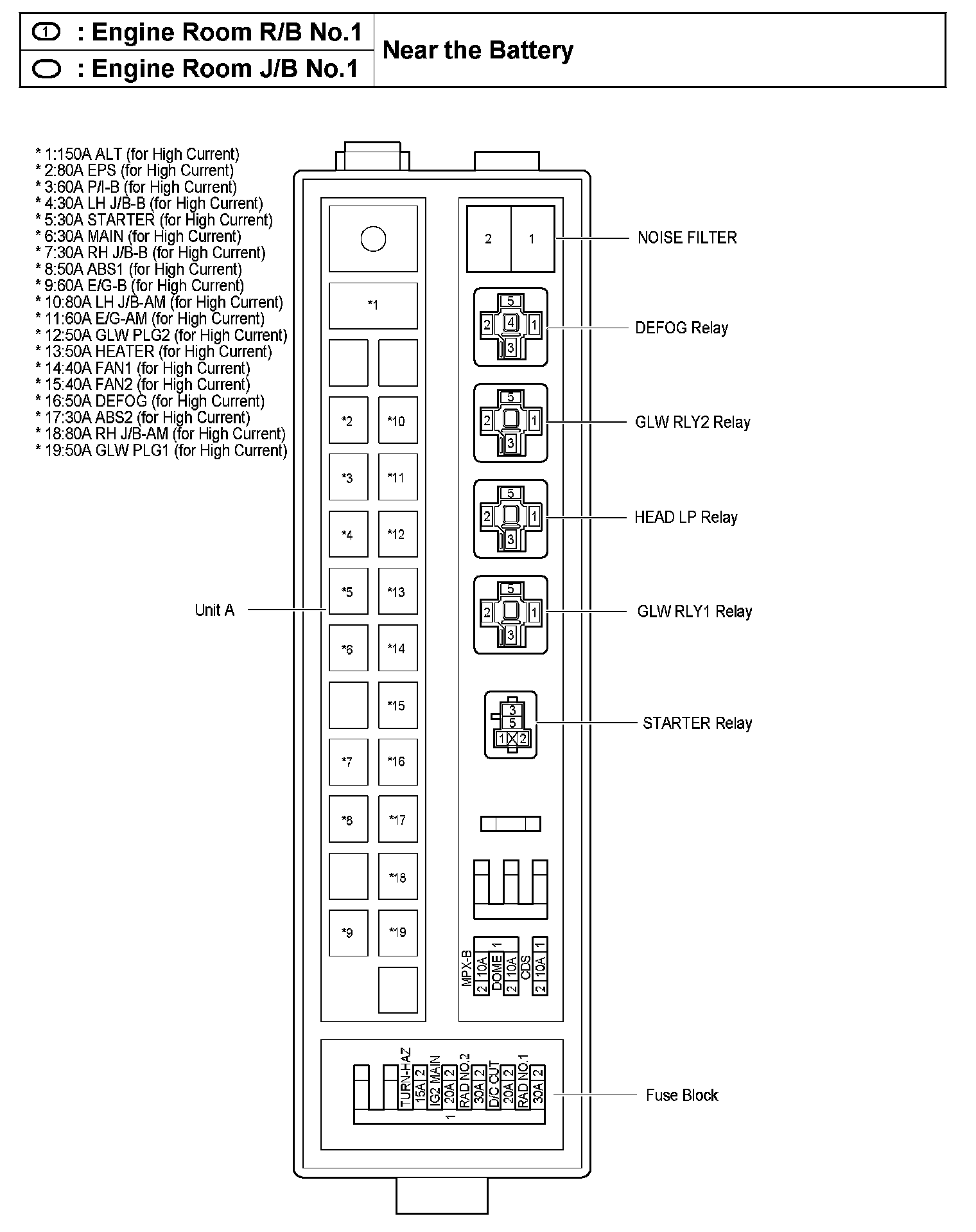

Engine Room R/B, J/B No.1 - Near the Battery:
