Installation

PARK ASSIST / MONITORING: CLEARANCE WARNING ECU: INSTALLATION

1. INSTALL CLEARANCE WARNING ECU (w/o Pre-collision System)

(a) Install the clearance warning ECU with the 2 nuts.





Torque : 5.5 Nm (56 kgf-cm, 49 in-lbf)

(b) Connect the connector.

2. INSTALL CLEARANCE WARNING ECU (w/ Pre-collision System)

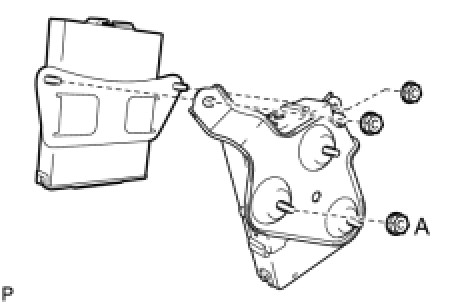

(a) Install the clearance warning ECU to the seat belt control ECU with the 2 nuts.





Torque : 5.5 Nm (56 kgf-cm, 49 in-lbf)

(b) Temporarily install nut A.

(c) Insert loosely tightened nut A into the hole on the vehicle body (left side of the luggage compartment). Slide down the seat belt control ECU and the clearance warning ECU as a unit to temporarily install them.





(d) Insert the 2 bolts into the holes on the vehicle body and fully tighten the 3 nuts in the order of B, A, and C.

Torque : 5.5 Nm (56 kgf-cm, 49 in-lbf)

(e) Connect each connector.

3. INSTALL SIDE LUGGAGE COMPARTMENT TRIM COVER Installation

4. INSTALL LUGGAGE COMPARTMENT TRIM HOOK Installation

5. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER Installation

6. INSTALL ROPE HOOK Installation

7. INSTALL ROOM LIGHT ASSEMBLY Installation

8. INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER Installation

9. INSTALL ROPE HOOK ASSEMBLY Installation

10. INSTALL DECK SIDE TRIM BOX RH

11. INSTALL DECK SIDE TRIM BOX LH

12. INSTALL LUGGAGE COMPARTMENT TRIM COVER
