Installation

LIGHTING: HEADLIGHT ASSEMBLY: INSTALLATION

1. INSTALL HEADLIGHT ASSEMBLY

(a) Engage the pin.

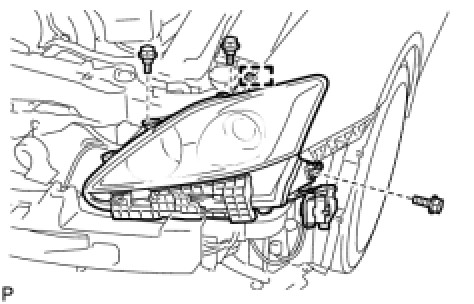

(b) Install the headlight assembly with the 3 bolts.

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

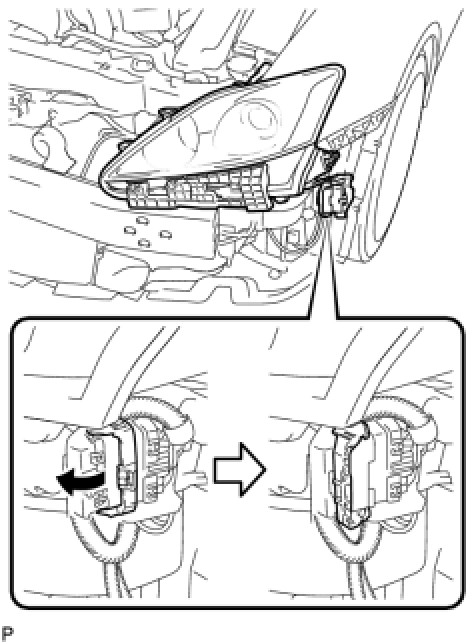

(c) Connect the connector as shown in the illustration.





2. INSTALL FRONT UPPER FENDER PROTECTOR Installation

3. INSTALL ENGINE ROOM SIDE COVER LH (for LH Side) Installation

4. INSTALL ENGINE ROOM SIDE COVER RH (for RH Side) Installation

5. INSTALL FRONT BUMPER ENERGY ABSORBER Reassembly

6. INSTALL FRONT BUMPER ASSEMBLY Installation

7. INSTALL RADIATOR GRILLE PROTECTOR Installation

8. INSTALL COOL AIR INTAKE DUCT SEAL Installation

9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (for HID Headlight)

10. VEHICLE PREPARATION FOR HEADLIGHT AIM ADJUSTMENT Adjustments

11. PREPARATION FOR HEADLIGHT AIMING (Using a tester) Adjustments

12. PREPARATION FOR HEADLIGHT AIMING (Using a screen) Adjustments

13. HEADLIGHT AIMING INSPECTION Adjustments

14. HEADLIGHT AIMING ADJUSTMENT Adjustments

15. VEHICLE PREPARATION FOR FOG LIGHT AIM Adjustments

16. PREPARATION FOR FOG LIGHT AIMING Adjustments

17. FOG LIGHT AIMING INSPECTION Adjustments

18. FOG LIGHT AIMING ADJUSTMENT Adjustments
