Home >> Lexus >> 2010 >> IS 250 RWD V6-2.5L (4GR-FSE) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Service and Repair >> Removal and Replacement >> Engine Unit

Engine Unit

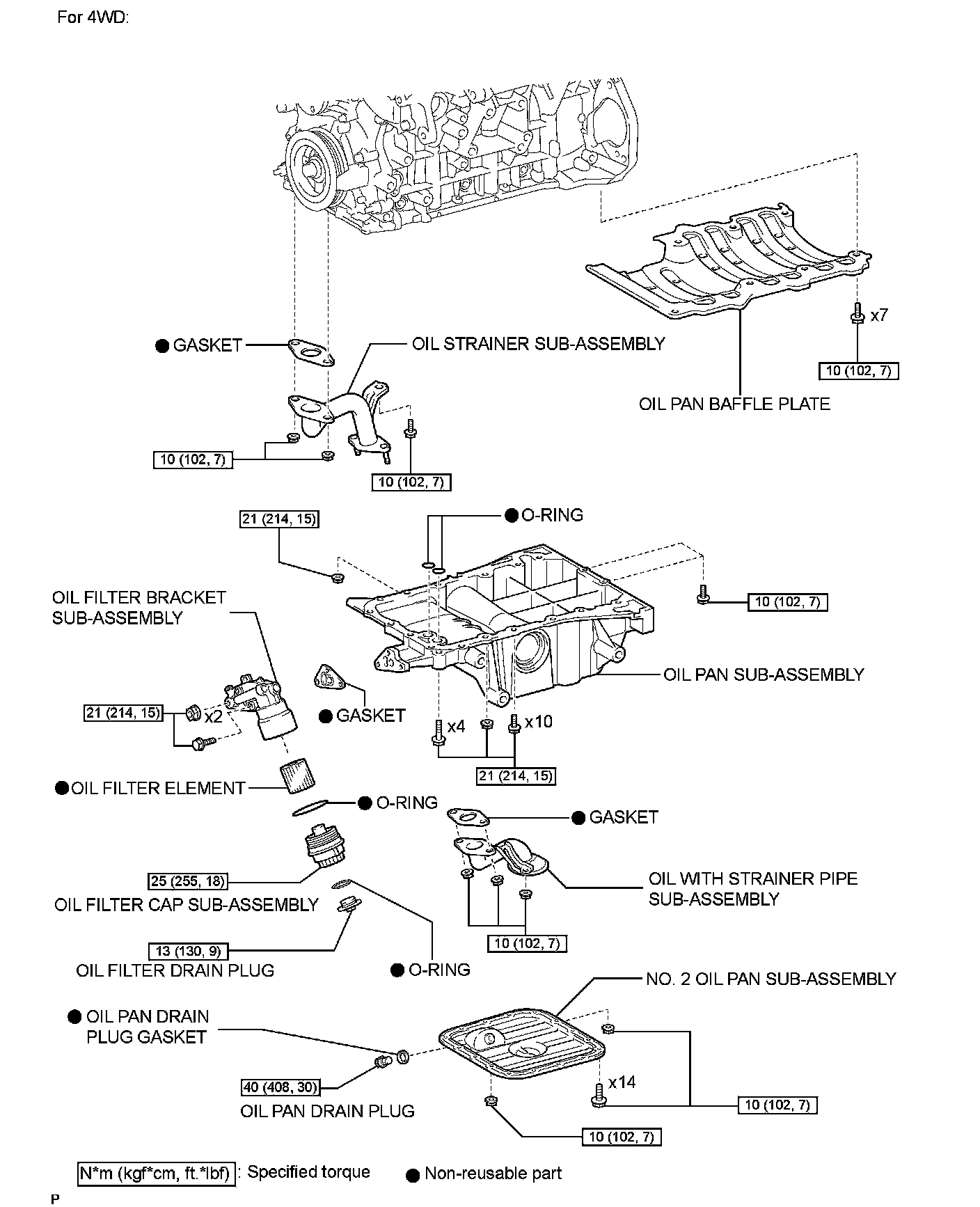

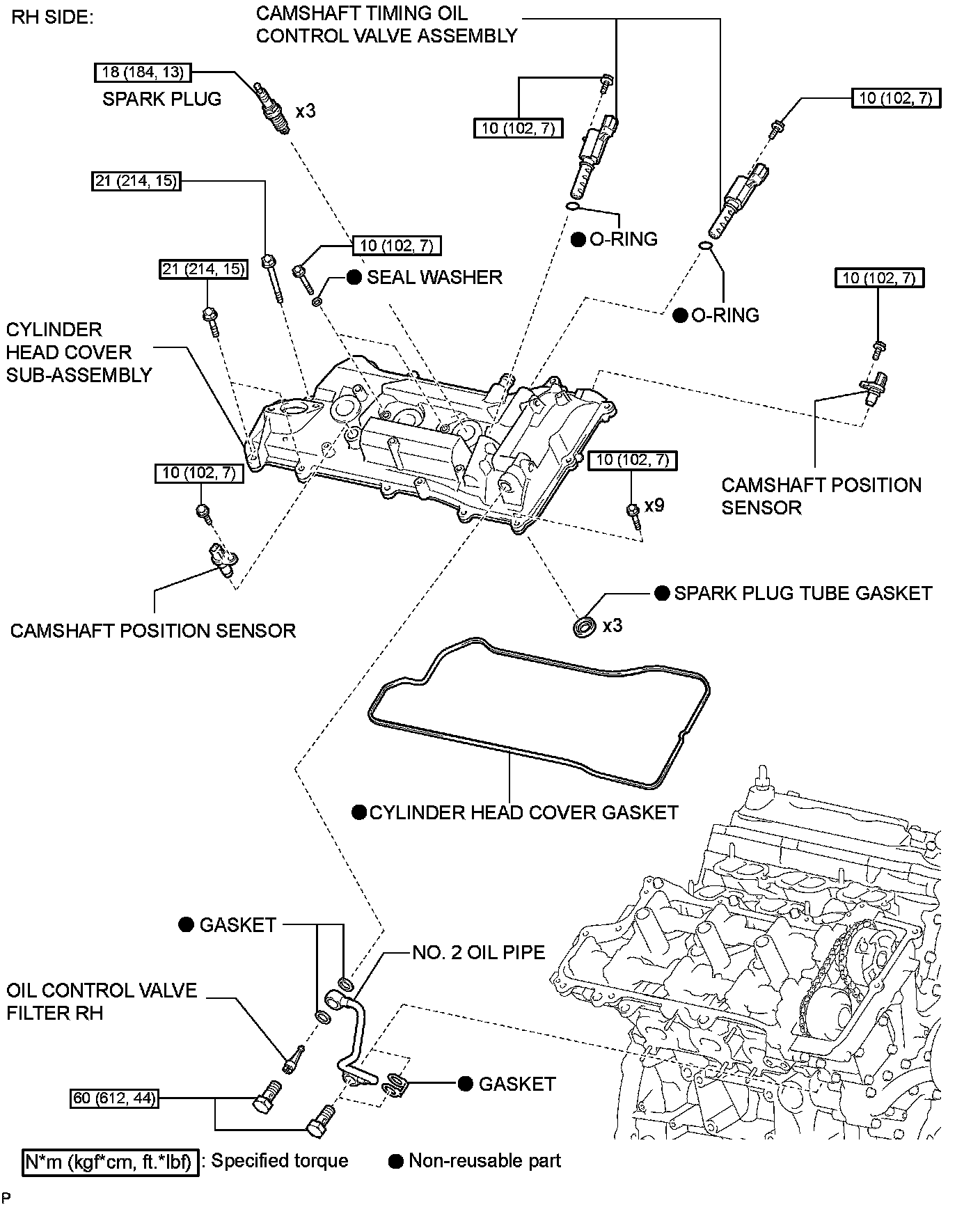

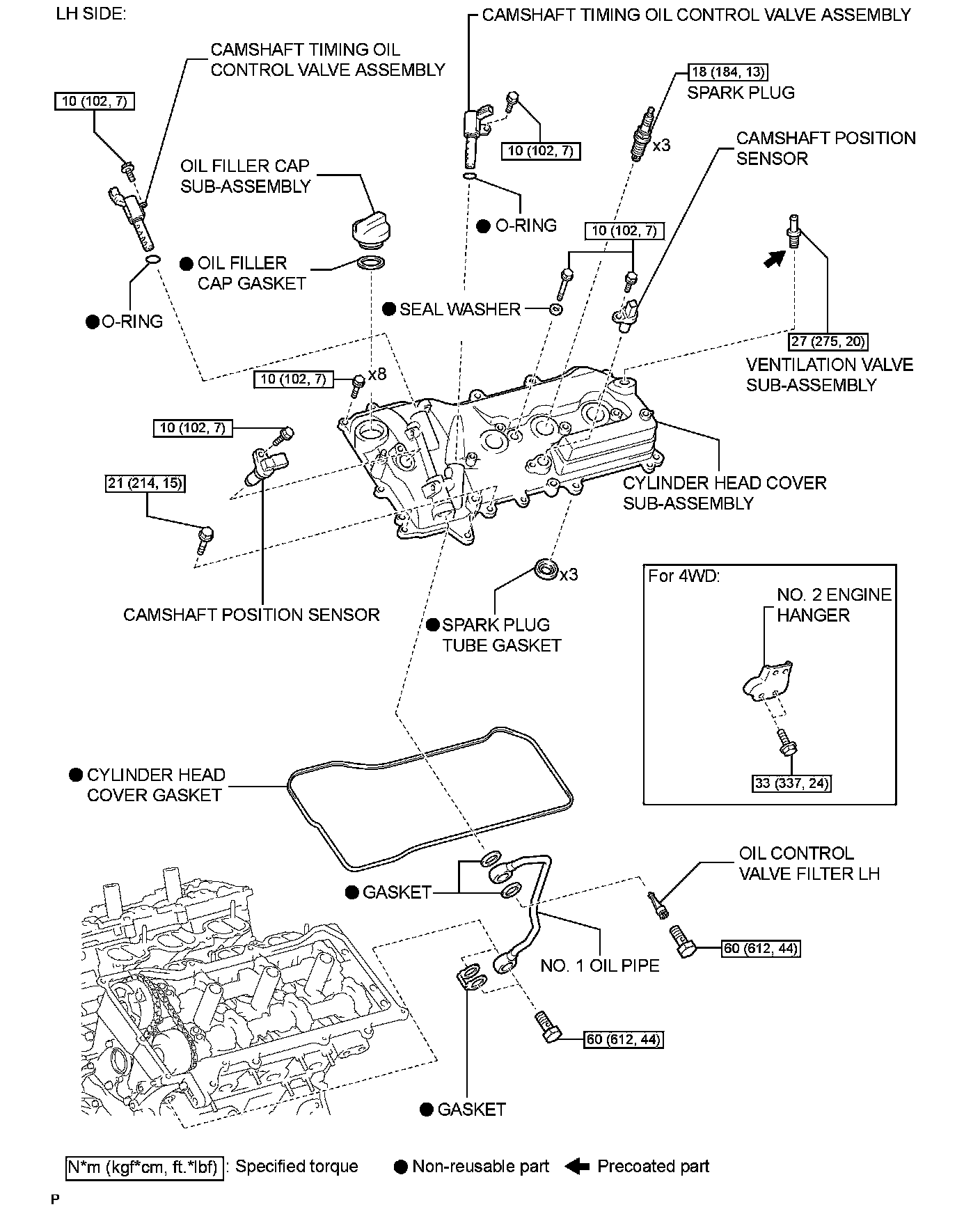

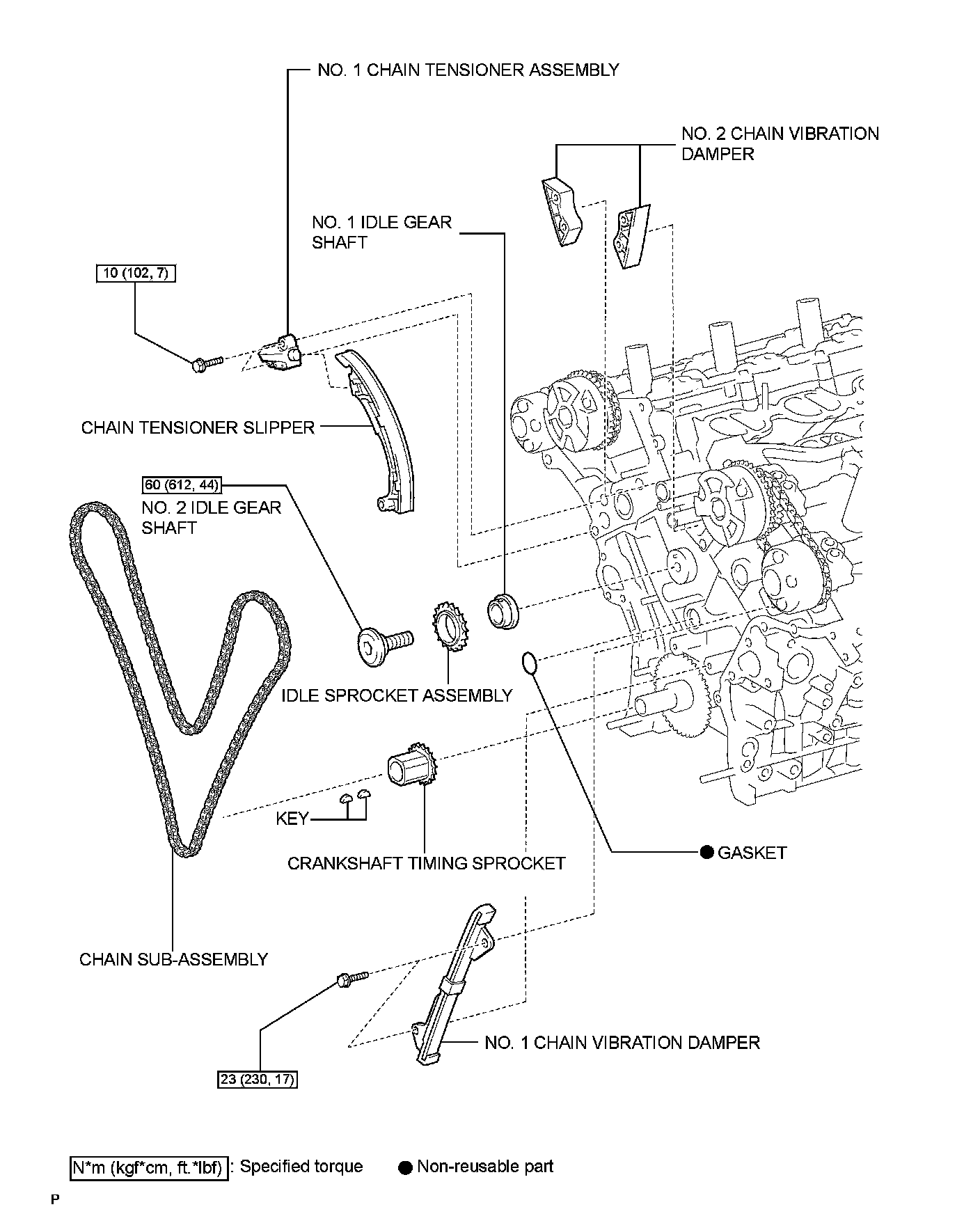

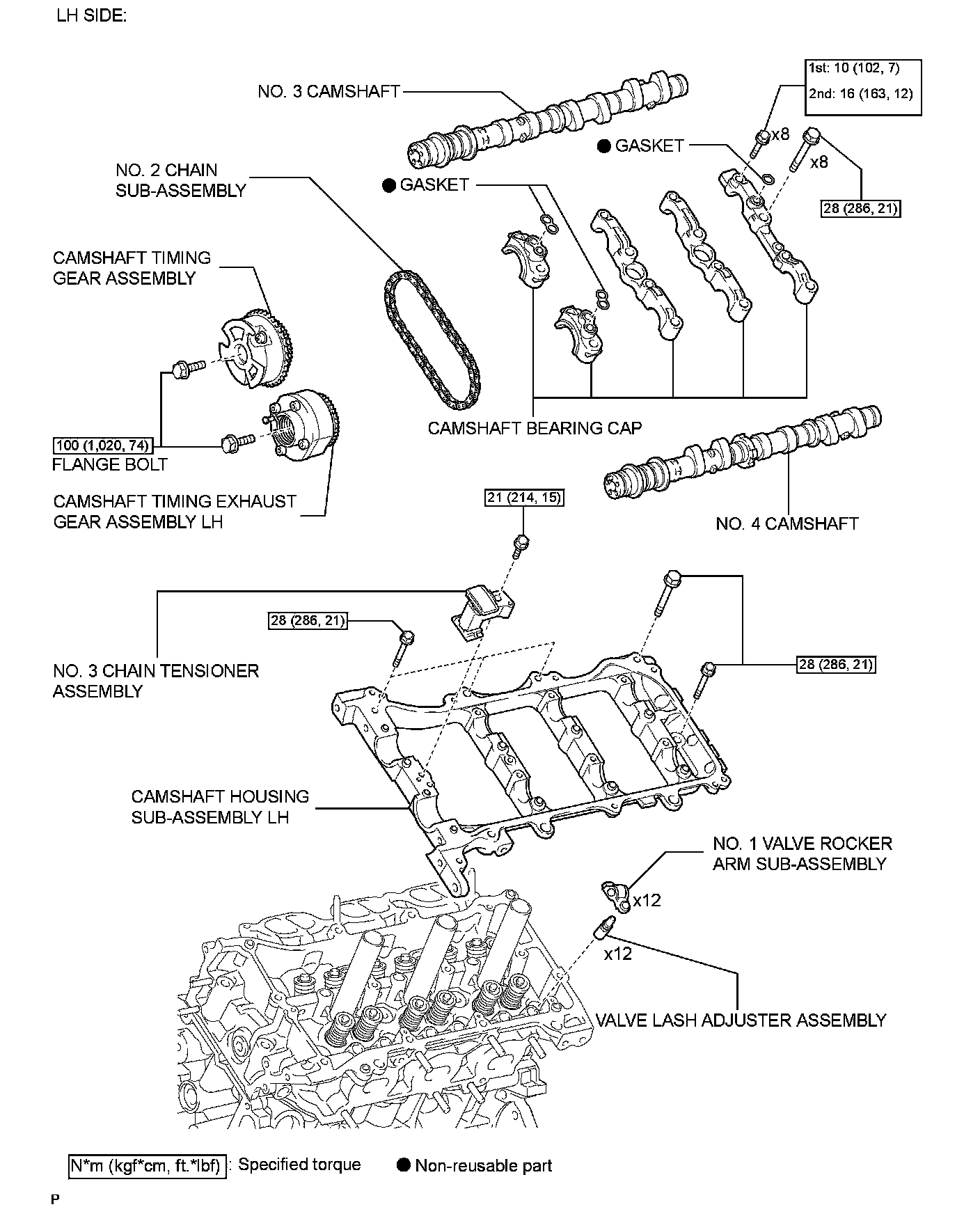

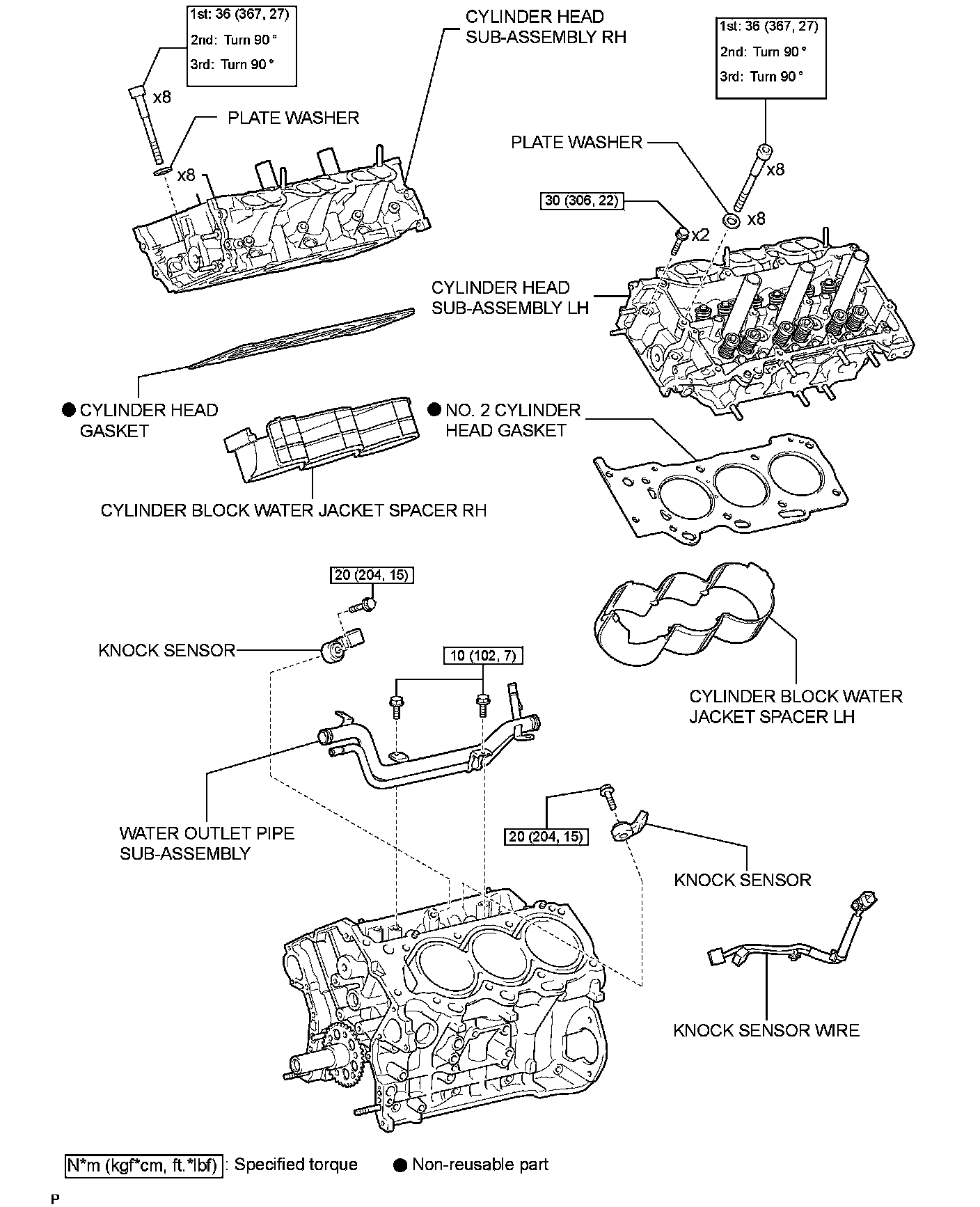

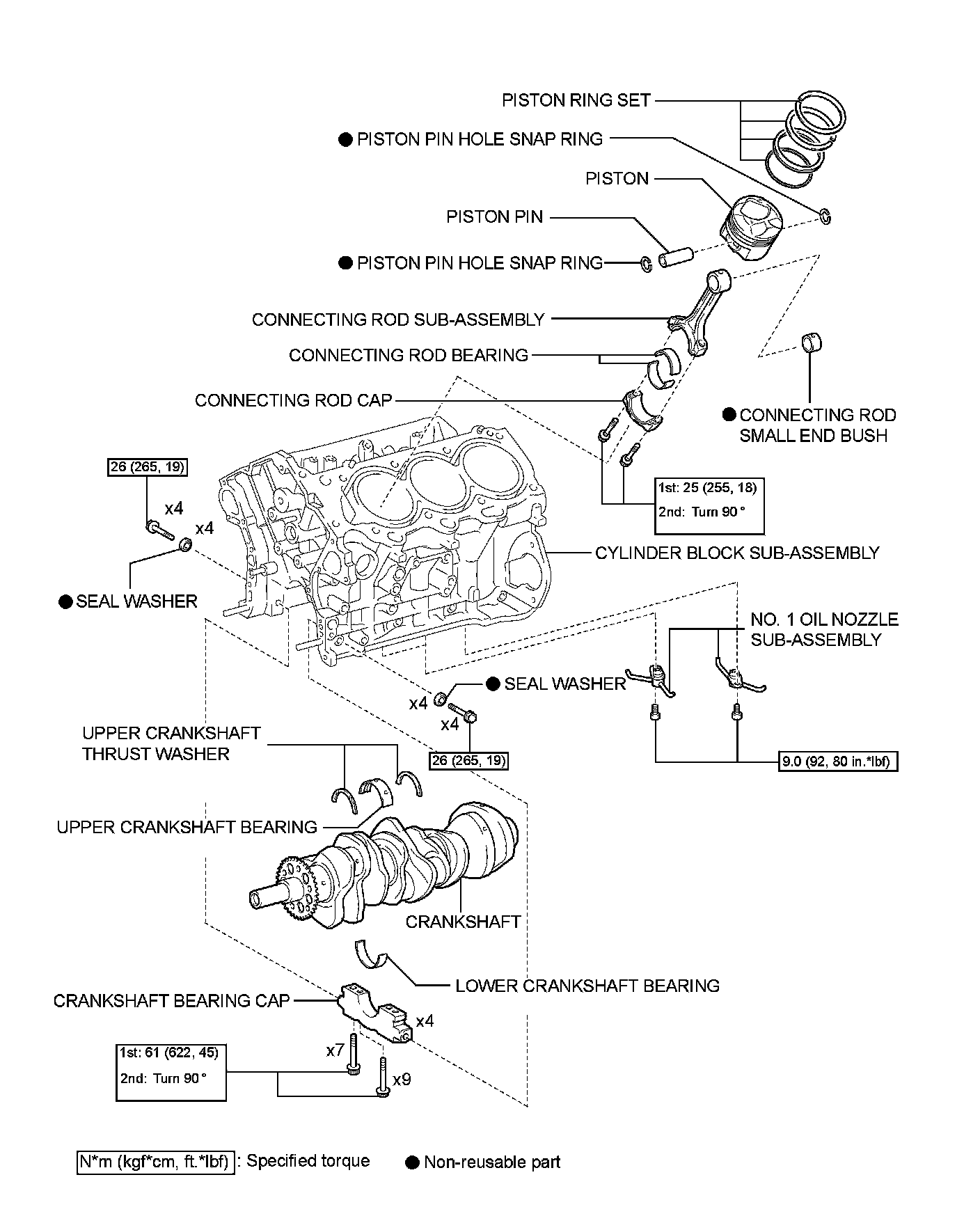

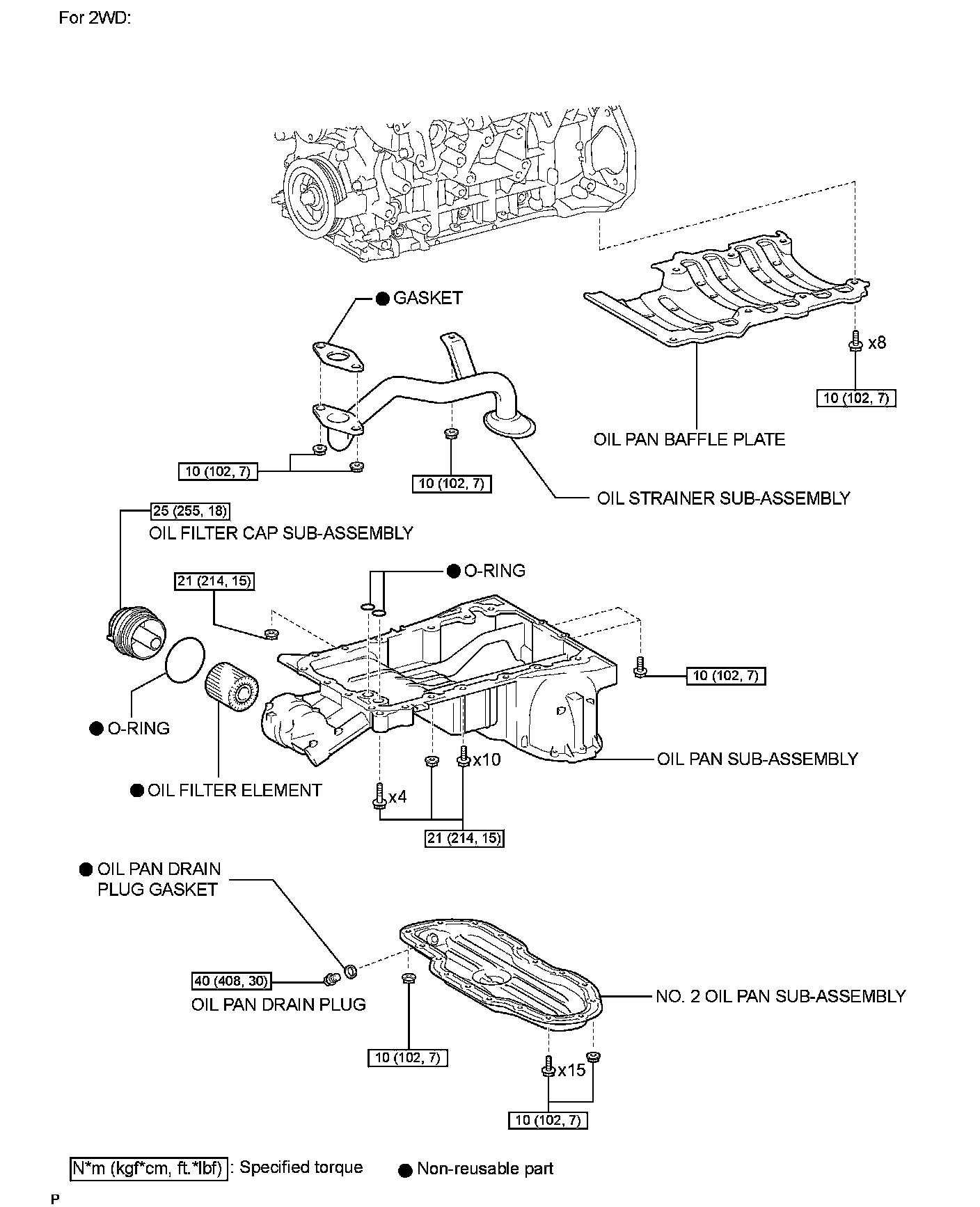

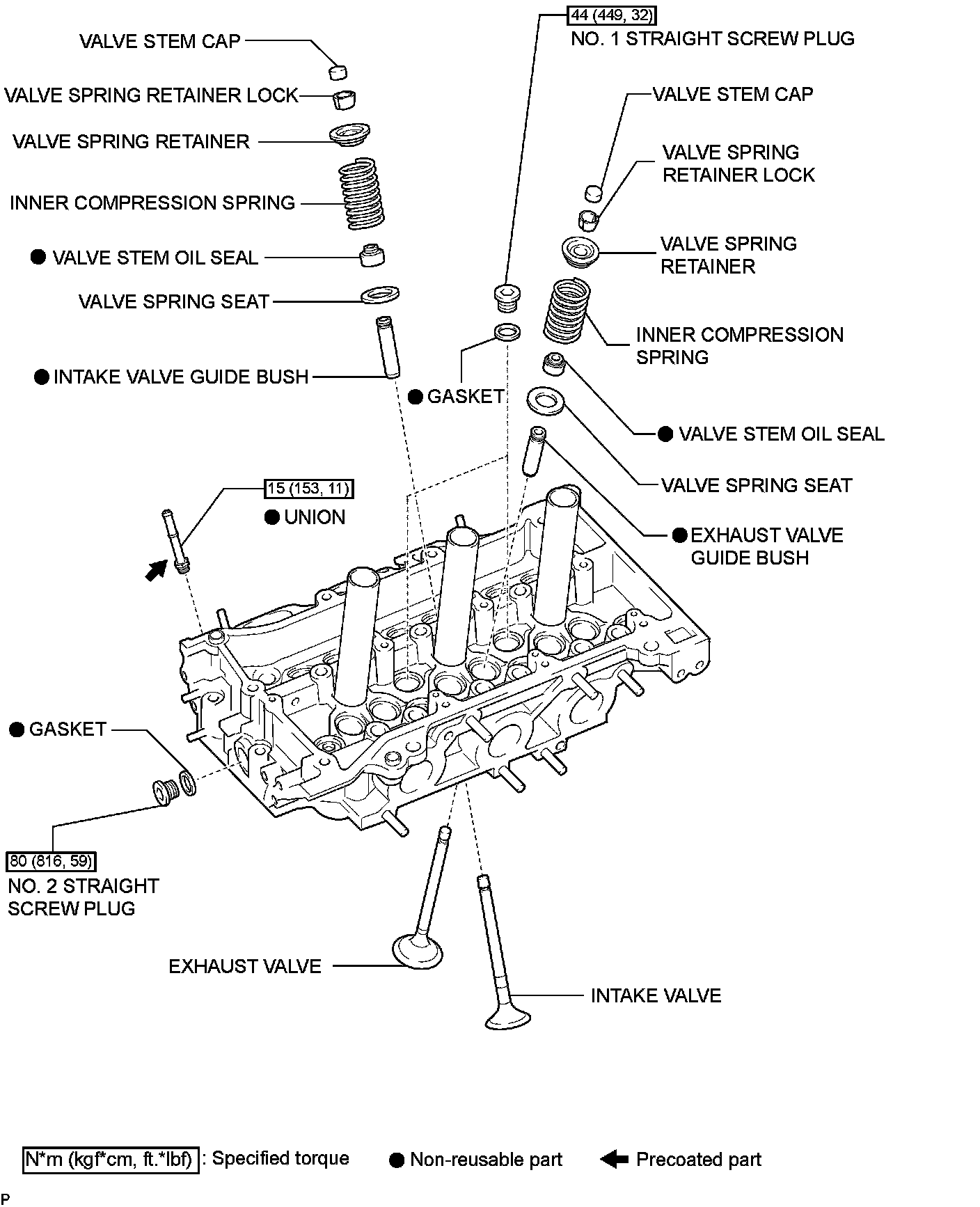

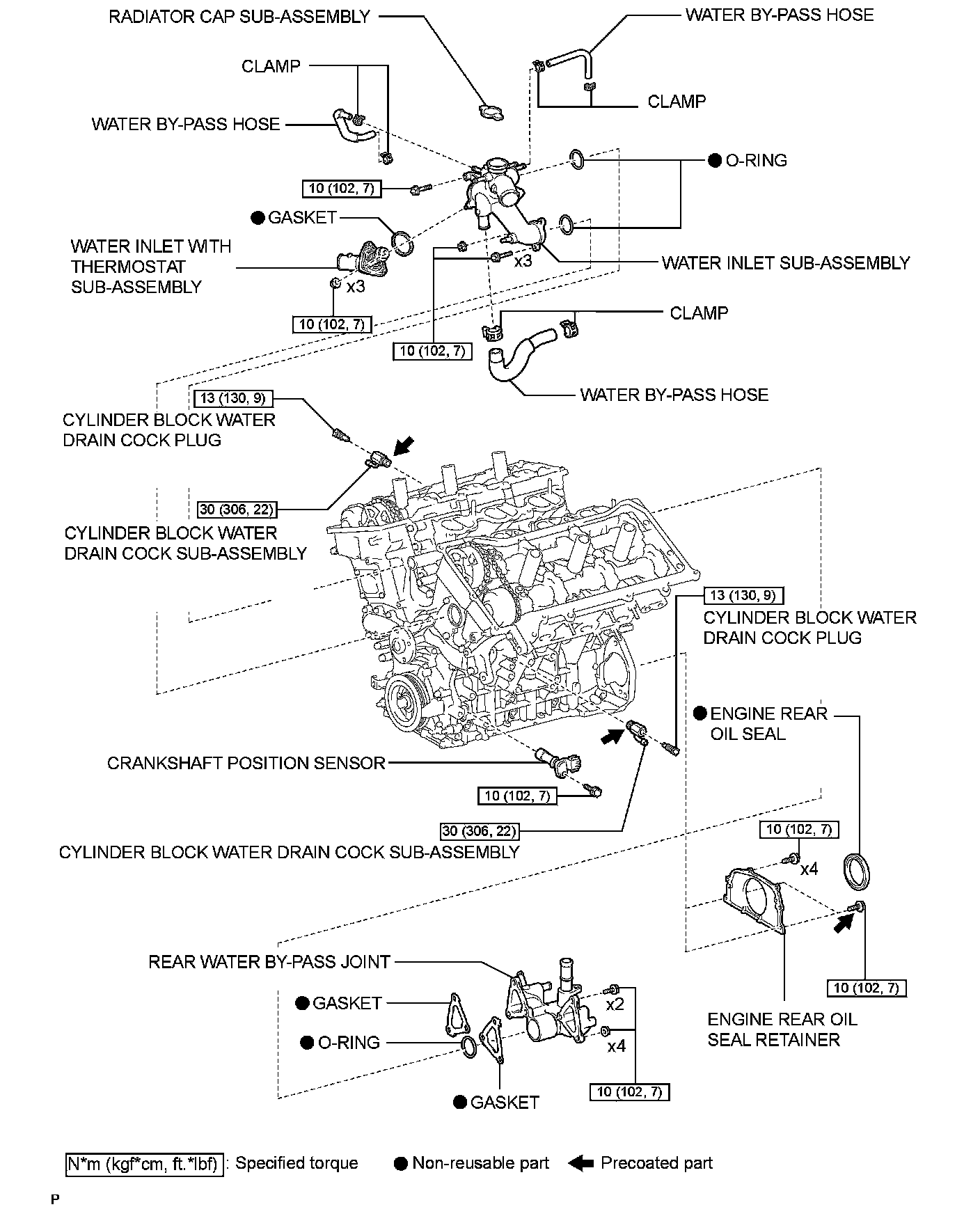

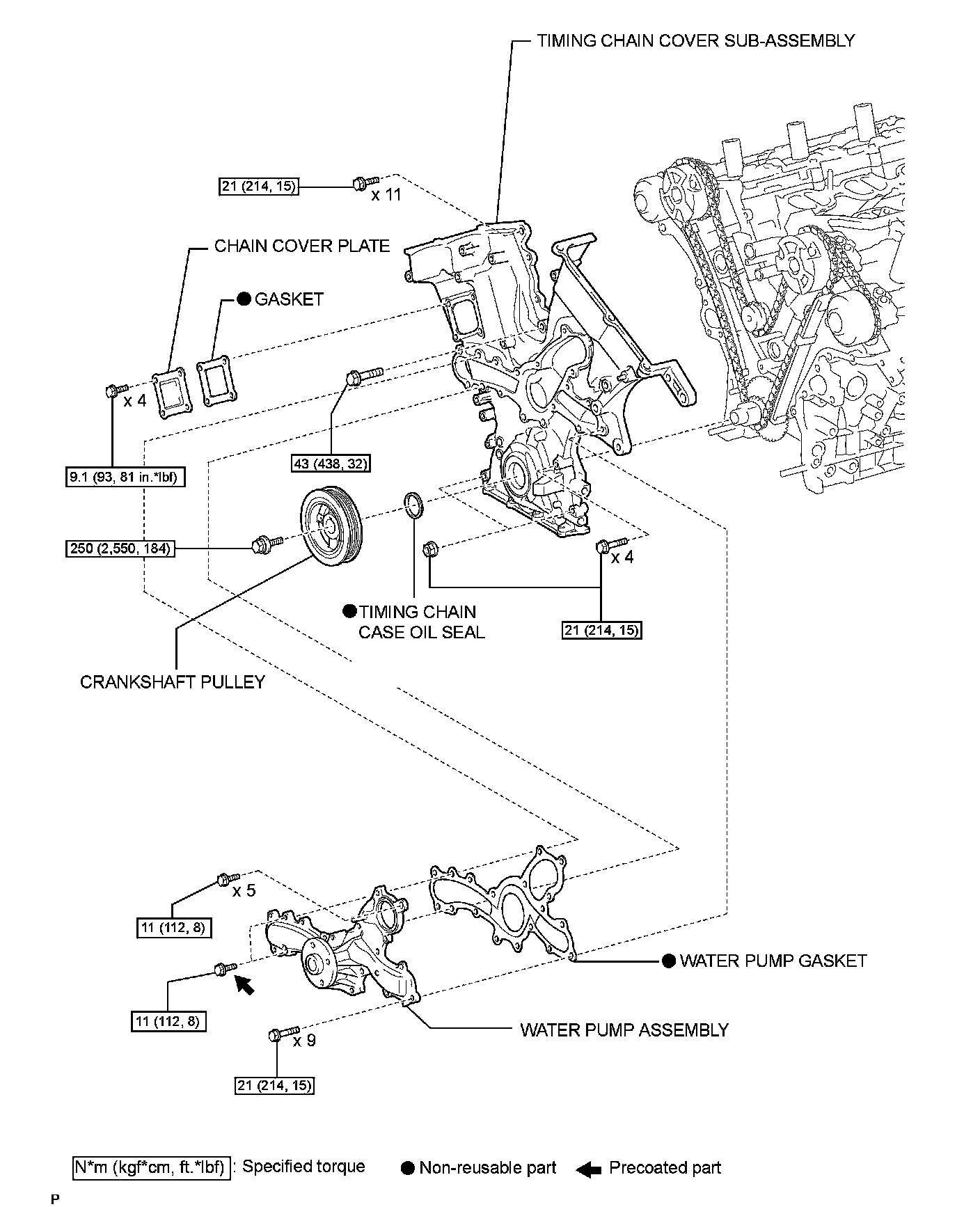

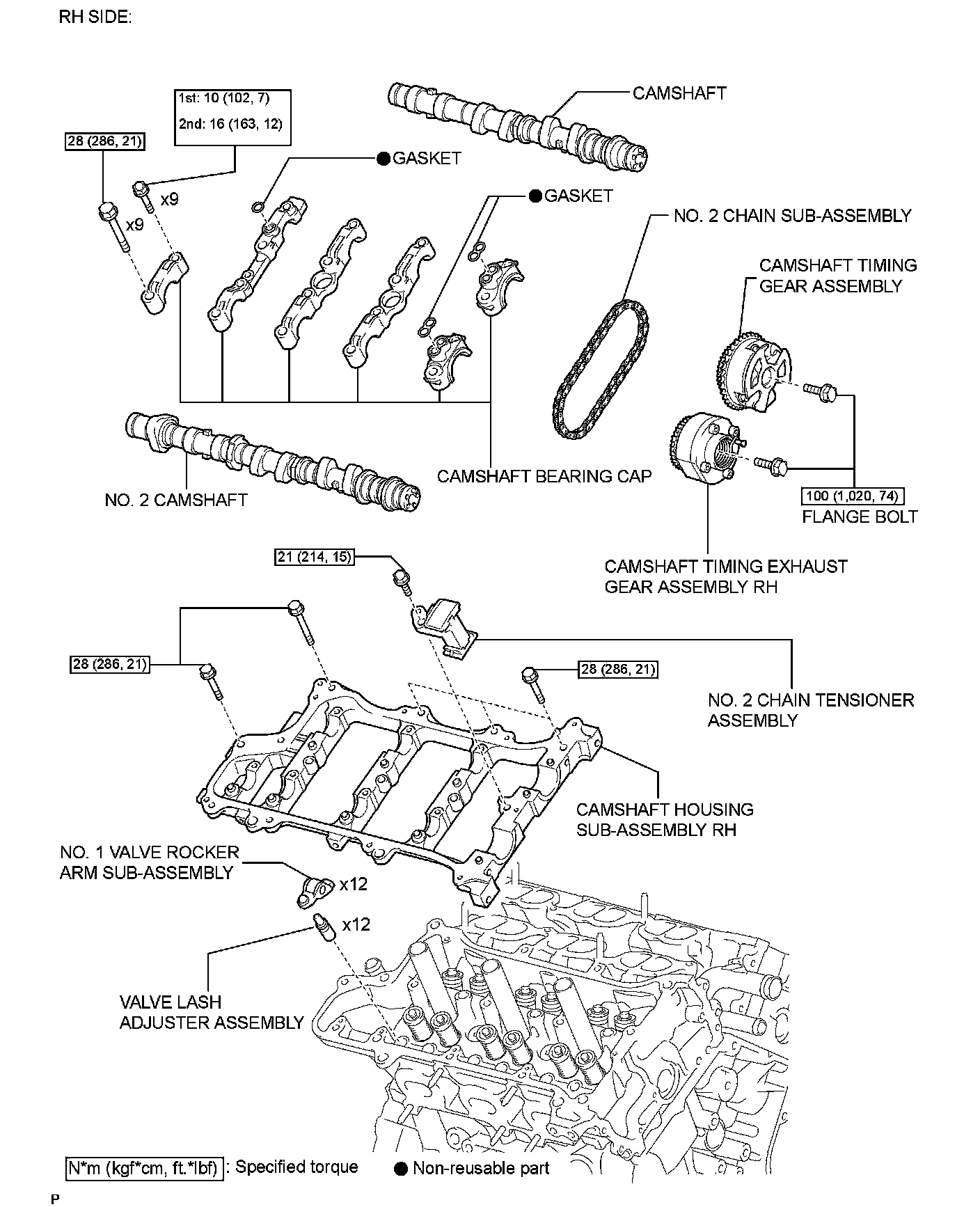

4GR-FSE ENGINE MECHANICAL: ENGINE UNIT: COMPONENTS
