Cylinder Head Assembly: Specifications

Cylinder head bolts

Standard 10.85 to 11.00 mm (0.4272 to 0.4331 in.)
Minimum 10.7 mm (0.4213 in.)
Measuring point 100 mm (3.94 in.)

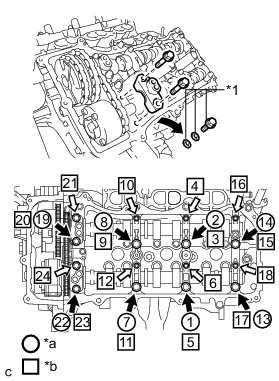

Left:

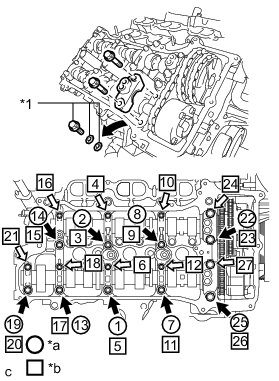

Right:

Step 1 36 Nm (367 kgf-cm, 27 ft-lbf)
Step 2 another 90°
Step 3 additional 90°

Cylinder head sub-assembly

Standard
Cylinder head lower 0.05 mm (0.0020 in.)
Intake 0.08 mm (0.0031 in.)
Exhaust 0.08 mm (0.0031 in.)
Warpage
Maximum 0.10 mm (0.0039 in.)

Camshaft bearing caps








Bolt A - Torque 28 Nm (286 kgf-cm, 21 ft-lbf)
Bolt B - Torque 16 Nm (163 kgf-cm, 12 ft-lbf)
