Road Test

CRUISE CONTROL: DYNAMIC RADAR CRUISE CONTROL SYSTEM: ROAD TEST

1. PROBLEM SYMPTOM CONFIRMATION

HINT
The dynamic radar cruise control system has two cruise control modes: the constant speed control mode and vehicle-to-vehicle distance control mode.

* The vehicle-to-vehicle distance control mode is always selected when starting up the dynamic radar cruise control system.
* Operation of the constant speed control mode is the same as that for a conventional cruise control system.

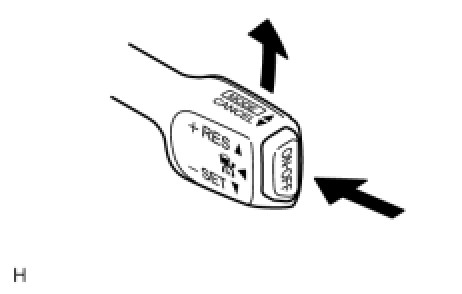

(a) Inspect the SET function.





(1) Turn the main switch on.

(2) Drive at a speed between 50 km/h (30 mph) and 135 km/h (85 mph).

(3) Push the cruise control main switch to - SET.

(4) After releasing the switch, check that the vehicle cruises at the set speed.

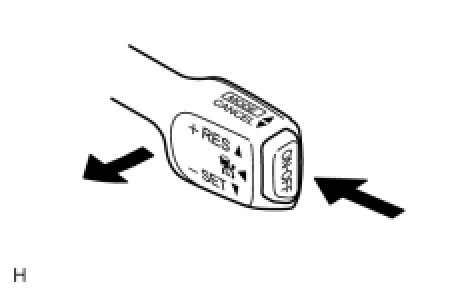

(b) Inspect the ACCELERATION function.





(1) Turn the main switch on.

(2) Drive at a speed between 50 km/h (30 mph) and 135 km/h (85 mph).

(3) Push the cruise control main switch to - SET.

(4) Check that vehicle speed increases while the cruise control main switch is pushed to + RES, and that the vehicle cruises at the newly set speed when the switch is released.

(5) Push the cruise control main switch to + RES and then release it immediately. Check that vehicle speed increases* (tap-up control).

HINT
*: Constant speed control mode: increases by 1.6 km/h (1 mph); vehicle-to-vehicle distance control mode: increases by 5 km/h or 5 mph.

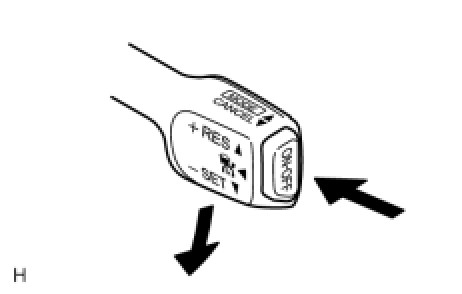

(c) Inspect the - (COAST) function.





(1) Turn the main switch on.

(2) Drive at a speed between 50 km/h (30 mph) and 135 km/h (85 mph).

(3) Push the cruise control main switch to - SET.

(4) Check that vehicle speed decreases while the cruise control main switch is pushed to - SET, and the vehicle cruises at the newly set speed when the switch is released.

(5) Push the cruise control main switch to - SET, and then release it immediately. Check that vehicle speed decreases* (tap-down control).

HINT
*: Constant speed control mode: decreases by 1.6 km/h (1 mph); vehicle-to-vehicle distance control mode: decreases by 5 km/h or 5 mph.

(d) Inspect the CANCEL function.





(1) Turn the main switch on.

(2) Drive at a speed between 50 km/h (30 mph) and 135 km/h (85 mph).

(3) Push the cruise control main switch to - SET.

(4) When performing any one of the following, check that the cruise control system is canceled and that the normal driving mode is reset.

* Depressing the brake pedal

* Moving the shift lever from the D to the N position or selecting the 3rd, 2nd, or 1st range with the shift lever in the S position

* Selecting the 3rd, 2nd, or 1st range with the shift paddle switch.

* Turning the main switch off

* Pulling the cruise control main switch to CANCEL

(e) Inspect the RES (RESUME) function.





(1) Turn the main switch on.

(2) Drive at a speed between 50 km/h (30 mph) and 135 km/h (85 mph).

(3) Push the cruise control main switch to - SET.

(4) Cancel the cruise control system by performing any of the above operations (other than turning the main switch off).

(5) After pushing the cruise control main switch to + RES at a driving speed of more than 40 km/h (25 mph), check that the vehicle resumes the speed set prior to the cancellation.

HINT
The stored vehicle speed is retained even if vehicle speed drops below 40 km/h (25 mph) once. The previously stored vehicle speed can be resumed by pushing the cruise control main switch to + (ACCEL)/RES (RESUME) when vehicle speed returned to approximately 40 km/h (25 mph) or more.
