Memory Positioning Switch: Testing and Inspection

SEAT: SEAT MEMORY SWITCH: INSPECTION

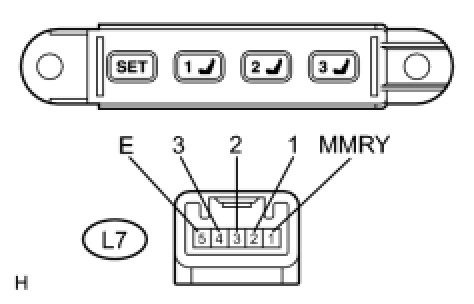

1. INSPECT SEAT MEMORY SWITCH LH

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





(b) If the result is not as specified, replace the switch.

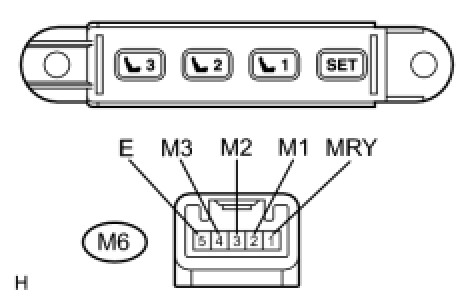

2. INSPECT SEAT MEMORY SWITCH RH

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





(b) If the result is not as specified, replace the switch.
