Installation

INTERIOR: REAR CONSOLE BOX: INSTALLATION

1. INSTALL CONSOLE BOX Installation

2. INSTALL CONSOLE BOX REGISTER ASSEMBLY Installation

3. INSTALL FRONT ASH RECEPTACLE ASSEMBLY Installation

4. INSTALL INSTRUMENT PANEL CUP HOLDER (for Automatic Transmission)

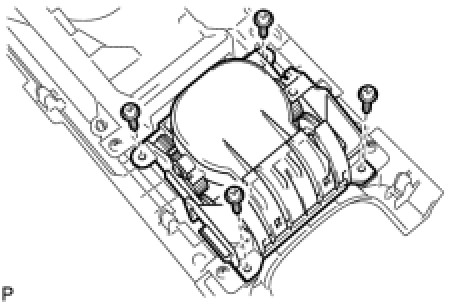

(a) Install the instrument panel cup holder with the 4 screws.





5. INSTALL INSTRUMENT PANEL CUP HOLDER (for Manual Transmission)

(a) Install the instrument panel cup holder with the 4 screws.





6. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) Installation

7. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) Installation

8. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) Installation

9. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission) Installation

10. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission) Installation

11. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)

12. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
