Intuitive Parking Assist System

PARK ASSIST / MONITORING: INTUITIVE PARKING ASSIST SYSTEM: DATA LIST / ACTIVE TEST

1. READ DATA LIST

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Operate the Techstream according to the display and select "Data List".













2. PERFORM ACTIVE TEST

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Following the display on the Techstream, perform the "Active Test".

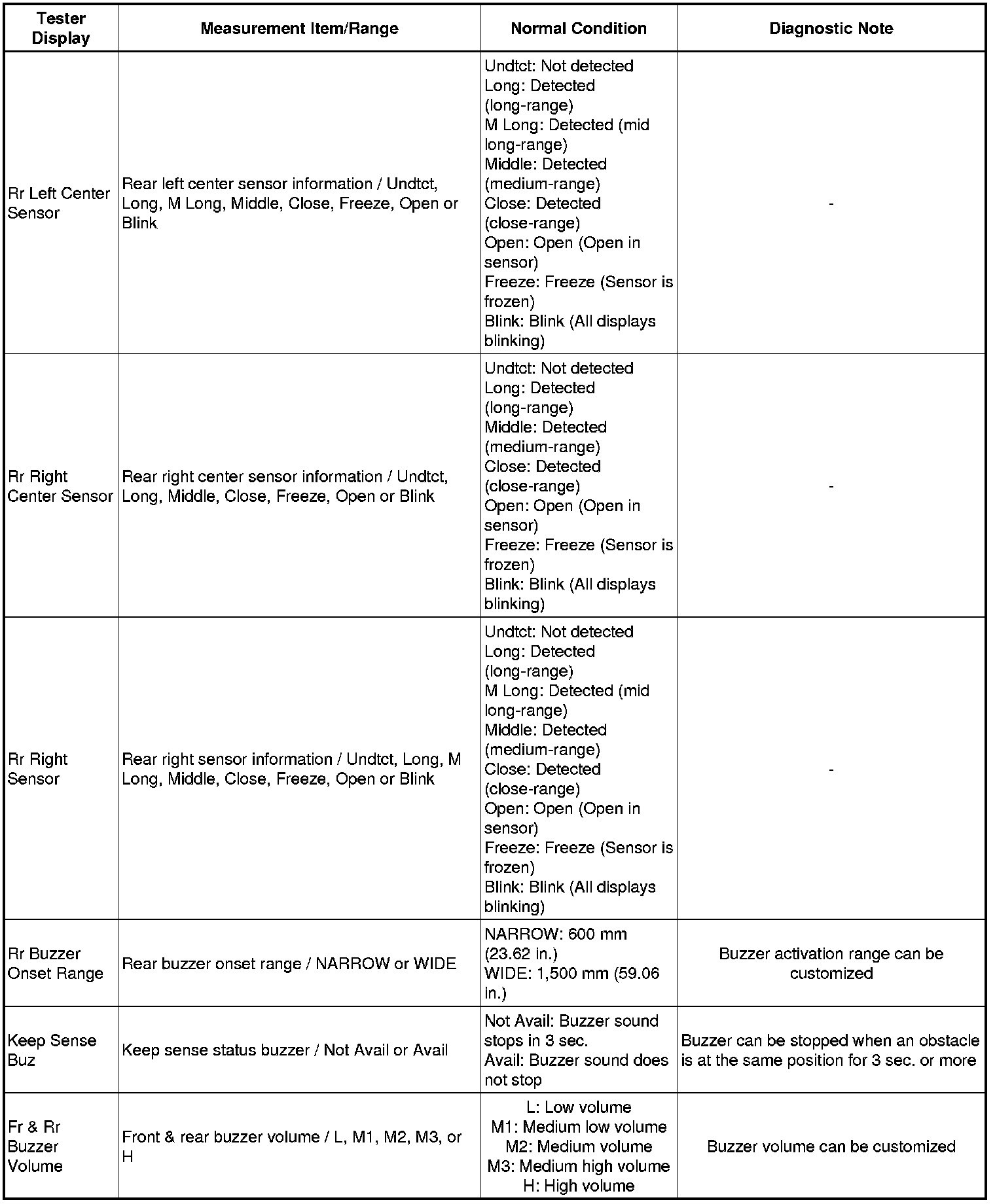

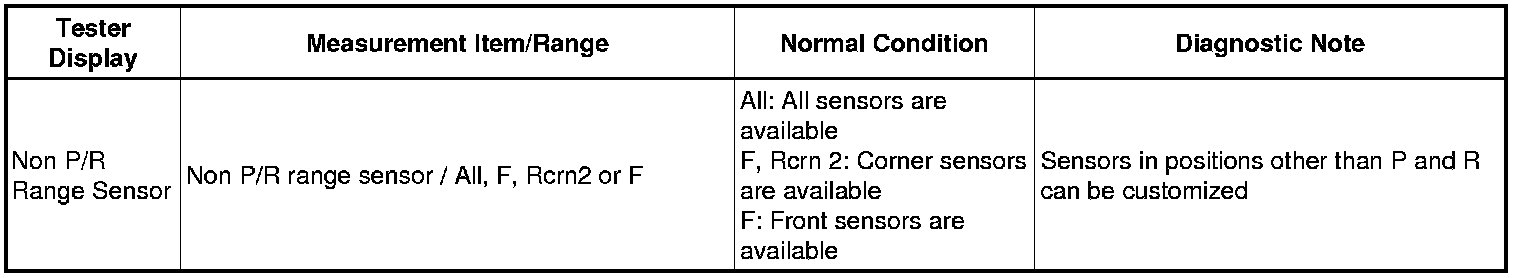

Clearance warning ECU::
