Installation

PARK ASSIST / MONITORING: ULTRASONIC SENSOR: INSTALLATION

1. INSTALL NO. 1 ULTRASONIC SENSOR

(a) Install the No. 1 ultrasonic sensor to the rear bumper.

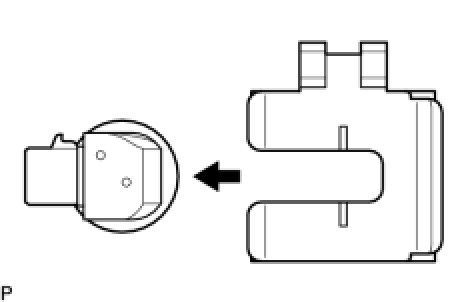

(b) Install the sensor retainer as shown in the illustration.





(c) Connect the sensor connector.

2. INSTALL NO. 2 ULTRASONIC SENSOR

(a) Install the No. 2 ultrasonic sensor to the rear bumper.

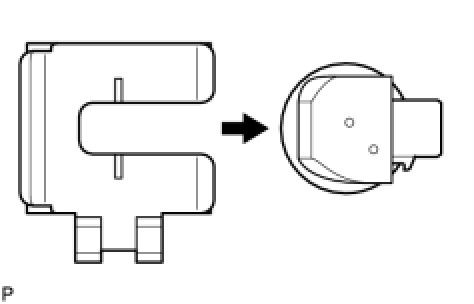

(b) Install the sensor retainer as shown in the illustration.





(c) Connect the sensor connector.

3. INSTALL REAR BUMPER ASSEMBLY Installation

4. INSTALL REAR BUMPER PLATE Installation

5. CONNECT LUGGAGE ROOM WIRE Installation

6. INSTALL SIDE LUGGAGE COMPARTMENT TRIM COVER Installation

7. INSTALL LUGGAGE COMPARTMENT TRIM HOOK Installation

8. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER Installation

9. INSTALL ROPE HOOK Installation

10. INSTALL ROOM LIGHT ASSEMBLY Installation

11. INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER Installation

12. INSTALL ROPE HOOK ASSEMBLY Installation

13. INSTALL DECK SIDE TRIM BOX RH

14. INSTALL DECK SIDE TRIM BOX LH

15. INSTALL LUGGAGE COMPARTMENT TRIM COVER

16. INSTALL NO. 1 ULTRASONIC SENSOR

(a) Install the No. 1 ultrasonic sensor to the front bumper.

(b) Install the sensor retainer as shown in the illustration.





(c) Connect the sensor connector.

17. INSTALL FRONT BUMPER ASSEMBLY Installation

18. INSTALL RADIATOR GRILLE PROTECTOR Installation

19. INSTALL COOL AIR INTAKE DUCT SEAL Installation

20. VEHICLE PREPARATION FOR FOG LIGHT AIM Adjustments

21. PREPARATION FOR FOG LIGHT AIMING Adjustments

22. FOG LIGHT AIMING INSPECTION Adjustments

23. FOG LIGHT AIMING ADJUSTMENT Adjustments
