Installation

CRUISE CONTROL: MILLIMETER WAVE RADAR SENSOR: INSTALLATION

1. INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY

(a) Tighten the 3 bolts on the millimeter wave radar sensor assembly.





Torque : 5.5 Nm (56 kgf-cm, 49 in-lbf)

HINT

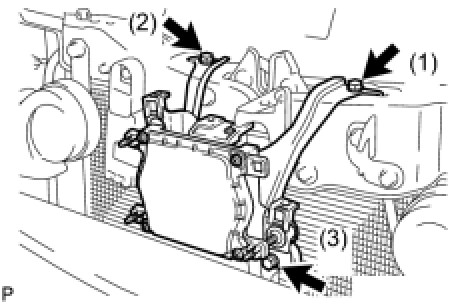

Tighten the bolts in the order indicated in the illustration.

(b) Connect the connector.

2. INSTALL FRONT BUMPER ASSEMBLY

3. INSTALL RADIATOR GRILLE PROTECTOR

4. INSTALL COOL AIR INTAKE DUCT SEAL

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

6. ADJUST MILLIMETER WAVE RADAR SENSOR Adjustments

7. ADJUST FOG LIGHT AIM Adjustments
