Installation

ENGINE IMMOBILIZER: CERTIFICATION ECU: INSTALLATION

1. INSTALL CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

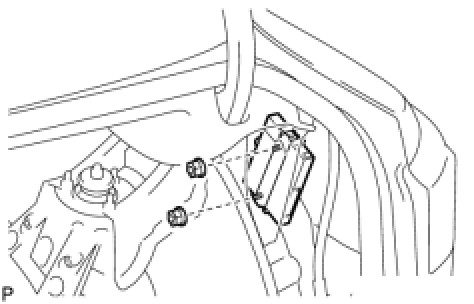

(a) Install the certification ECU (smart key ECU assembly) with the 2 nuts.





(b) Connect the connector.

2. INSTALL SIDE LUGGAGE COMPARTMENT TRIM COVER

3. INSTALL LUGGAGE COMPARTMENT TRIM HOOK

4. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER

5. INSTALL ROPE HOOK

6. INSTALL ROOM LIGHT ASSEMBLY

7. INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER

8. INSTALL ROPE HOOK ASSEMBLY

9. INSTALL DECK SIDE TRIM BOX LH

10. INSTALL DECK SIDE TRIM BOX RH

11. INSTALL LUGGAGE COMPARTMENT TRIM COVER

12. REGISTER ECU COMMUNICATION ID

NOTICE:
When replacing the certification ECU (smart key ECU assembly), perform initialization Engine Immobilizer System.

13. REGISTER KEY

NOTICE:
When replacing the certification ECU (smart key ECU assembly), perform initialization Engine Immobilizer System.
