A760E Automatic Transmission

A760E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION SYSTEM: P2759: Torque Converter Clutch Pressure Control Solenoid Control Circuit Electrical (Shift Solenoid Valve SLU)
P2759 - Torque Converter Clutch Pressure Control Solenoid Control Circuit Electrical (Shift Solenoid Valve SLU)

DESCRIPTION

The amount of current flow to the solenoid is controlled by the (*) duty ratio of the ECM output signal. The higher the duty ratio becomes, the higher the lock-up hydraulic pressure becomes during the lock-up operation.





(*) Duty Ratio

The duty ratio is the ratio of the period of continuity in one cycle. For example, if A is the period of continuity in one cycle, and B is the period of non-continuity, then Duty Ratio = A/(A+B) x 100(%).

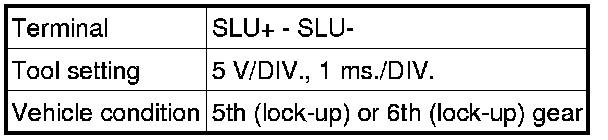

Reference (Using an oscilloscope):

Check the waveform between the terminals SLU+ and SLU- of the ECM connector





Standard:

Refer to the illustration.





MONITOR DESCRIPTION

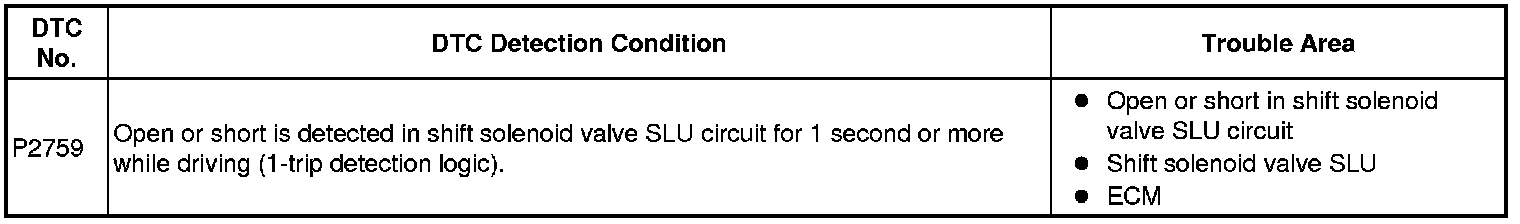

When an open or short in a shift solenoid valve (SLU) circuit is detected, the ECM determines there is a malfunction. The ECM will turn on the MIL and store this DTC.

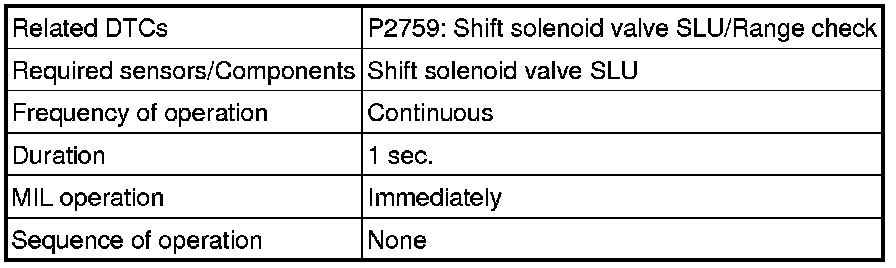

MONITOR STRATEGY

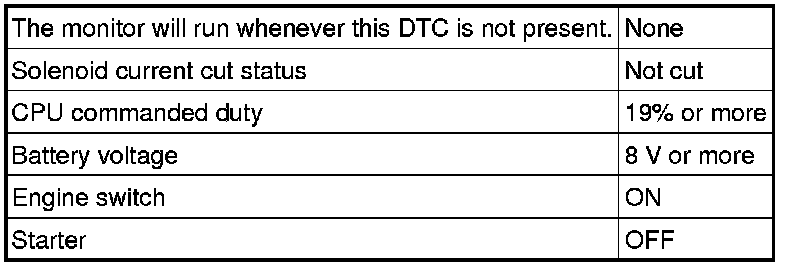

TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





COMPONENT OPERATING RANGE





WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Perform the universal trip to clear permanent DTCs .

PROCEDURE

1. INSPECT TRANSMISSION WIRE (SLU)

(a) Disconnect the transmission wire connector from the transmission.

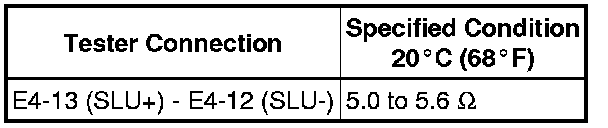

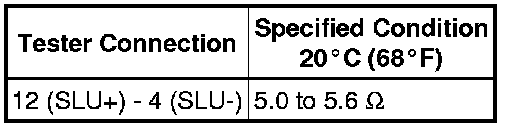

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:

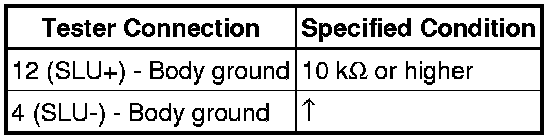

(c) Measure the resistance according to the value(s) in the table below.

Standard resistance (Check for short):





NG -- INSPECT SHIFT SOLENOID VALVE SLU
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE - ECM)

(a) Connect the transmission wire connector to the transmission.





(b) Disconnect the ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard resistance:

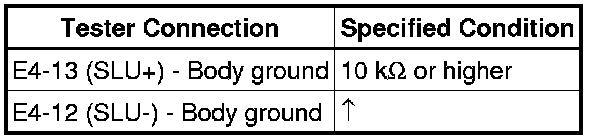

(d) Measure the resistance according to the value(s) in the table below.

Standard resistance (Check for short):





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE ECM

3. INSPECT SHIFT SOLENOID VALVE SLU

(a) Remove the shift solenoid valve SLU.

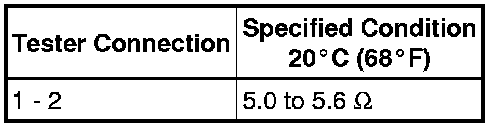

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





(c) Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the valve.

OK:

The solenoid makes an operating sound.

NG -- REPLACE SHIFT SOLENOID VALVE SLU

OK -- REPAIR OR REPLACE TRANSMISSION WIRE
