P1615

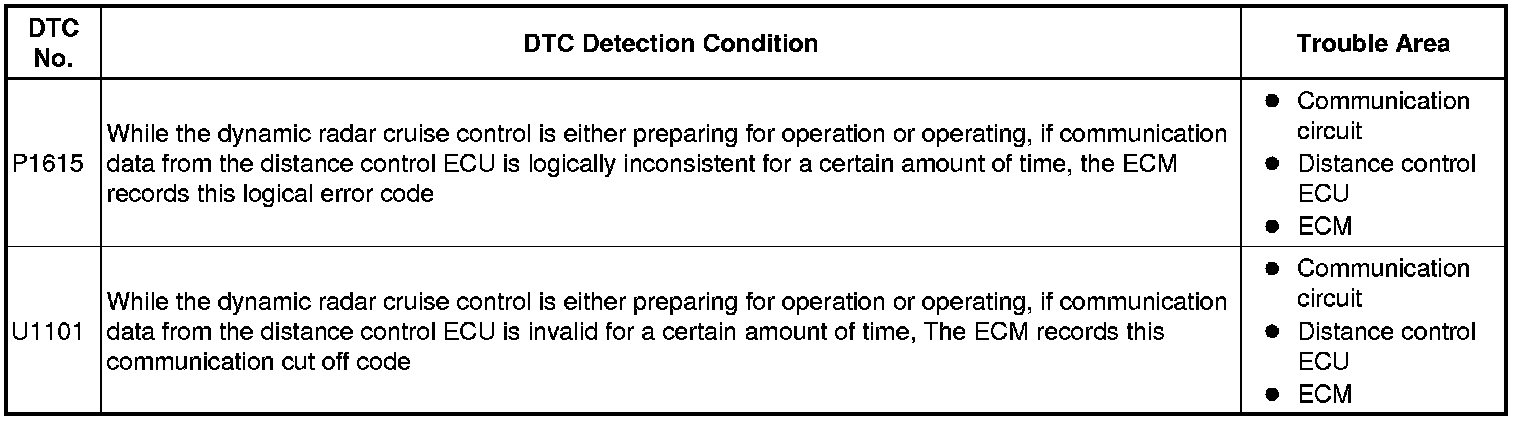

CRUISE CONTROL: DYNAMIC RADAR CRUISE CONTROL SYSTEM: P1615,U1101: Communication Error from Distance Control ECU to ECM
U1101 - Lost Communication with Distance Control ECU

DESCRIPTION

The distance control ECU receives information about the area in front of the vehicle from the millimeter wave radar sensor and then sends a brake control demand signal (deceleration demand) and diagnosis signals, such as millimeter wave radar sensor grime signals or millimeter wave radar sensor malfunction signals, to the ECM.





INSPECTION PROCEDURE

HINT
This circuit uses CAN communication. Therefore, if there are any malfunctions in the communication circuit, one or more DTCs in the CAN communication system are output.

1. CHECK CAN COMMUNICATION SYSTEM

Refer to HOW TO PROCEED WITH TROUBLESHOOTING How to Proceed With Troubleshooting.
