NAVIGATION: NAVIGATION SYSTEM (for HDD): DIAGNOSTIC TROUBLE CODE CHART

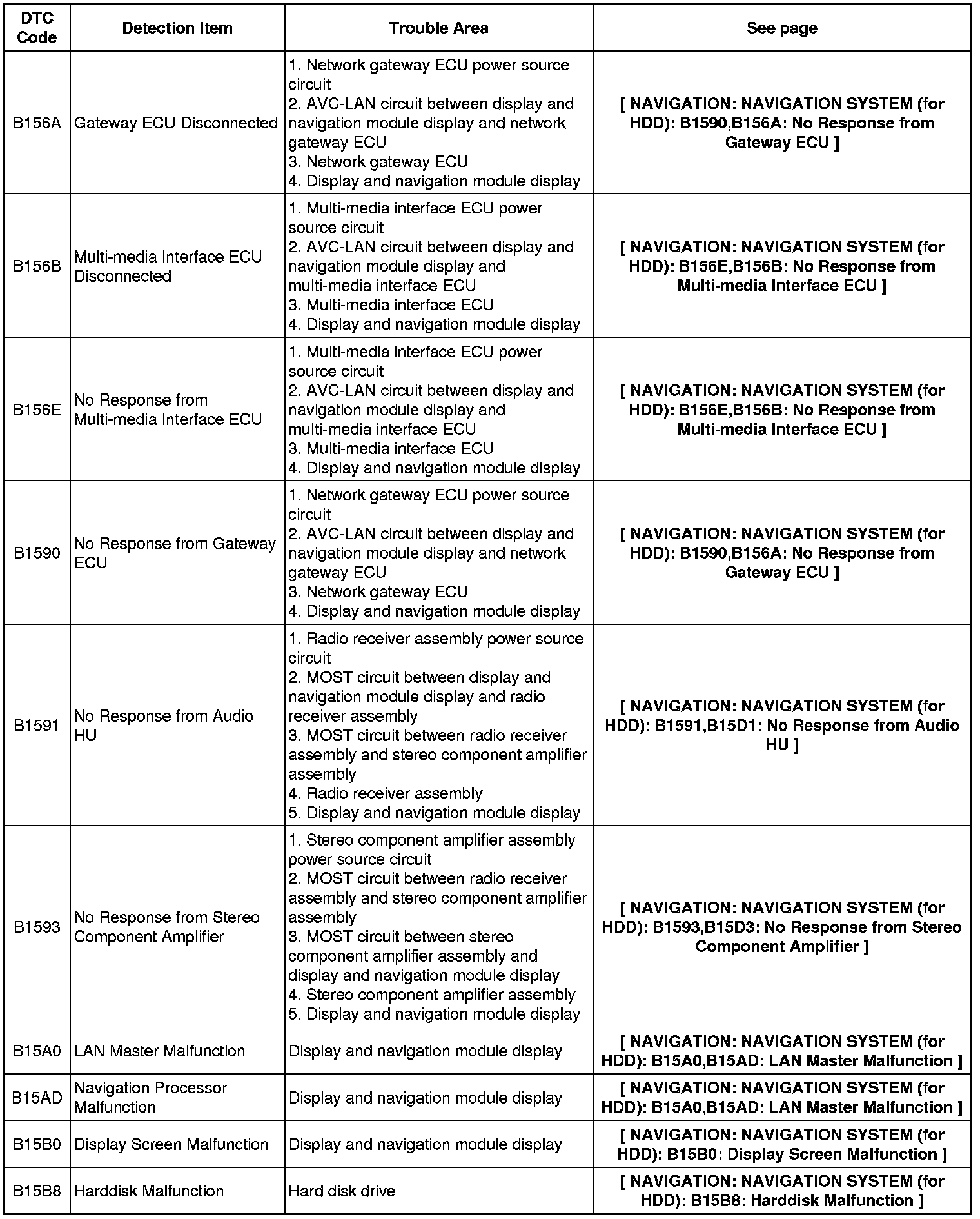

B156A - B15B8:

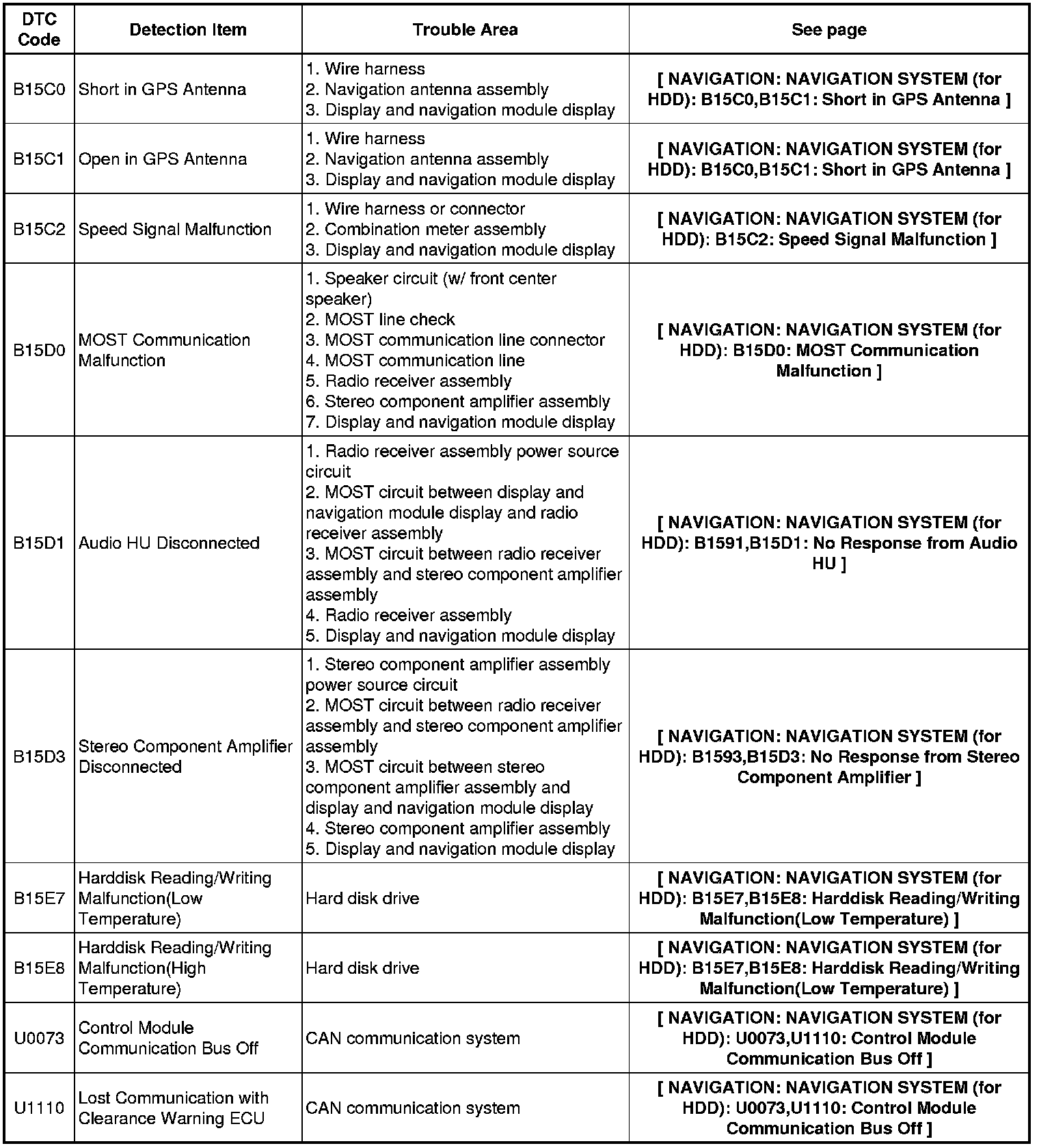

B15C0 - B15E8 / U0073 - U1110:
