B2060

PRE-COLLISION: PRE-COLLISION SYSTEM: B2060: ABS Malfunction
B2060 - ABS Malfunction

DESCRIPTION

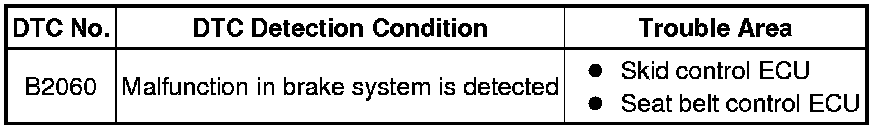

This DTC is output when a malfunction in the vehicle stability control system is detected. This circuit consists of the skid control ECU and seat belt control ECU. Signals are sent from the skid control ECU using the CAN communication.





INSPECTION PROCEDURE

NOTICE:
When the seat belt control ECU is replaced with a new one, INITIALIZATION must be performed Pre-Collision System.

PROCEDURE

1. CHECK DTC OUTPUT (CAN COMMUNICATION SYSTEM)

(a) Clear the DTCs Pre-Collision System.

(b) Recheck for DTCs.

OK:

CAN communication system DTC is not output.

NG -- GO TO CAN COMMUNICATION SYSTEM How to Proceed With Troubleshooting
OK -- Continue to next step.

2. CHECK DTC OUTPUT (VEHICLE STABILITY CONTROL SYSTEM)

(a) Check DTC for vehicle stability control system Reading and Clearing Diagnostic Trouble Codes.

OK:

DTC is not output.

NG -- GO TO VEHICLE STABILITY CONTROL SYSTEM Diagnostic Trouble Code Descriptions
OK -- Continue to next step.

3. CHECK DTC OUTPUT (PRE-COLLISION SYSTEM)

(a) Clear the DTCs Pre-Collision System.

(b) Recheck for DTCs.

OK:

DTC B2060 is not output.

NG -- REPLACE SEAT BELT CONTROL ECU

OK -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
