B2007
PRE-COLLISION: PRE-COLLISION SYSTEM: B2007: Open in Seat Belt Motor LH Circuit

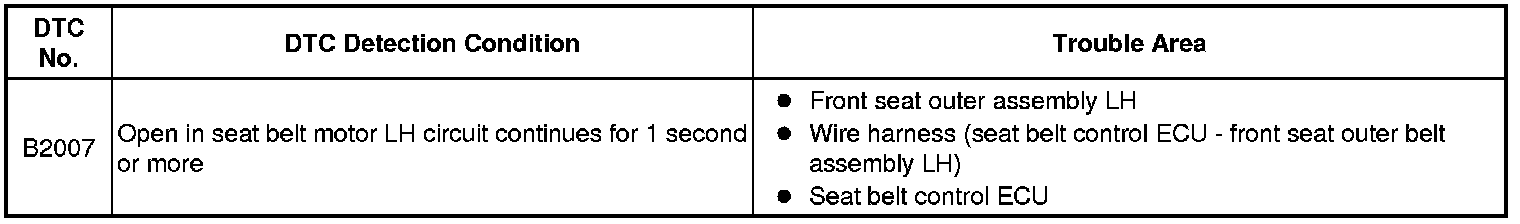

B2007 - Open in Seat Belt Motor LH Circuit
DESCRIPTION
The seat belt control ECU receives information from the distance control ECU using CAN communication and tightens the seat belt by operating the motor in the front seat outer belt assembly LH.
CAUTION:
The pretensioner is built into the front seat outer belt assembly LH. Be sure to follow the correct inspection procedure, as failure to follow the correct procedure (such as inspection of incorrect connectors) may deploy the pretensioner.

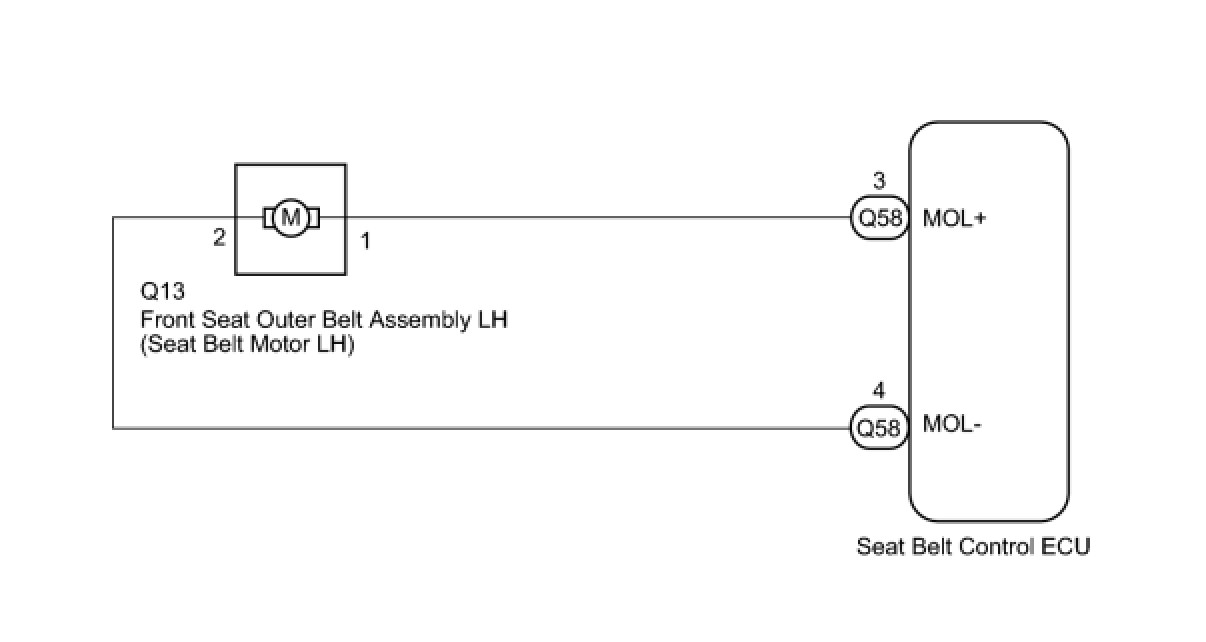

WIRING DIAGRAM
INSPECTION PROCEDURE
NOTICE:
When the seat belt control ECU is replaced with a new one, INITIALIZATION must be performed Pre-Collision System.
PROCEDURE
1. INSPECT FRONT SEAT OUTER BELT ASSEMBLY LH

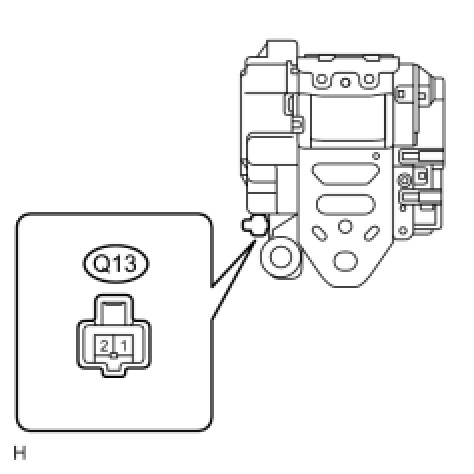

(a) Disconnect the connector Q13 of the front seat outer belt assembly LH.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:
(c) Reconnect the Q13 connector of the front seat outer belt assembly LH.
NG -- REPLACE FRONT SEAT OUTER BELT ASSEMBLY LH Removal
OK -- Continue to next step.
2. CHECK HARNESS AND CONNECTOR (FRONT SEAT OUTER BELT ASSEMBLY LH - SEAT BELT CONTROL ECU)
(a) Disconnect the negative (-) battery terminal.
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
(b) Disconnect the Q13 connector of the front seat outer belt assembly LH.
(c) Disconnect the connector Q58 of the seat belt control ECU.

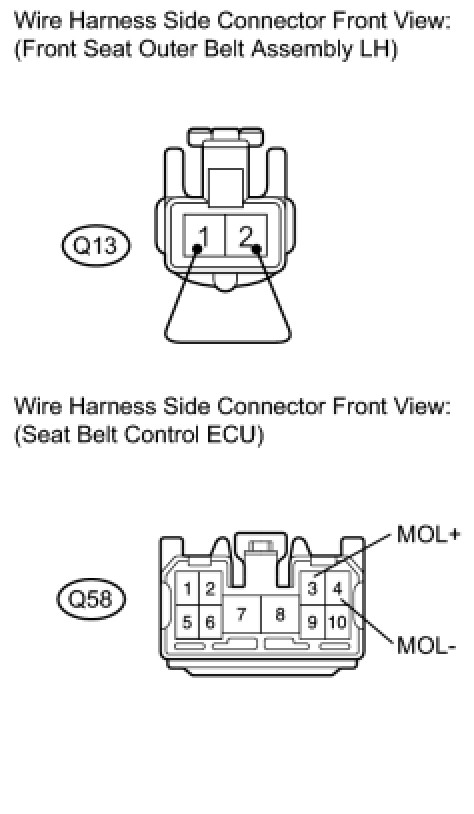

(d) Using a service wire, connect Q13-1 and Q13-1 of the connector on the front seat outer belt assembly LH.
NOTICE:
Do not forcibly insert the service wire into the terminals of the connector.
(e) Measure the resistance according to the value(s) in the table below.
Standard resistance:
(f) Reconnect the Q13 connector of the front seat outer belt assembly LH and Q58 connector of the seat belt control ECU.
(g) Connect the negative (-) battery terminal.
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (FRONT SEAT OUTER BELT ASSEMBLY LH - SEAT BELT CONTROL ECU)
OK -- REPLACE SEAT BELT CONTROL ECU
