Replacement

UF1AE TRANSFER: TRANSFER CASE REAR OIL SEAL: REPLACEMENT

1. DRAIN AUTOMATIC TRANSMISSION FLUID Removal

2. REMOVE REAR NO. 1 FLOOR PANEL BRACE Removal

3. REMOVE FRONT CENTER FLOOR BRACE Removal

4. REMOVE HEATED OXYGEN SENSOR Removal

5. REMOVE FRONT EXHAUST PIPE ASSEMBLY Removal

6. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR Removal

7. REMOVE OUTSIDE AIR GUIDE PLATE RH Removal

8. REMOVE PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY Removal

9. REMOVE TRANSFER CASE REAR OIL SEAL

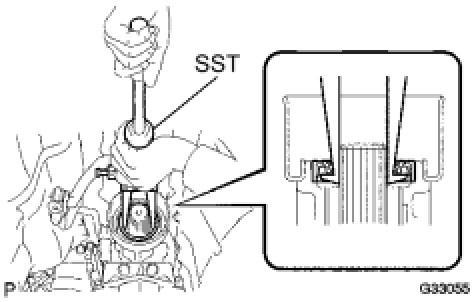

(a) Using SST, remove the oil seal.





SST : 09308-00010

10. INSTALL TRANSFER CASE REAR OIL SEAL

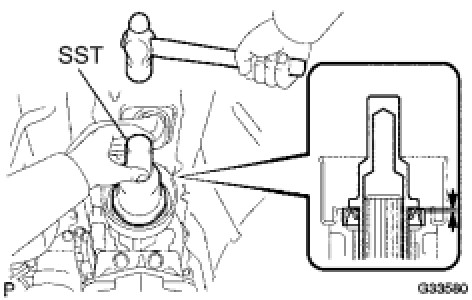

(a) Using SST and a hammer, install a new oil seal.





SST : 09325-40010

Oil seal installation depth:

2.3 to 2.7 mm (0.091 to 0.106 in.)

(b) Apply MP grease to the oil seal lip.

11. INSTALL PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY Installation

12. INSPECT AND ADJUST BOTH NO. 2 AND NO. 3 JOINT ANGLES Installation

13. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR Installation

14. INSTALL OUTSIDE AIR GUIDE PLATE RH Installation

15. INSTALL FRONT EXHAUST PIPE ASSEMBLY Installation

16. INSTALL HEATED OXYGEN SENSOR Installation

17. INSTALL FRONT CENTER FLOOR BRACE Installation

18. INSTALL REAR NO. 1 FLOOR PANEL BRACE Installation

19. ADD AUTOMATIC TRANSMISSION FLUID Installation

20. CHECK FOR EXHAUST GAS LEAKS
