Removal

SUSPENSION: REAR NO. 1 SUSPENSION ARM: REMOVAL

1. REMOVE REAR WHEEL

2. REMOVE NO. 2 DIFFERENTIAL SUPPORT PROTECTOR Removal

3. REMOVE REAR FLOOR SIDE MEMBER COVER

(a) Remove the 2 screws and the rear floor side member cover.





4. REMOVE REAR NO. 1 SUSPENSION ARM

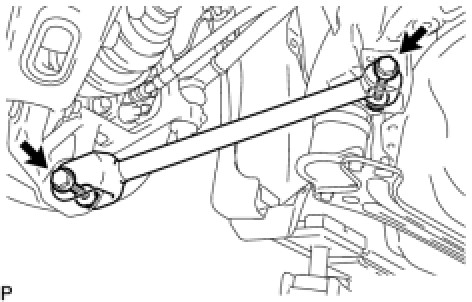

(a) Remove the 2 bolts, 2 nuts, and rear No. 1 suspension arm.





NOTICE:
Turn the bolt while holding the nut.
