Fail-Safe Chart

LIGHTING: LIGHTING SYSTEM: FAIL-SAFE CHART

1. FAIL-SAFE

(a) Light control ECU

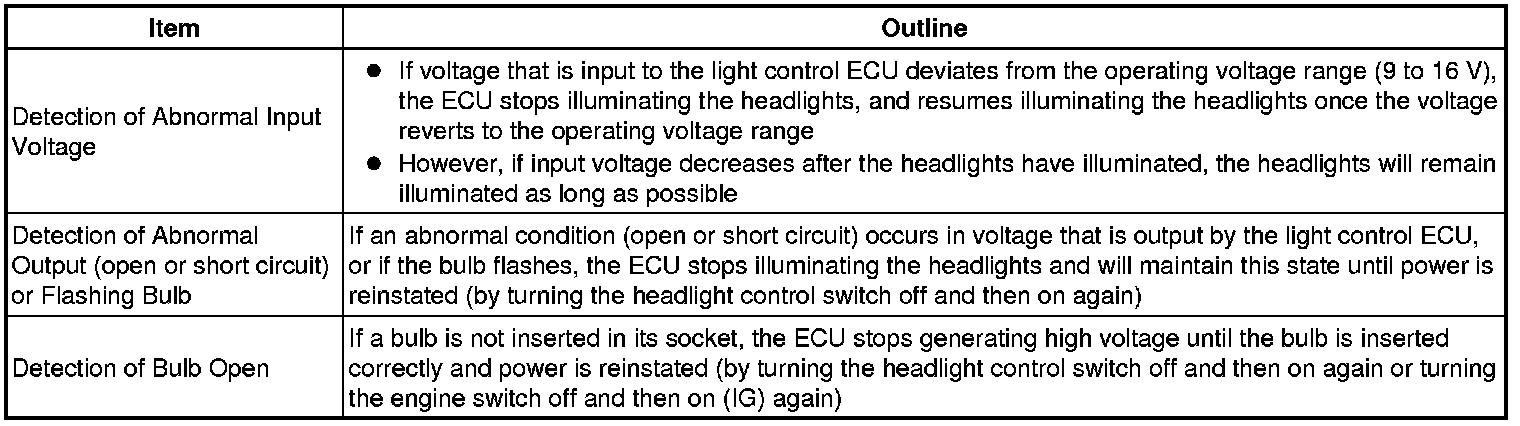

The light control ECU executes the fail-safe actions listed below in accordance with the item that has been detected.





(b) AFS ECU

HINT

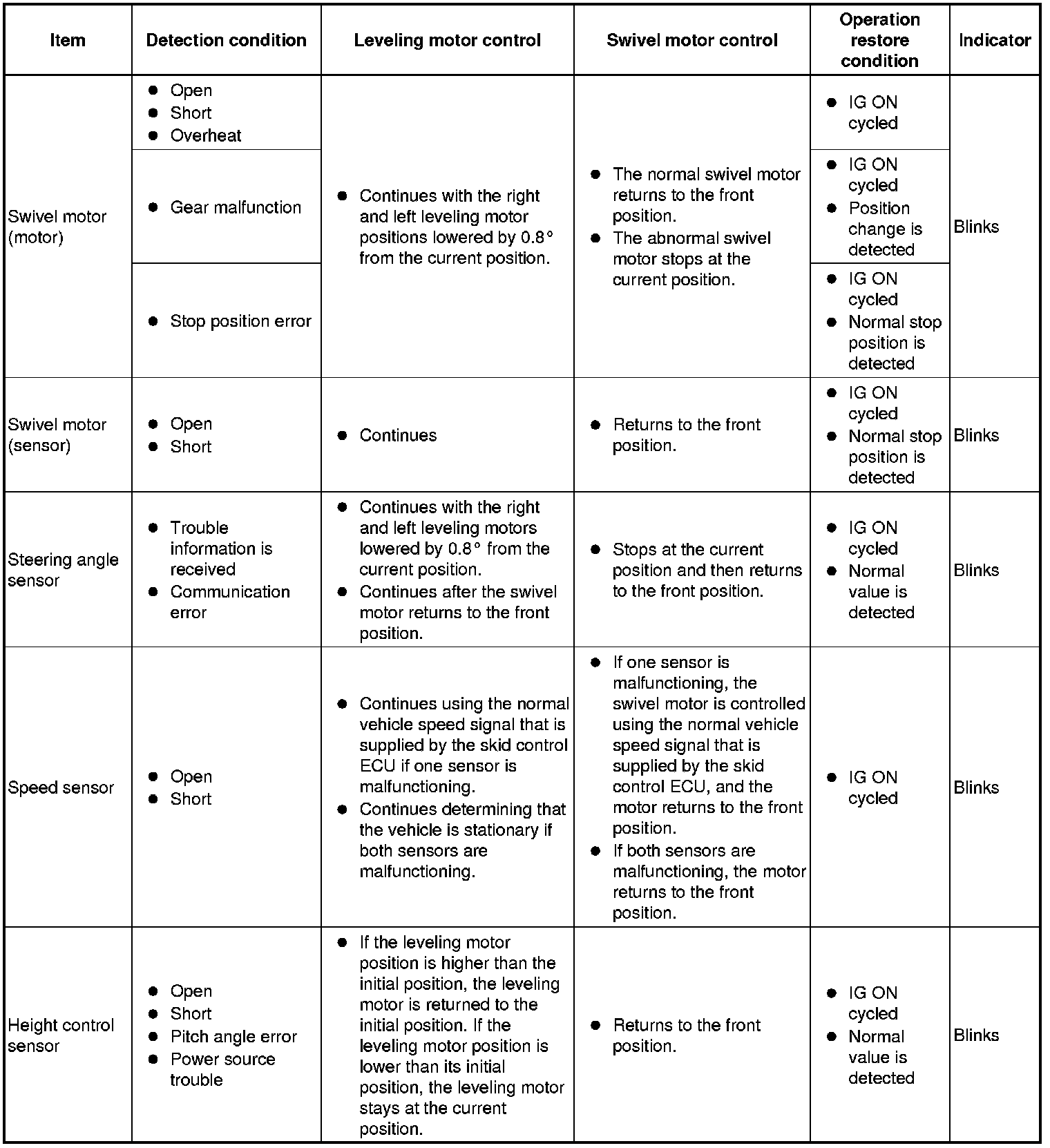

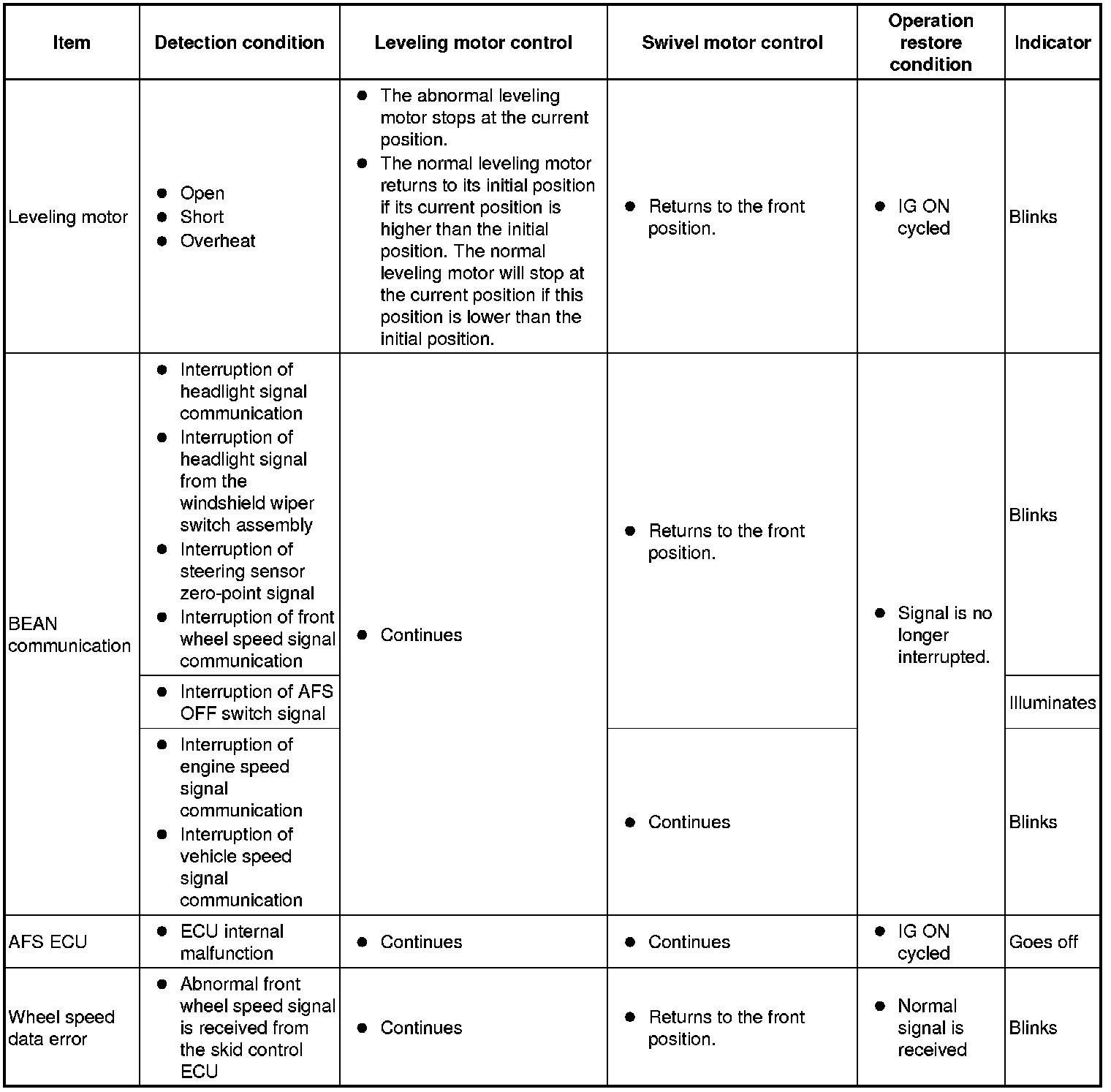

If a malfunction is detected, the headlight swivel ECU assembly (AFS ECU) performs fail-safe operation. Depending on the malfunction, the ECU flashes at 1 Hz intervals or illuminates the AFS OFF indicator in the combination meter assembly. Warning massages are also shown on the multi-information display.
