Installation

EXTERIOR: NAME PLATE: INSTALLATION

HINT
When installing the emblem and name plate, heat the vehicle body, emblem and name plate using a heat light.

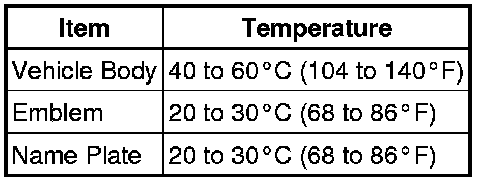

Heating temperature::

NOTICE:
Do not heat the vehicle body, emblem and name plate excessively.

1. INSTALL NO. 3 LUGGAGE COMPARTMENT DOOR PLATE

(a) Clean the vehicle body surface.

(1) Using a heat light, heat the vehicle body surface.

(2) Remove the double-sided tape from the vehicle body.

(3) Wipe off any tape adhesive residue with cleaner.

(b) Clean the No. 3 luggage compartment door plate. (If reusing the No. 3 luggage compartment door plate)

(1) Using a heat light, heat the No. 3 luggage compartment door plate.

(2) Remove the double-sided tape from the No. 3 luggage compartment door plate.

(3) Wipe off any tape adhesive residue with cleaner.

(4) Apply new double-sided tape to the No. 3 luggage compartment door plate.

(c) Install the No. 3 luggage compartment door plate.

(1) Using a heat light, heat the vehicle body and No. 3 luggage compartment door plate.

(2) Remove the peeling paper from the face of the No. 3 luggage compartment door plate.

HINT
After removing the peeling paper, keep the exposed adhesive free from foreign matter.

(3) Install the No. 3 luggage compartment door plate.

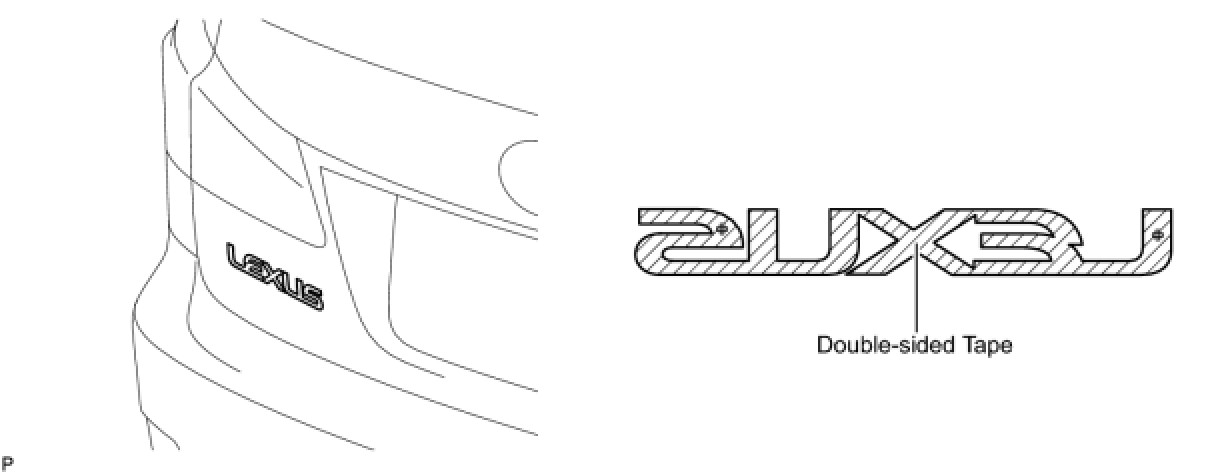

2. INSTALL NO. 1 LUGGAGE COMPARTMENT DOOR NAME PLATE

(a) Clean the vehicle body surface.

(1) Using a heat light, heat the vehicle body surface.

(2) Remove the double-sided tape from the vehicle body.

(3) Wipe off any tape adhesive residue with cleaner.

(b) Clean the No. 1 luggage compartment door name plate. (If reusing the No. 1 luggage compartment door name plate)

(1) Using a heat light, heat the No. 1 luggage compartment door name plate.

(2) Remove the double-sided tape from the No. 1 luggage compartment door name plate.

(3) Wipe off any tape adhesive residue with cleaner.

(4) Apply new double-sided tape to the No. 1 luggage compartment door name plate.

(c) Install the No. 1 luggage compartment door name plate.

(1) Using a heat light, heat the vehicle body and No. 1 luggage compartment door name plate.

(2) Remove the peeling paper from the face of the No. 1 luggage compartment door name plate.

HINT
After removing the peeling paper, keep the exposed adhesive free from foreign matter.

(3) Install the No. 1 luggage compartment door name plate.

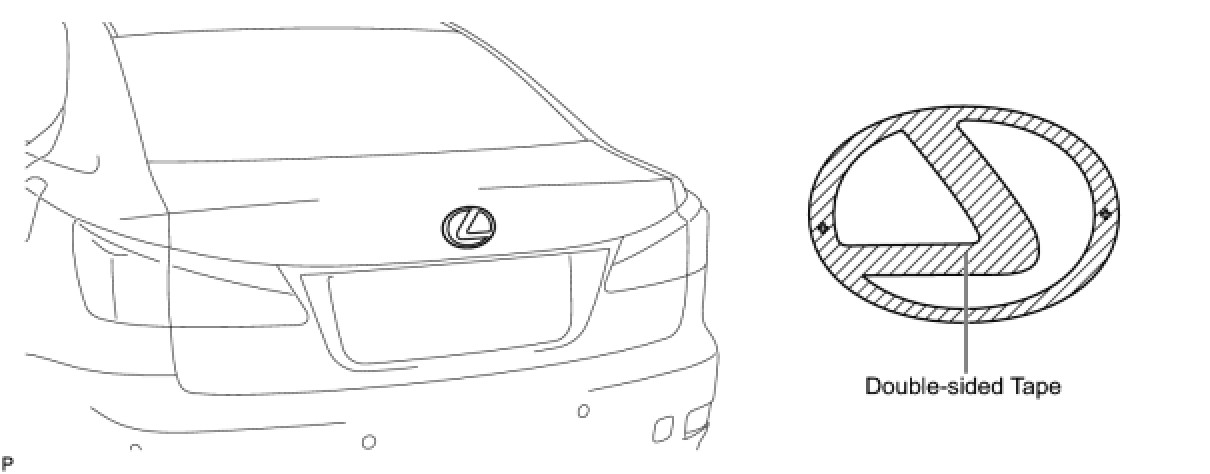

3. INSTALL SYMBOL EMBLEM

(a) Clean the vehicle body surface.

(1) Using a heat light, heat the vehicle body surface.

(2) Remove the double-sided tape from the vehicle body.

(3) Wipe off any tape adhesive residue with cleaner.

(b) Clean the symbol emblem. (If reusing the symbol emblem)

(1) Using a heat light, heat the symbol emblem.

(2) Remove the double-sided tape from the symbol emblem.

(3) Wipe off any tape adhesive residue with cleaner.

(4) Apply new double-sided tape to the symbol emblem.

(c) Install the symbol emblem.

(1) Using a heat light, heat the vehicle body and symbol emblem.

(2) Remove the peeling paper from the face of the symbol emblem.

HINT
After removing the peeling paper, keep the exposed adhesive free from foreign matter.

(3) Install the symbol emblem.
