Starter Relay

1UR-FSE STARTING: STARTER RELAY: ON-VEHICLE INSPECTION

1. INSPECT STARTER RELAY

(a) Measure the resistance according to the value(s) in the table below.

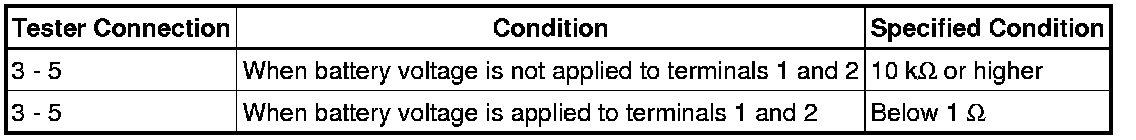

Standard resistance:





(a) If the resistance is not as specified, replace the relay.
