AA80E AUTOMATIC TRANSMISSION: VALVE BODY ASSEMBLY: INSPECTION

1. INSPECT SHIFT SOLENOID VALVE SL1

(a) Measure the resistance of the shift solenoid valve.





Standard resistance:





(a) If the resistance is not within the specified range, replace the shift solenoid valve SL1.

(b) Connect the battery's positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector. Then check that the valve moves and makes an operating noise.

OK:

Valve moves and makes operating noise.

2. INSPECT SHIFT SOLENOID VALVE SL2

(a) Measure the resistance of the shift solenoid valve.





Standard resistance:





(a) If the resistance is not within the specified range, replace the shift solenoid valve SL2.

(b) Connect the battery's positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector. Then check that the valve moves and makes an operating noise.

OK:

Valve moves and makes operating noise.

3. INSPECT SHIFT SOLENOID VALVE SL3

(a) Measure the resistance of the shift solenoid valve.





Standard resistance:





(a) If the resistance is not within the specified range, replace the shift solenoid valve SL3.

(b) Connect the battery's positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector. Then check that the valve moves and makes an operating noise.

OK:

Valve moves and makes operating noise.

4. INSPECT SHIFT SOLENOID VALVE SL4

(a) Measure the resistance of the shift solenoid valve.





Standard resistance:





(a) If the resistance is not within the specified range, replace the shift solenoid valve SL4.

(b) Connect the battery's positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector. Then check that the valve moves and makes an operating noise.

OK:

Valve moves and makes operating noise.

5. INSPECT SHIFT SOLENOID VALVE SL5

(a) Measure the resistance of the shift solenoid valve.





Standard resistance:





(a) If the resistance is not within the specified range, replace the shift solenoid valve SL5.

(b) Connect the battery's positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector. Then check that the valve moves and makes an operating noise.

OK:

Valve moves and makes operating noise.

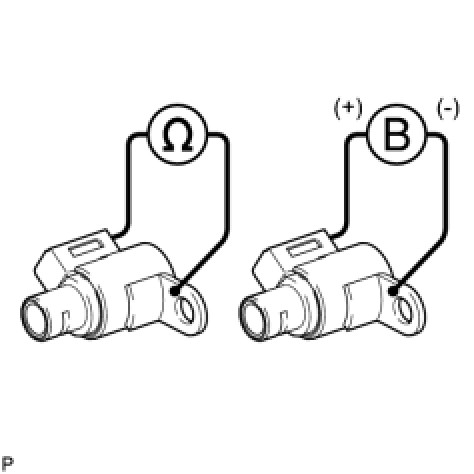

6. INSPECT SHIFT SOLENOID VALVE SL

(a) Measure the resistance of the shift solenoid valve.





Standard resistance:





(a) If the resistance is not within the specified range, replace the shift solenoid valve SL.

(b) Connect the battery's positive (+) lead to the terminal of the solenoid valve connector, and the negative (-) lead to the solenoid body. Then check that the valve moves and makes an operating noise.

OK:

Valve moves and makes operating noise.

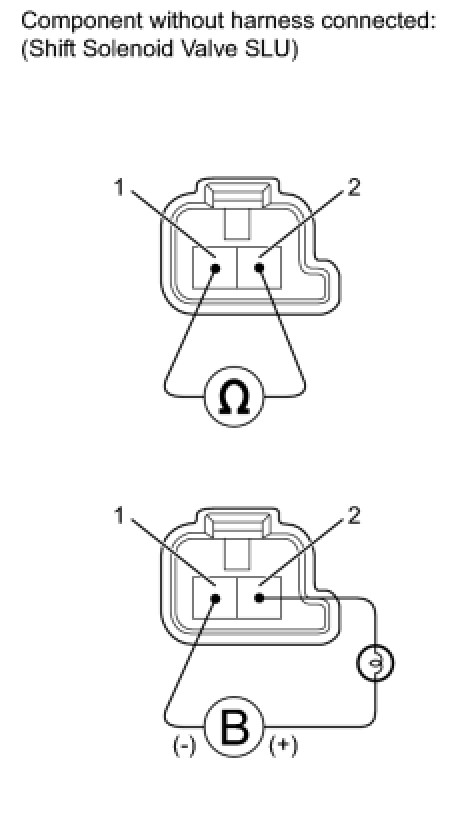

7. INSPECT SHIFT SOLENOID VALVE SLU

(a) Measure the resistance of the shift solenoid valve.





Standard resistance:





(a) If the resistance is not within the specified range, replace the shift solenoid valve SLU.

(b) Connect the battery's positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector. Then check that the valve moves and makes an operating noise.

OK:

Valve moves and makes operating noise.

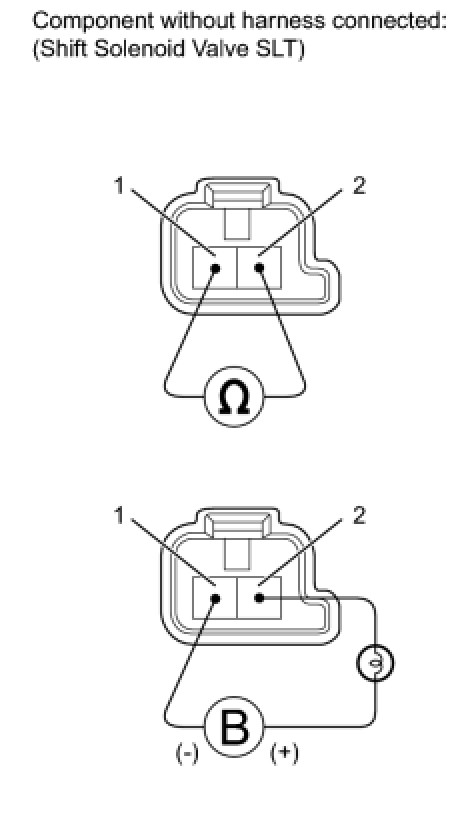

8. INSPECT SHIFT SOLENOID VALVE SLT

(a) Measure the resistance of the shift solenoid valve.





Standard resistance:





(a) If the resistance is not within the specified range, replace the shift solenoid valve SLT.

(b) Connect the battery's positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector. Then check that the valve moves and makes an operating noise.

OK:

Valve moves and makes operating noise.

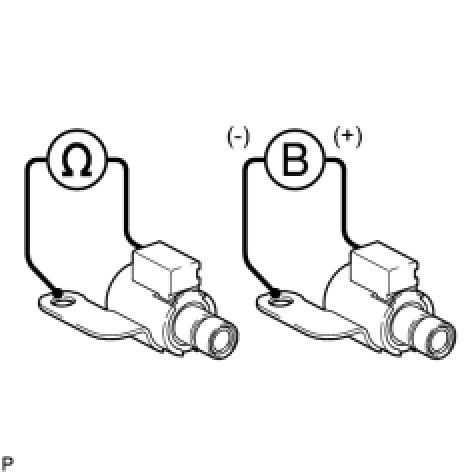

9. INSPECT SHIFT SOLENOID VALVE SR

(a) Measure the resistance of the shift solenoid valve.





Standard resistance:





(a) If the resistance is not within the specified range, replace the shift solenoid valve SR.

(b) Connect the battery's positive (+) lead to the terminal of the solenoid valve connector, and the negative (-) lead to the solenoid body. Then check that the valve moves and makes an operating noise.

OK:

Valve moves and makes operating noise.
