Reassembly

A760E AUTOMATIC TRANSMISSION: VALVE BODY ASSEMBLY: REASSEMBLY

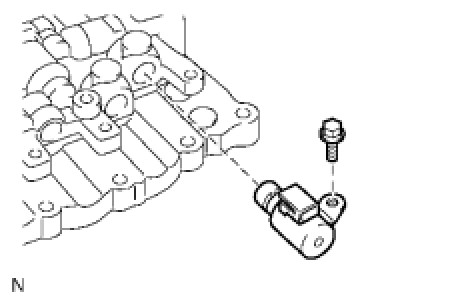

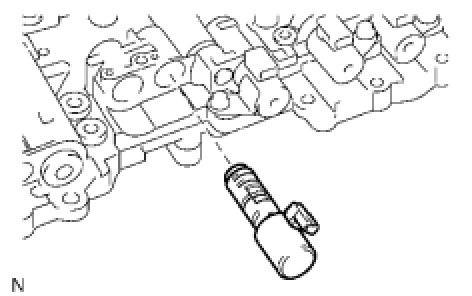

1. INSTALL SHIFT SOLENOID VALVE (S3)

(a) Install the shift solenoid valve with the bolt.





Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

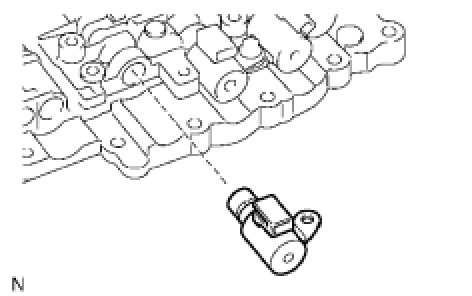

2. INSTALL SHIFT SOLENOID VALVE (S2)

(a) Install the shift solenoid valve.

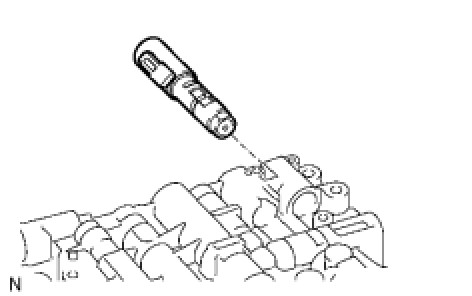

3. INSTALL SHIFT SOLENOID VALVE (S4)

(a) Install the shift solenoid valve with the bolt.





Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

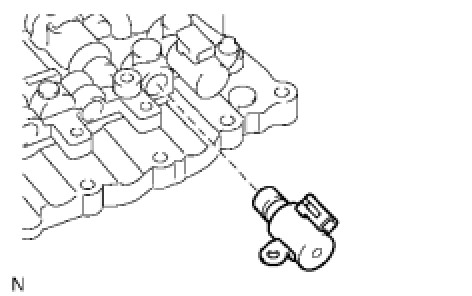

4. INSTALL SHIFT SOLENOID VALVE (S1)

(a) Install the shift solenoid valve.

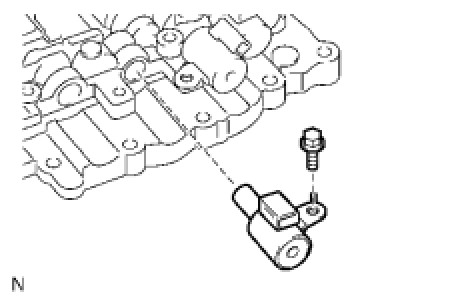

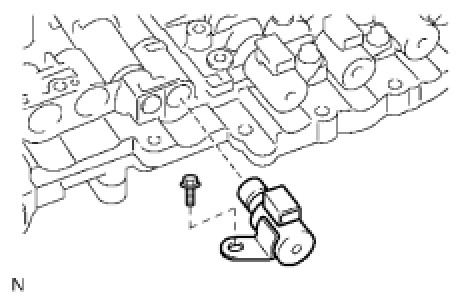

5. INSTALL SHIFT SOLENOID VALVE (SR)

(a) Install the shift solenoid valve with the bolt.





Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

6. INSTALL SHIFT SOLENOID VALVE (SL1)

(a) Install the shift solenoid valve.

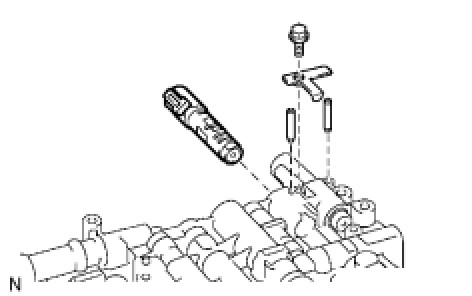

7. INSTALL SHIFT SOLENOID VALVE (SLT)

(a) Install the shift solenoid valve.





(b) Install the 2 straight pins and the lock plate with the bolt.

Torque : 6.4 Nm (65 kgf-cm, 57 in-lbf)

8. INSTALL SHIFT SOLENOID VALVE (SLU)

(a) Install the shift solenoid valve.

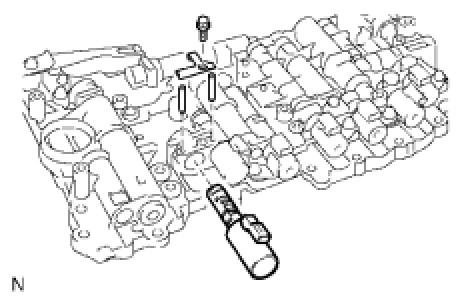

9. INSTALL SHIFT SOLENOID VALVE (SL2)

(a) Install the shift solenoid valve.





(b) Install the 2 straight pins and the lock plate with the bolt.

Torque : 6.4 Nm (65 kgf-cm, 57 in-lbf)
