Removal

AA80E AUTOMATIC TRANSMISSION: FLOOR SHIFT ASSEMBLY: REMOVAL

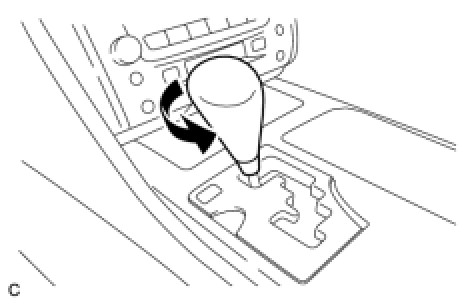

1. REMOVE SHIFT LEVER KNOB

(a) Turn the shift lever knob in the direction indicated by the arrow and remove it.





2. REMOVE FRONT CONSOLE UPPER PANEL GARNISH Removal

3. REMOVE UPPER CONSOLE PANEL ASSEMBLY Removal

4. REMOVE INSTRUMENT PANEL FINISH PANEL END RH Removal

5. REMOVE INSTRUMENT PANEL FINISH PANEL END LH Removal

6. REMOVE CONSOLE BOX PLATE Removal

7. REMOVE CONSOLE BOX REGISTER ASSEMBLY Removal

8. REMOVE CONSOLE BOX ASSEMBLY Removal

9. REMOVE NO. 2 CONSOLE BOX DUCT Removal

10. REMOVE FRONT FLOOR BRACE CENTER Removal

11. REMOVE REAR NO. 1 FLOOR PANEL BRACE Removal

12. REMOVE FRONT FLOOR COVER CENTER LH

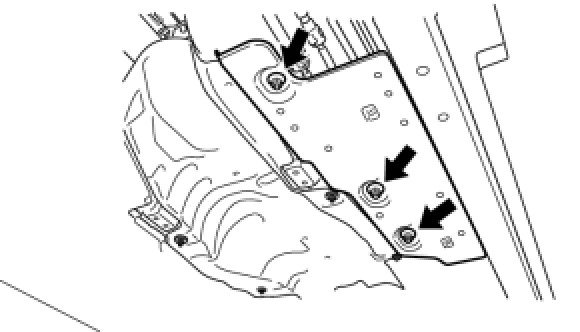

13. REMOVE FRONT FLOOR COVER CENTER RH

(a) Remove the 3 grommets and front floor cover center RH.





14. DISCONNECT HEATED OXYGEN SENSOR (for Bank 1 Sensor 2) Removal

15. DISCONNECT HEATED OXYGEN SENSOR (for Bank 2 Sensor 2) Removal

16. REMOVE FRONT EXHAUST PIPE ASSEMBLY Removal

17. REMOVE FRONT FLOOR NO. 1 HEAT INSULATOR Removal

18. REMOVE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY

(a) Remove the nut and separate the floor shift gear shifting rod sub-assembly.

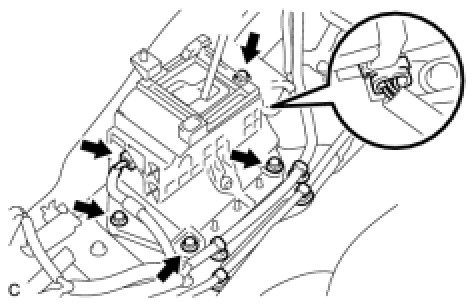

19. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY

(a) Disconnect the 2 connectors.





(b) Disconnect the 6 clamps.

(c) Remove the 4 bolts and floor shift assembly.
