Active Stabilizer Suspension System

SUSPENSION CONTROL: ACTIVE STABILIZER SUSPENSION SYSTEM: DATA LIST / ACTIVE TEST

1. READ DATA LIST

HINT
Using the Techstream DATA LIST allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to save time.

(a) Turn the engine switch off.

(b) Connect Techstream to the DLC3.

(c) Turn the engine switch on (IG) and turn the tester ON.

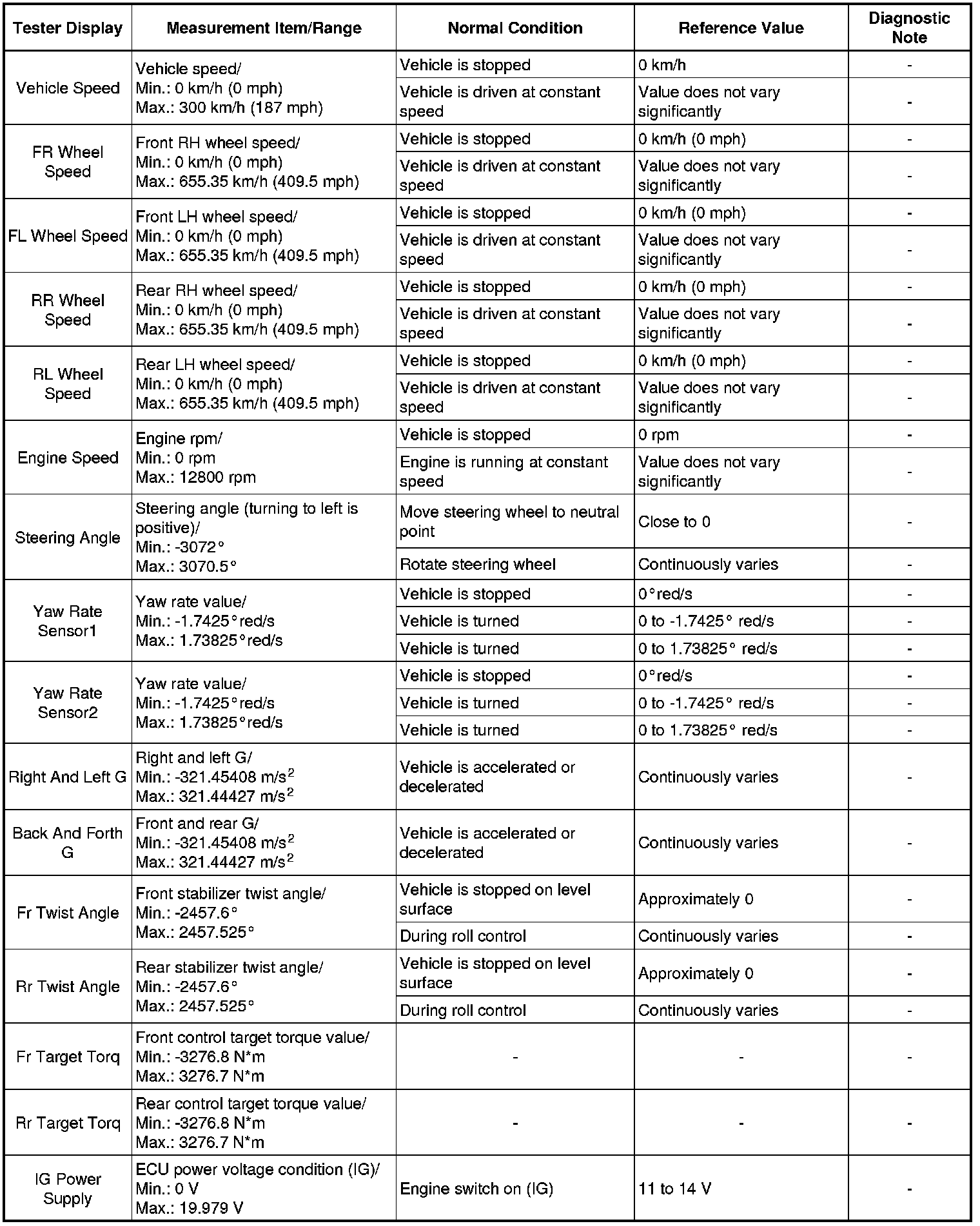

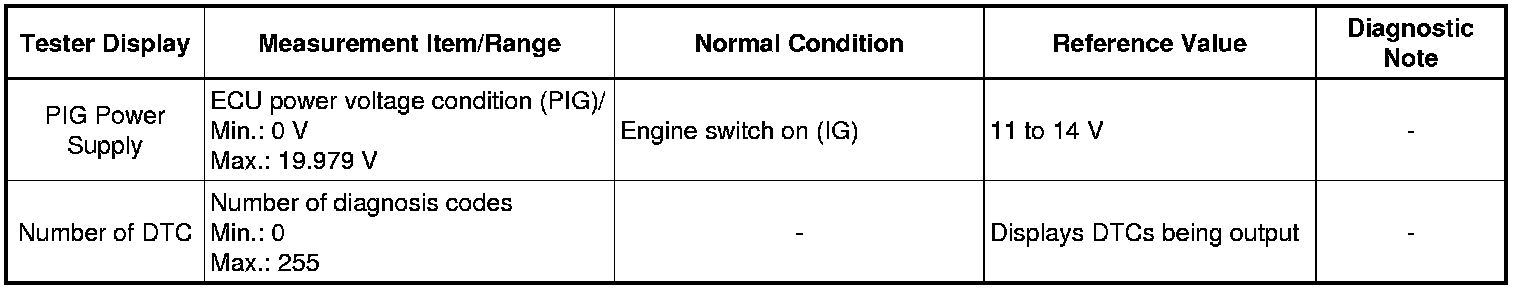

(d) Check the values by referring to the table below.
