Adaptive Variable Suspension System

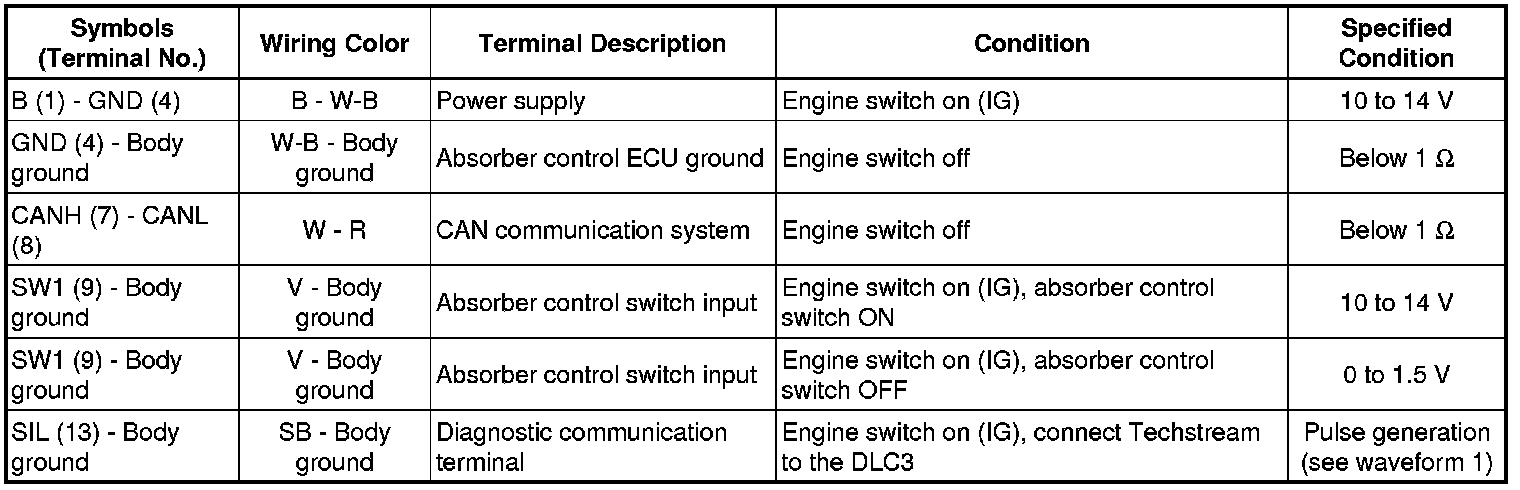

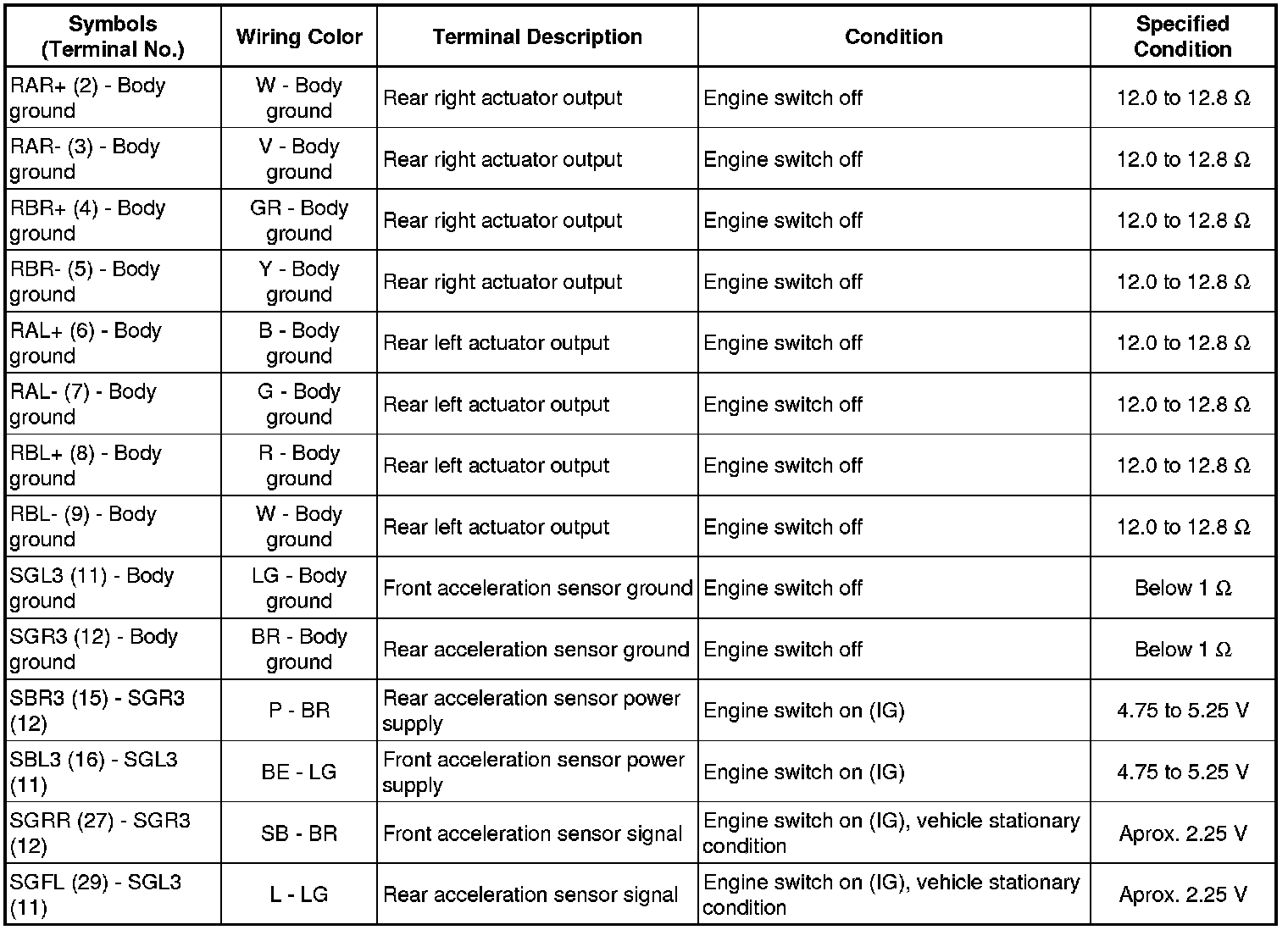

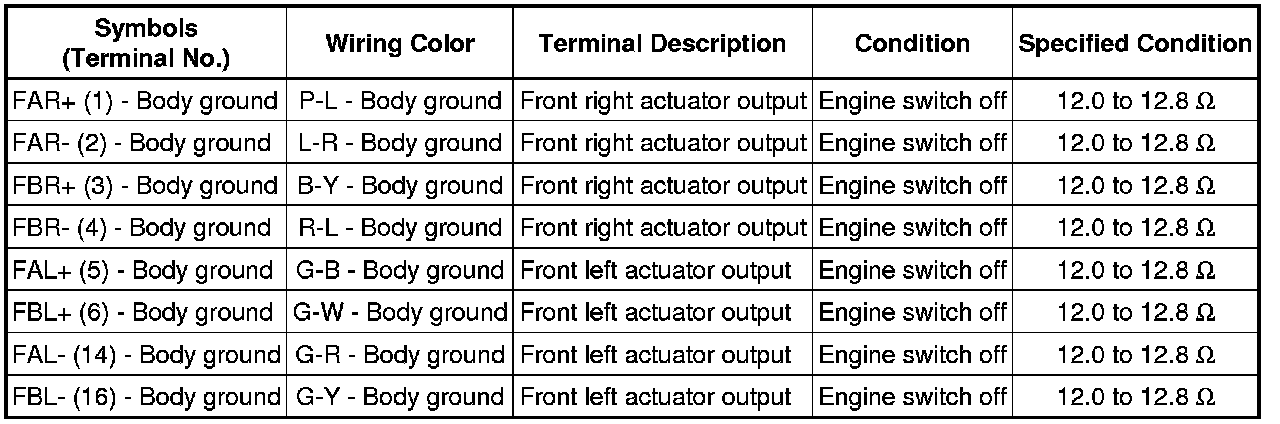

SUSPENSION CONTROL: ADAPTIVE VARIABLE SUSPENSION SYSTEM: TERMINALS OF ECU

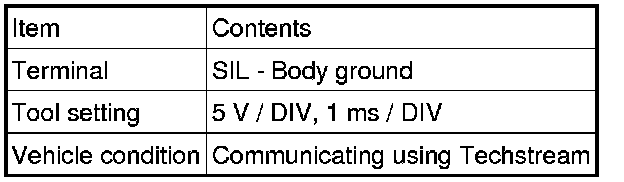

Waveform 1 (Reference)
