IG Power Source Circuit

STEERING COLUMN: POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM: IG Power Source Circuit
- IG Power Source Circuit

DESCRIPTION

When the engine switch is turned on (IG), the IG power source circuit supplies positive voltage to the multiplex tilt & telescopic ECU.

The multiplex tilt & telescopic ECU also receives engine switch signals via this circuit.

WIRING DIAGRAM







PROCEDURE

1. INSPECT FUSE (ECU-IG RH)

(a) Remove the ECU-IG RH fuse from the cowl side J/B RH.

(b) Check the continuity of the ECU-IG RH fuse.

OK:

Continuity

NG -- REPLACE FUSE
OK -- Continue to next step.

2. INSPECT MULTIPLEX TILT & TELESCOPIC ECU (IG TERMINAL VOLTAGE)

(a) Disconnect the K27 connector from the multiplex tilt & telescopic ECU.

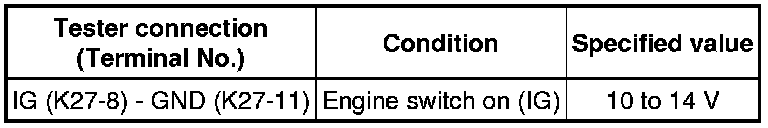

(b) Measure the voltage according to the value(s) in the table below.

Voltage:





OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
NG -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT & TELESCOPIC ECU - BODY GROUND)

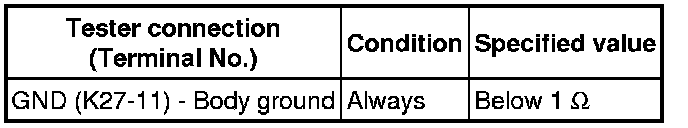

(a) Measure the resistance according to the value(s) in the table below.





Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

4. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT & TELESCOPIC ECU - COWL SIDE J/B RH)

(a) Measure the voltage according to the value(s) in the table below.





Voltage:





OK -- REPAIR OR REPLACE HARNESS OR CONNECTOR (MULTIPLEX TILT & TELESCOPIC ECU - COWL SIDE J/B RH)

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (COWL SIDE J/B RH - BATTERY)
