Actuator Power Source Circuit

STEERING COLUMN: POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM: Actuator Power Source Circuit
- Actuator Power Source Circuit

DESCRIPTION

This is the power source for the motors.

WIRING DIAGRAM







PROCEDURE

1. INSPECT FUSE (TI & TE)

(a) Remove the TI & TE fuse from the cowl side J/B RH.

(b) Check the continuity of the TI & TE fuse.

OK:

Continuity

NG -- REPLACE FUSE
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT & TELESCOPIC ECU - BATTERY)

(a) Disconnect the K27 connector from the multiplex tilt & telescopic ECU.

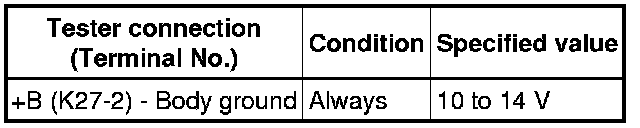

(b) Measure the voltage according to the value(s) in the table below.

Voltage:





NG -- CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT & TELESCOPIC ECU - COWL SIDE J/B RH)
OK -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT & TELESCOPIC ECU - BODY GROUND)

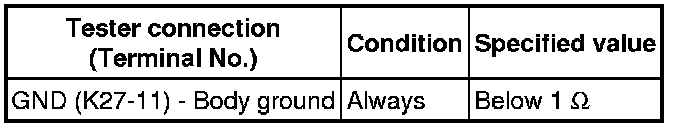

(a) Measure the resistance according to the value(s) in the table below.





Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

4. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT & TELESCOPIC ECU - COWL SIDE J/B RH)

(a) Disconnect the DA connector from the cowl side J/B RH.

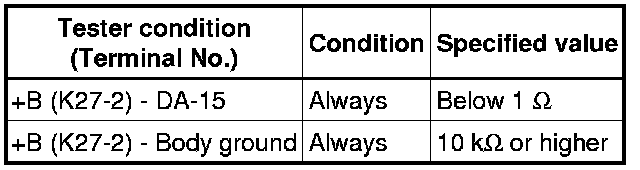

(b) Measure the resistance according to the value(s) in the table below.

Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (MULTIPLEX TILT & TELESCOPIC ECU - COWL SIDE J/B RH)

OK -- REPAIR OR REPLACE HARNESS OR CONNECTOR (BATTERY - COWL SIDE J/B RH)
