AA80E Automatic Transmission





AA80E AUTOMATIC TRANSMISSION: PARK / NEUTRAL POSITION SWITCH: INSPECTION

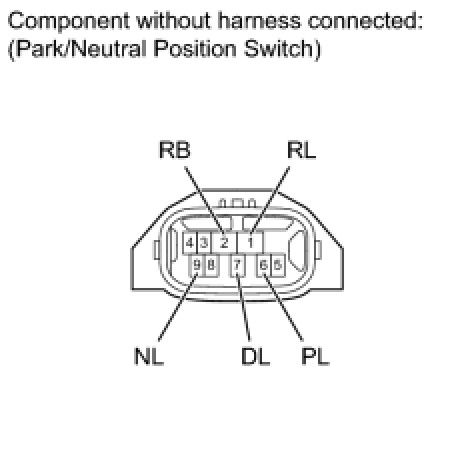

1. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY

(a) Measure the resistance of the switch when the shift lever is moved to each position.

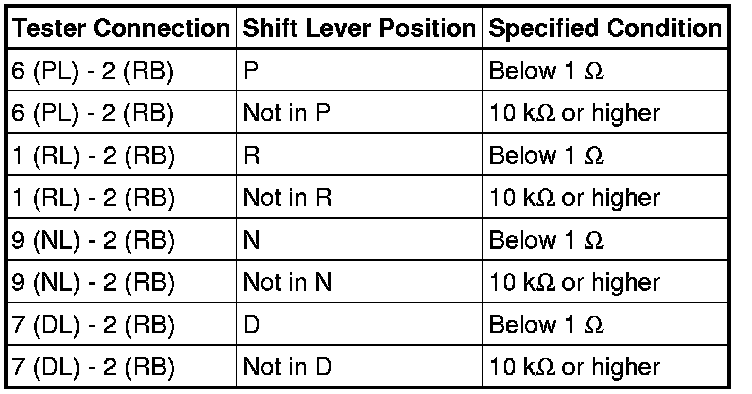

Standard resistance:
