Wire and Wire In Instrument Panel

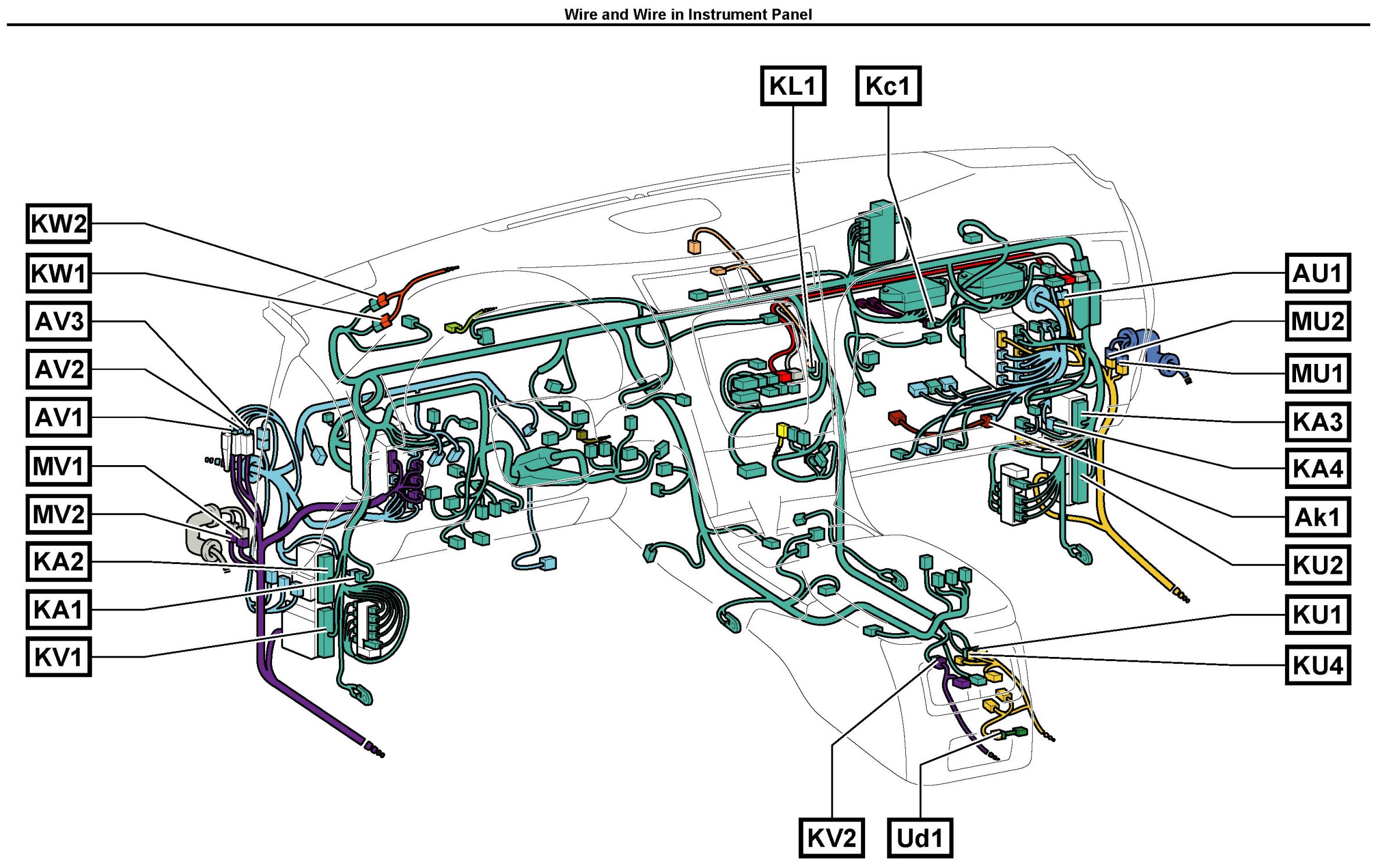

Ak1-Ud1 Position:

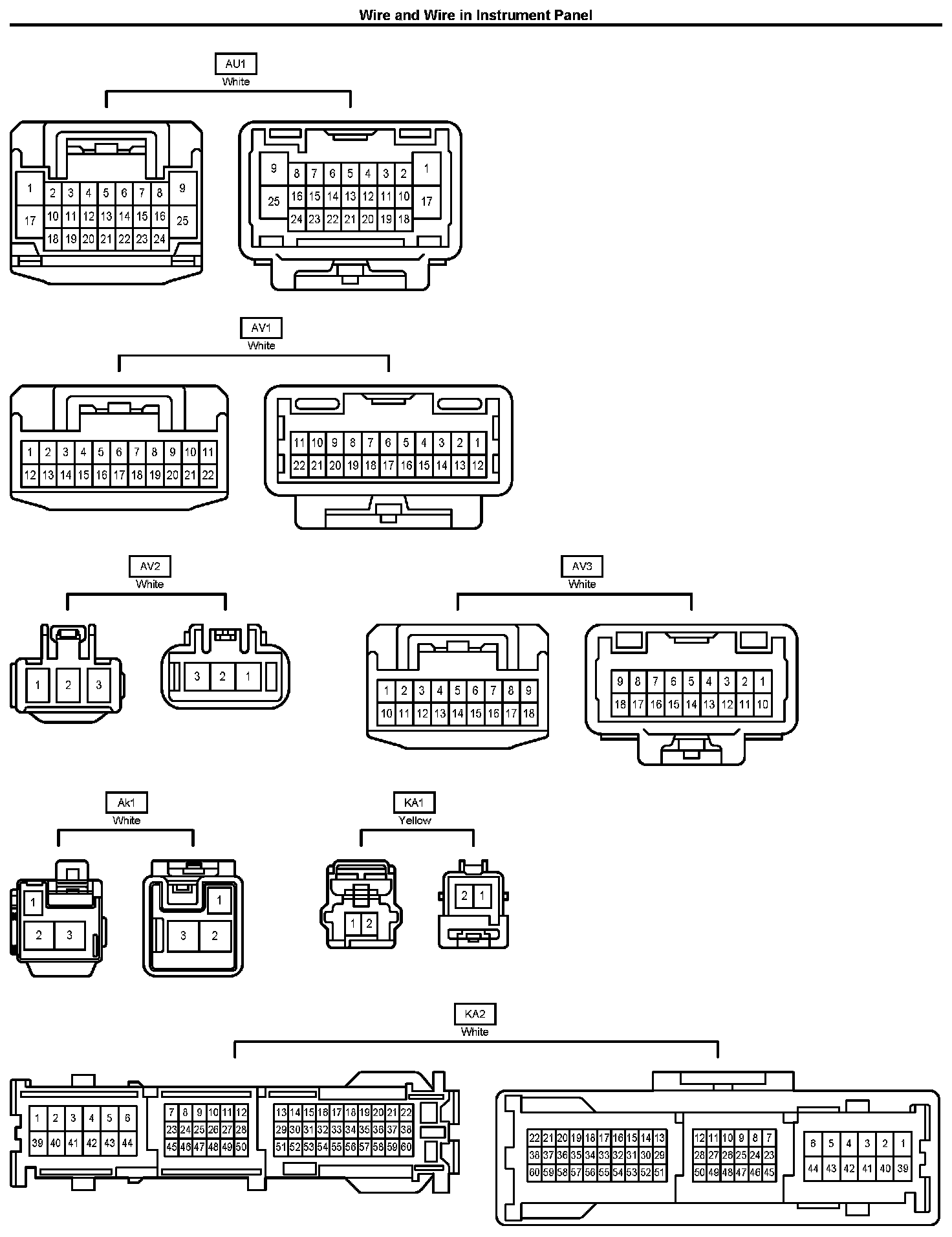

Ak1-KA2 Connector Views:

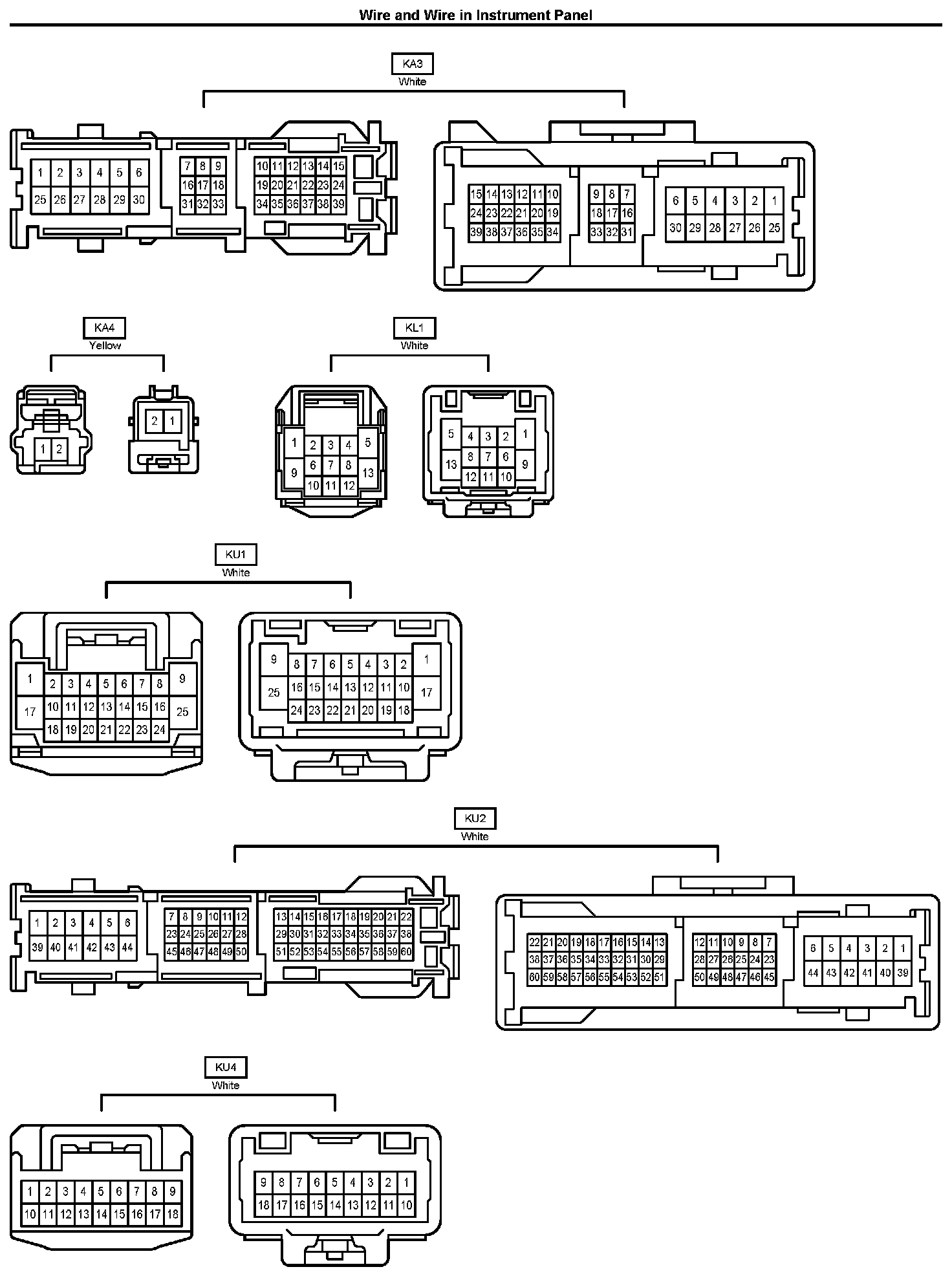

KA3-KU4 Connector Views:

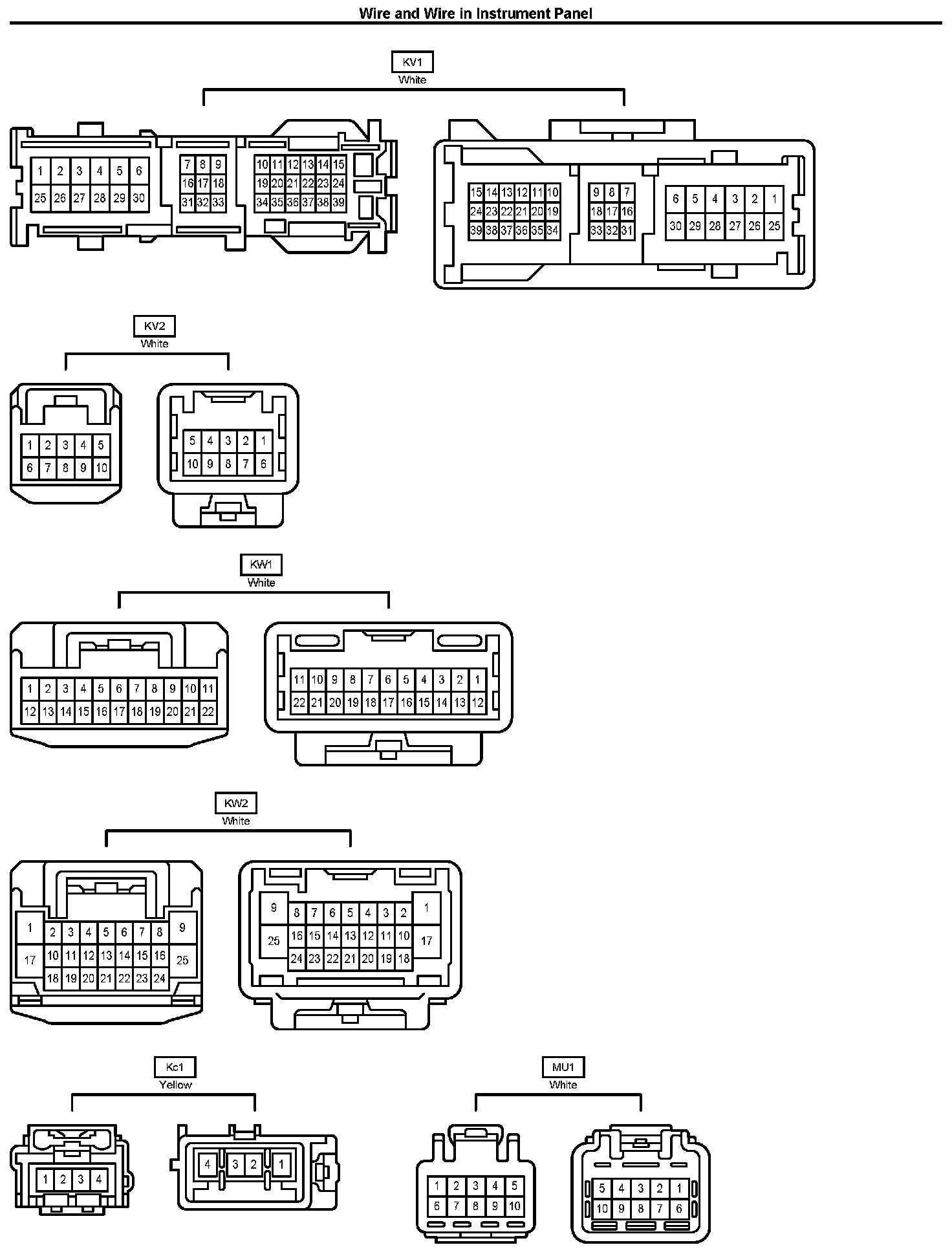

Kc1-MU1 Connector Views:

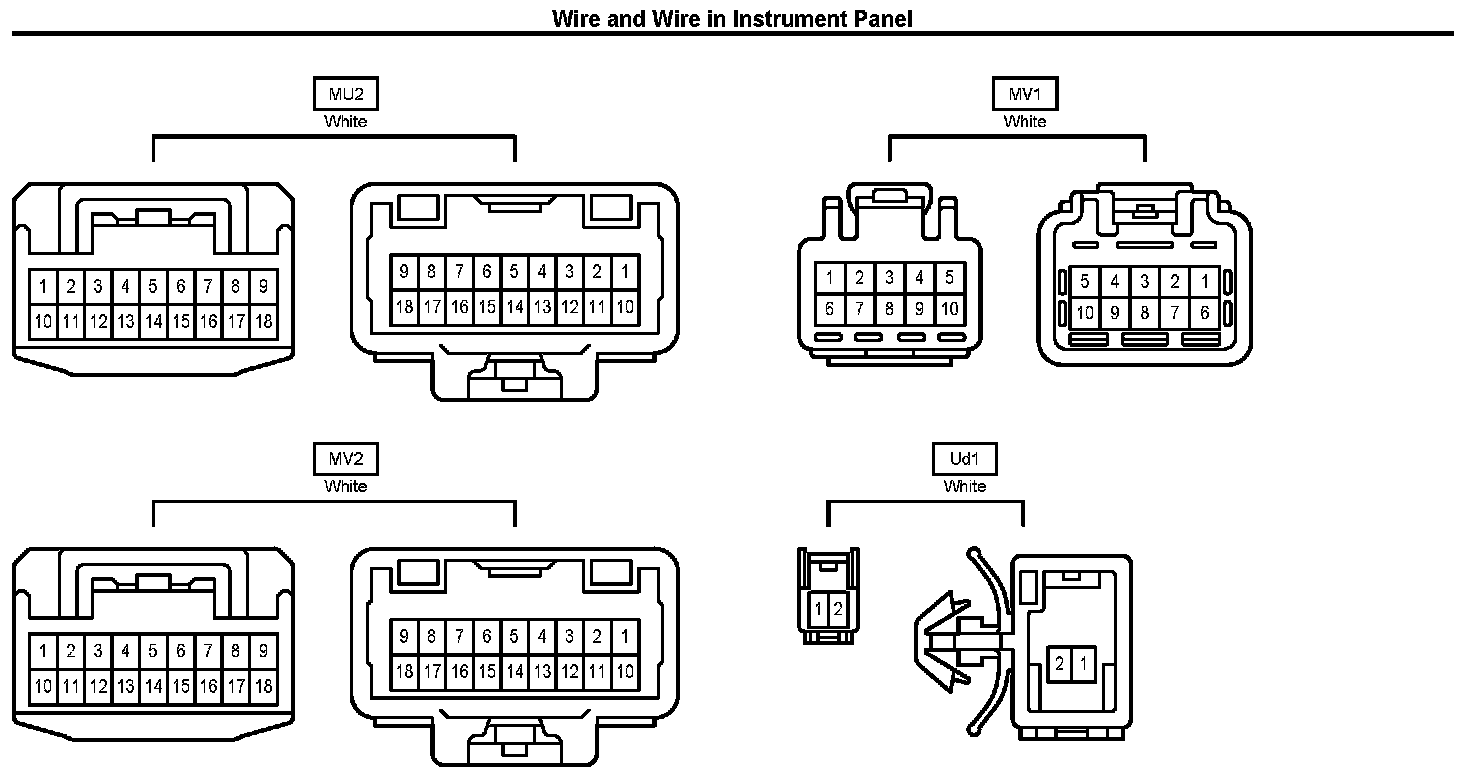

MU2-Ud1 Connector Views:
